DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

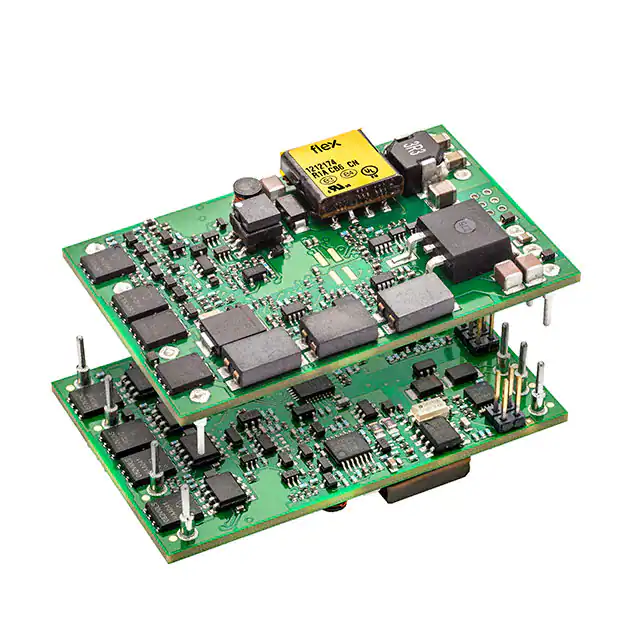

PIM4820BPDDC DC CONVERTER 0.85-7V 140W |
0 |
|
Veri Sayfası |
PIM4820 (960-1080W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 0.85 ~ 7V | - | - | - | 20A | 140 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™ | -40°C ~ 110°C (With Derating) | 99.20% | - | - | Through Hole | 2.28" L x 1.45" W x 0.42" H (57.9mm x 36.8mm x 10.7mm) | Quarter Brick | - | CB, CSA, IEC, TUV, UL | 62368-1 |
|
CQB75W8-36S28NRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 28V | - | - | - | 2.67A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S28N-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 28V | - | - | - | 2.67A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S48NRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 48V | - | - | - | 1.56A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S24N-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 3.12A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S15-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 15V | - | - | - | 5A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S48N-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 48V | - | - | - | 1.56A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S28-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 28V | - | - | - | 2.67A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S24NRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 3.12A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S15N-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 15V | - | - | - | 5A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S48-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 48V | - | - | - | 1.56A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S12-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 6.25A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S24-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 3.12A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S15NRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 15V | - | - | - | 5A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S12N-CRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 6.25A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
CQB75W8-36S12NRAILWAY BRICK DC-DC I/P:9-75VDC |
0 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 6.25A | 75 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
BCM352T110T300B00DC DC CONVERTER 11V 300W |
0 |
|
Veri Sayfası |
VI Chip® BCM® (300W) | Module | Tray | Active | Bus Converter Module | 1 | 330V | 365V | 11V | - | - | - | 28.5A | 300 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 95.5% | - | - | Through Hole | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
PXD30-12D05DC DC CONVERTER +/-5V 30W |
0 |
|
Veri Sayfası |
PXD (30W) | 6-DIP Module | Bulk | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 3A, 3A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | - | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
PXD30-12D12DC DC CONVERTER +/-12V 30W |
0 |
|
Veri Sayfası |
PXD (30W) | 6-DIP Module | Bulk | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | - | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
PXD30-24D05DC DC CONVERTER +/-5V 30W |
0 |
|
Veri Sayfası |
PXD (30W) | 6-DIP Module | Bulk | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 3A, 3A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | - | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
