DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VHB100W-Q24-S3R3DC DC CONVERTER 3.3V 66W |
0 |
|
Veri Sayfası |
VHB100W (100W) | 9-DIP Module | Box | Not For New Designs | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 20A | 66 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 81.5% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | UL | 60950-1 |
|
JCP4012D12DC DC CONVERTER +/-12V 43W |
0 |
|
Veri Sayfası |
JCP (40W) | 9-DIP Module | Bulk | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 1.8A, 1.8A | 43 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | - | - |
|
|
JCP4012D15DC DC CONVERTER +/-15V 42W |
0 |
|
Veri Sayfası |
JCP (40W) | 9-DIP Module | Bulk | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 1.4A, 1.4A | 42 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | - | - |
|
|
JCP4024D12DC DC CONVERTER +/-12V 43W |
0 |
|
Veri Sayfası |
JCP (40W) | 9-DIP Module | Bulk | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 1.8A, 1.8A | 43 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | - | - |
|
|
JCP4024D15DC DC CONVERTER +/-15V 42W |
0 |
|
Veri Sayfası |
JCP (40W) | 9-DIP Module | Bulk | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 1.4A, 1.4A | 42 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | - | - |
|
|
JCP4048D12DC DC CONVERTER +/-12V 43W |
0 |
|
Veri Sayfası |
JCP (40W) | 9-DIP Module | Bulk | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 1.8A, 1.8A | 43 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | - | - |
|
|
JCP4048D15DC DC CONVERTER +/-15V 42W |
0 |
|
Veri Sayfası |
JCP (40W) | 9-DIP Module | Bulk | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 1.4A, 1.4A | 42 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | - | - |
|
CN50B110-15DC-DC, RAILWAY, 51W, 43-160V, 15 |
0 |
|
Veri Sayfası |
CN-B110 (50W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 3.4A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 100°C | 87.5% | - | - | Through Hole | 2.30" L x 1.46" W x 0.50" H (58.3mm x 37.2mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV, UKCA | 50155; 62368-1 |
|
|
CN50B110-12DC-DC, RAILWAY, 50.4W, 43-160V, |
0 |
|
Veri Sayfası |
CN-B110 (50W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 4.2A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 100°C | 88% | - | - | Through Hole | 2.30" L x 1.46" W x 0.50" H (58.3mm x 37.2mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV, UKCA | 50155; 62368-1 |
|
|
CN50B110-48DC-DC, RAILWAY, 52.8W, 43-160V, |
0 |
|
Veri Sayfası |
CN-B110 (50W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 43V | 160V | 48V | - | - | - | 1.1A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 100°C | 87% | - | - | Through Hole | 2.30" L x 1.46" W x 0.50" H (58.3mm x 37.2mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV, UKCA | 50155; 62368-1 |
|
|
CN50B110-24DC-DC, RAILWAY, 50.4W, 43-160V, |
0 |
|
Veri Sayfası |
CN-B110 (50W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 2.1A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 100°C | 89% | - | - | Through Hole | 2.30" L x 1.46" W x 0.50" H (58.3mm x 37.2mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV, UKCA | 50155; 62368-1 |
|
|
CN50B110-5DC-DC, RAILWAY, 50W, 43-160V, 5V |
0 |
|
Veri Sayfası |
CN-B110 (50W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 10A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 100°C | 89.5% | - | - | Through Hole | 2.30" L x 1.46" W x 0.50" H (58.3mm x 37.2mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV, UKCA | 50155; 62368-1 |
|
|
JTA1548D02DUAL O/P 4:1 DC-DC CONVERTER, 15 |
0 |
|
Veri Sayfası |
JTA (15W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm) | - | Enable, Active High | CE, UKCA, UL | 60950-1 |
|
CBS502405DC DC CONVERTER 5V |
0 |
|
Veri Sayfası |
CBS (50W) | 13-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | - | - |
|

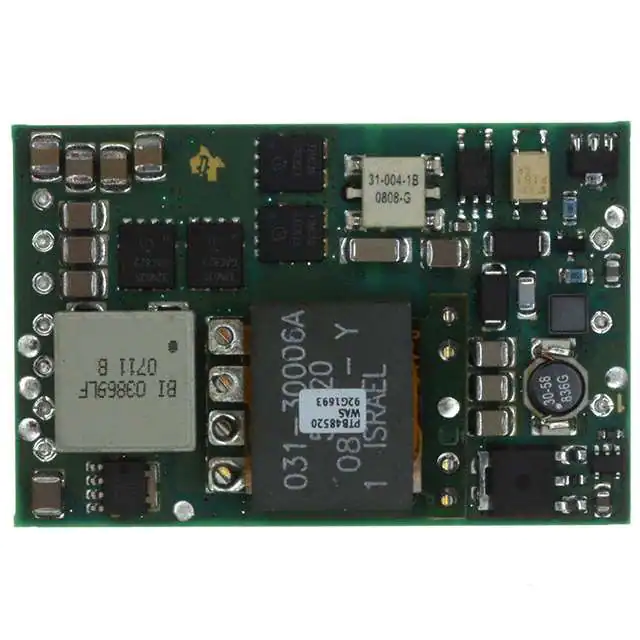

PTB48520WASDC DC CONVERTER 1.8-3.6V 90W |
0 |
|
Veri Sayfası |
PTB48520W | 10-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 1.8 ~ 3.6V | - | - | - | 25A | 90 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 91% | - | - | Surface Mount | 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm) | - | - | - | - |
|
UQQ-3.3/25-Q48NB-CDC DC CONVERTER 3.3V 82W |
0 |
|
Veri Sayfası |
UQQ | 8-DIP Module, 1/4 Brick | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 25A | 82 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|
VCD40-D12-T312DC DC CONVERTER 3.3V +/-12V 29W |
0 |
|
Veri Sayfası |
VCD40 (40W) | 9-DIP Module | Tube | Active | Isolated Module | 3 | 9V | 18V | 3.3V | 12V | -12V | - | 6A, 400mA, 400mA | 29 W | 1.5 kV | ITE (Commercial) | OTP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | UL | 60950-1 |
|
|
VCD40-D12-T315DC DC CONVERTER 3.3V +/-15V 29W |
0 |
|
Veri Sayfası |
VCD40 (40W) | 9-DIP Module | Tube | Active | Isolated Module | 3 | 9V | 18V | 3.3V | 15V | -15V | - | 6A, 300mA, 300mA | 29 W | 1.5 kV | ITE (Commercial) | OTP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | UL | 60950-1 |
|
|
VCD40-D12-T512DC DC CONVERTER 5V +/-12V 40W |
0 |
|
Veri Sayfası |
VCD40 (40W) | 9-DIP Module | Tube | Active | Isolated Module | 3 | 9V | 18V | 5V | 12V | -12V | - | 6A, 400mA, 400mA | 40 W | 1.5 kV | ITE (Commercial) | OTP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | UL | 60950-1 |
|
|
VCD40-D48-T312DC DC CONVERTER 3.3V +/-12V 29W |
0 |
|
Veri Sayfası |
VCD40 (40W) | 9-DIP Module | Tube | Active | Isolated Module | 3 | 36V | 72V | 3.3V | 12V | -12V | - | 6A, 400mA, 400mA | 29 W | 1.5 kV | ITE (Commercial) | OTP, OVP, SCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - | UL | 60950-1 |
