DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM1P-121515DZDC DC CONVERTER 2X15V 990MW |
400 |
|
Veri Sayfası |
AM1P-Z (1W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | 15V | - | - | 33mA, 33mA | 1 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) | - | - | CE | - |
|
|
AM1P-1203DZDC DC CONVERTER +/-3.3V 1W |
400 |
|
Veri Sayfası |
AM1P-Z (1W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | -3.3 ~ 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) | - | - | CE | - |
|
|
AM1P-120505DZDC DC CONVERTER 2X5V 1W |
400 |
|
Veri Sayfası |
AM1P-Z (1W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | 5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) | - | - | CE | - |
|
|
AM1P-120303DZDC DC CONVERTER 2X3.3V 1W |
400 |
|
Veri Sayfası |
AM1P-Z (1W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 3.3V | 3.3V | - | - | 152mA, 152mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) | - | - | CE | - |
|
|
AM1P-1212DZDC DC CONVERTER +/-12V 1.2W |
400 |
|
Veri Sayfası |
AM1P-Z (1W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | -12 ~ 12V | -12V | - | - | 50mA, 50mA | 1.2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) | - | - | CE | - |
|
|
AM1P-052424DZDC DC CONVERTER 2X24V 1.2W |
400 |
|
Veri Sayfası |
AM1P-Z (1W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 24V | 24V | - | - | 25mA, 25mA | 1.2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) | - | - | CE | - |
|
|
AM1P-121818DZDC DC CONVERTER 2X18V 1W |
400 |
|
Veri Sayfası |
AM1P-Z (1W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 18V | 18V | - | - | 28mA, 28mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) | - | - | CE | - |
|
NMK1209SACDC DC CONVERTER 9V 2W |
201 |
|
Veri Sayfası |
NMK (2W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm) | - | - | - | - |
|
UWE1205S-3WR3DC DC CONVERTER,3W,5VDC |
638 |
|
Veri Sayfası |
UWE_S-3WR3 (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 77% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | CE | - |
.jpg)
|
PDS1-S12-D12-M-TRDC DC CONVERTER +/-12V 1W |
619 |
|
Veri Sayfası |
PDS1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDS1-S5-D12-M-TRDC DC CONVERTER +/-12V 1W |
270 |
|
Veri Sayfası |
PDS1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
LOT_12-06R-PDC-DC STEP DOWN REGULATORS |
409 |
|
Veri Sayfası |
LOT_06R-X | 5-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.75 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 94% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.26" H (20.3mm x 11.4mm x 6.6mm) | - | - | - | - |
|
PDSE2-S12-S12-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
755 |
|
Veri Sayfası |
PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2.004 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE | 62368-1 |
|
|
PDSE2-S12-S15-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
530 |
|
Veri Sayfası |
PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 1.995 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE | 62368-1 |
|
|
PDSE2-S12-S24-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
423 |
|
Veri Sayfası |
PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 1.992 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE | 62368-1 |
|
|
PDSE2-S12-S9-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
255 |
|
Veri Sayfası |
PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 1.998 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE | 62368-1 |
|
PESE1-S24-S5-M-TRDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
285 |
|
Veri Sayfası |
PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S24-S24-M-TRDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
252 |
|
Veri Sayfası |
PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1.008 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
|
RAA2100404GLG#MD0DC DC CONVERTER 5V |
106 |
|
Veri Sayfası |
- | 10-FDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 5V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.8mm) | 10-DFN (3x3) | - | - | - |
|

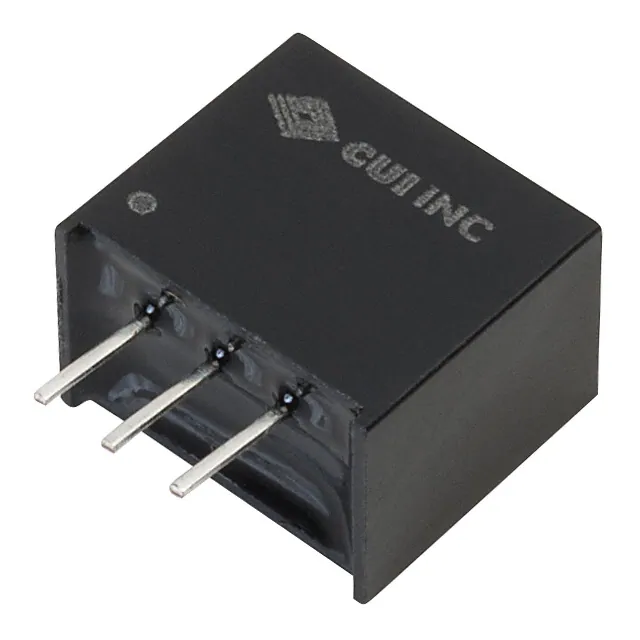

P7805-Q24-S5-SDC DC CONVERTER 5V 3W |
322 |
|
Veri Sayfası |
P7805-S | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 3 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 94% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | EN | 55024; 55032 Class A |
