DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSO-2405S/H3DC DC CONVERTER 5V 1W |
516 |
|
Veri Sayfası |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TEN 3-1222DC DC CONVERTER +/-12V 3W |
264 |
|
Veri Sayfası |
TEN 3 (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cCSAus | - |
|
DCR022405P-UDC DC CONVERTER 5V 2W |
2,445 |
|
Veri Sayfası |
DCR02 (2W) | 18-SMD Module, 10 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 70°C | - | - | - | Surface Mount | 0.90" L x 0.28" W x 0.21" H (22.9mm x 7.1mm x 5.3mm) | - | - | - | - |
|
LTM8023IV#PBFDC DC CONVERTER 0.8-10V |
1,286 |
|
Veri Sayfası |
µModule® | 50-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 10V | - | - | - | 2A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.11" H (11.3mm x 9.0mm x 2.8mm) | 50-LGA (11.25x9) | - | - | - |
|
LTM8048EY#PBFDC DC CONVERTER 2.5-13V 1.2-12V |
314 |
|
Veri Sayfası |
µModule® | 45-BBGA Module | Tray | Active | Isolated Module | 2 | 3.1V | 32V | 2.5 ~ 13V | 1.2 ~ 12V | - | - | 440mA, 300mA | - | 725 V | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.19" H (11.3mm x 9.0mm x 4.9mm) | 45-BGA (11.25x9) | - | - | - |
|
UDT020A0X3-SRZDC DC CONVERTER 0.5-5.5V |
1,030 |
|
Veri Sayfası |
MicroDLynx™ | 16-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 3V | 14.4V | 0.5 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Digital with Remote On/Off and UVLO | -40°C ~ 85°C | 95.2% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm) | - | - | - | - |
|
LTM4622IY#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
635 |
|
Veri Sayfası |
µModule® | 25-PowerBBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3.6V | 20V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 2.5A, 2.5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.10" H (6.3mm x 6.3mm x 2.4mm) | 25-BGA (6.25x6.25) | - | - | - |
|
RS-0505S/H3DC DC CONVERTER 5V 2W |
701 |
|
Veri Sayfası |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
LTM4702EY#PBF18 VIN, 8A SILENT SWITCHER UMODU |
118 |
|
Veri Sayfası |
µModule® | 49-BFBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 16V | 0.3 ~ 5.7V | - | - | - | 8A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.20" H (6.3mm x 6.3mm x 5.0mm) | 49-BGA (6.25x6.25) | - | - | - |
|
REM2-0505SDC DC CONVERTER 5V 2W |
128 |
|
Veri Sayfası |
MEDLINE REM2 (2W) | 8-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 5.2 kV | ITE (Commercial), Medical | OCP | -40°C ~ 95°C (With Derating) | 79% | - | - | Through Hole | 0.91" L x 0.31" W x 0.48" H (23.0mm x 8.0mm x 12.2mm) | - | - | CB, cURus | - |
|
LTM8083EY#PBF36VIN, 1.5A BUCK-BOOST UMODULE |
0 |
|
Veri Sayfası |
- | 49-FBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 36V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.10" H (6.3mm x 6.3mm x 2.4mm) | 49-BGA (6.25x6.25) | - | - | - |
|
LTM4658EV#PBFLOW VIN, HIGH EFFICIENCY 10A STE |
278 |
|
Veri Sayfası |
LTM®, uModule® | 25-BFLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.25V | 5.5V | 0.5 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | Adjustable Output, Load Sharing | -40°C ~ 125°C | - | - | - | Surface Mount | 0.16" L x 0.16" W x 0.17" H (4.0mm x 4.0mm x 4.3mm) | 25-LGA (4x4) | - | - | - |
|
RS3-2405D/H3DC DC CONVERTER +/-5V 3W |
199 |
|
Veri Sayfası |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-2412D/H3DC DC CONVERTER +/-12V 3W |
154 |
|
Veri Sayfası |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
LTM8025EV#PBFDC DC CONVERTER 0.8-24V |
0 |
|
Veri Sayfası |
µModule® | 70-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 24V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.17" H (15.0mm x 9.0mm x 4.3mm) | 70-LGA (15x9) | - | - | - |
|

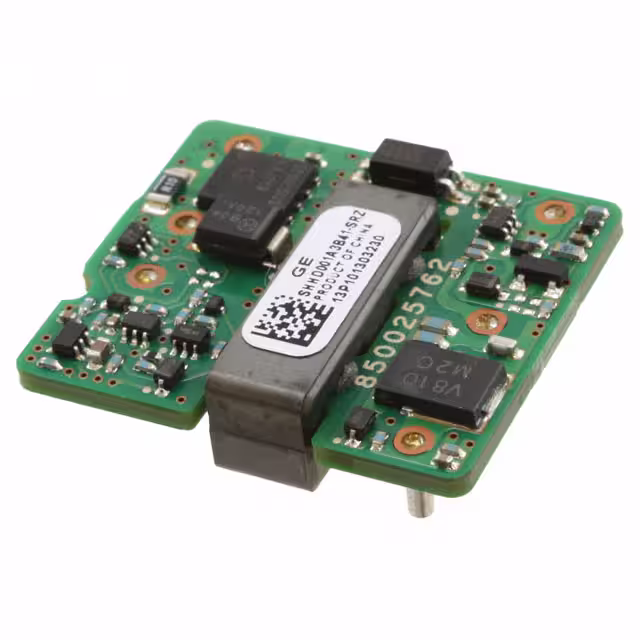

SHHD001A3B41-SRZDC DC CONVERTER 12V 15W |
699 |
|
Veri Sayfası |
Hammerhead™ SHHD001A3B (15W) | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.3A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Surface Mount | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|
DCR010505UDC DC CONVERTER 5V 1W |
764 |
|
Veri Sayfası |
DCR01 (1W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | - | - | - | Surface Mount | 0.70" L x 0.41" W x 0.10" H (17.9mm x 10.3mm x 2.5mm) | 12-SOP | Enable, Active High | - | - |
|

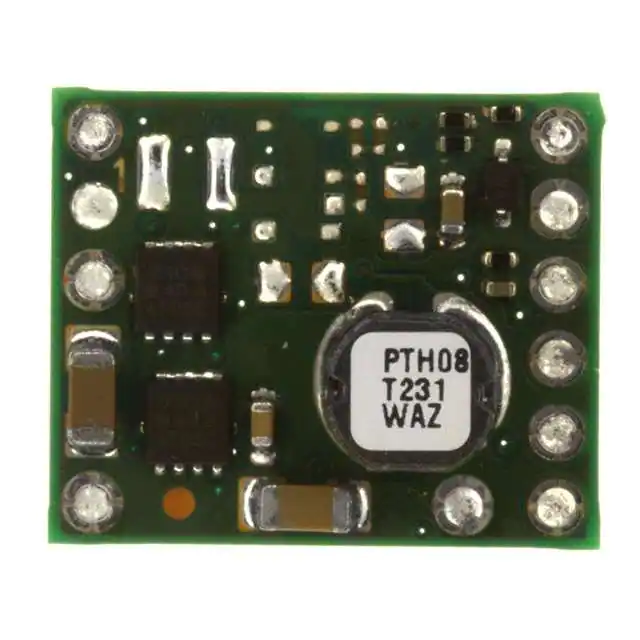

PTH08T231WAZDC DC CONVERTER 0.69-5.5V |
242 |
|
Veri Sayfası |
PTH08T231W | 10-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|
RHV2-0505S/R20DC DC CONVERTER 5V 2W |
296 |
|
Veri Sayfası |
ECONOLINE RHV2 (2W) | 16-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 20 kV | ITE (Commercial), Laboratory | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 1.77" L x 0.59" W x 0.67" H (45.0mm x 15.0mm x 17.0mm) | - | - | - | - |
|

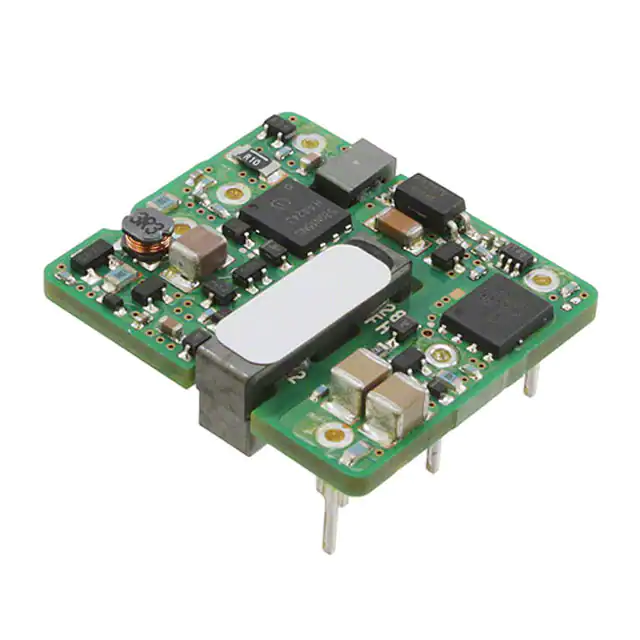

SHHD003A0A4ZDC DC CONVERTER 5V 15W |
8,792 |
|
Veri Sayfası |
Hammerhead™ SHHD003A0A (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | - | Enable, Active High | - | - |
