DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGJ2D121802SCDC DC CONVERTER 18V -2.5V 1.6W |
55 |
|
Veri Sayfası |
MGJ2 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 18V | -2.5V | - | - | 80mA, 80mA | 1.6 W | 5.2 kV | ITE (Commercial), Medical | - | -40°C ~ 100°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | cURus | - |
|
MEJ1S1205SCDC DC CONVERTER 5V 1W |
31 |
|
Veri Sayfası |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 74.5% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
TES 1-0522DC DC CONVERTER +/-12V 960MW |
35 |
|
Veri Sayfası |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 40mA, 40mA | 960 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
SRH05S12DC DC CONVERTER 12V |
87 |
|
Veri Sayfası |
SRH05 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 17V | 72V | 12V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | 3-SIP Module | - | - | - |
|
R1S-1505/HPDC DC CONVERTER 5V 1W |
40 |
|
Veri Sayfası |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
TPSM63604RDLR36-V INPUT, 16-V OUTPUT, 4-A SYN |
60 |
|
Veri Sayfası |
TPSM | 20-PowerBFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 16V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 95.6% | - | - | Surface Mount | 0.22" L x 0.20" W x 0.16" H (5.5mm x 5.0mm x 4.1mm) | 20-B3QFN (5x5.5) | Enable, Active High | - | - |
|
NME2415SCDC DC CONVERTER 15V 1W |
81 |
|
Veri Sayfası |
NME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm) | - | - | - | - |
|
|
AG9912-LPBDC DC CONVERTER 12V 10W |
98 |
|
Veri Sayfası |
Ag9900 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 12V | - | - | - | 833mA | 10 W | 1.5 kV | ITE (Commercial) | OVP, SCP | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.83" L x 0.55" W x 0.31" H (21.0mm x 14.0mm x 8.0mm) | - | - | - | 60950-1 |
|
IR0515SDC DC CONVERTER +/-15V 3W |
91 |
|
Veri Sayfası |
IR (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 100mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm) | - | - | - | - |
|
|
IR0512SDC DC CONVERTER +/-12V 3W |
88 |
|
Veri Sayfası |
IR (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 125mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm) | - | - | - | - |
|
NCS3S4805SCDC DC CONVERTER 5V 3W |
36 |
|
Veri Sayfası |
NCS3 (3W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm) | - | - | - | - |
|
|
NCS3S1203SCDC DC CONVERTER 3.3V 3W |
35 |
|
Veri Sayfası |
NCS3 (3W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm) | - | - | - | - |
|
NCS3S4812SCDC DC CONVERTER 12V 3W |
13 |
|
Veri Sayfası |
NCS3 (3W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm) | - | - | - | - |
|
FS1412-0600-ASDC DC CONVERTER 600MV |
39 |
|
Veri Sayfası |
µPOL™ micro-POL | 22-PowerLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 16V | 0.6 ~ 1.8V | - | - | - | 12A | - | - | ITE (Commercial) | Adjustable Output, I2C Interface, Load Sharing, PMBus™ | -40°C ~ 125°C | - | - | - | Surface Mount | 0.23" L x 0.19" W x 0.06" H (5.8mm x 4.9mm x 1.6mm) | 22-LGA-SiP (5.8x4.9) | - | - | - |
|

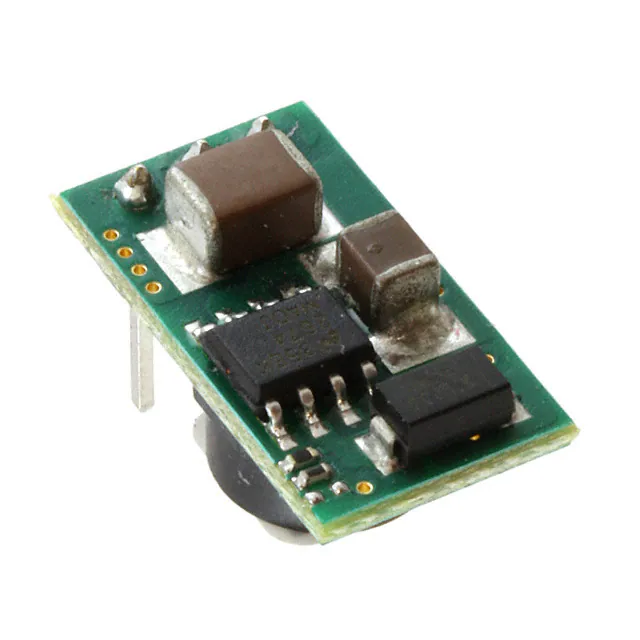

7805SRH-CDC DC CONVERTER 5V 3W |
92 |
|
Veri Sayfası |
78SR | 3-SIP Module | Box | Active | Linear Regulator Replacement | 1 | 7.5V | 36V | 5V | - | - | - | 500mA | 3 W | - | ITE (Commercial) | SCP | -40°C ~ 70°C | 95% | - | - | Through Hole | 0.75" L x 0.41" W x 0.37" H (19.1mm x 10.4mm x 9.3mm) | - | - | - | - |
|
MEV3S0505SCDC DC CONVERTER 5V 3W |
48 |
|
Veri Sayfası |
MEV3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
MYMGK1R820ERSR-H20A, NON-ISOLATED POL DC/DC CONV |
43 |
|
Veri Sayfası |
MonoBlock MYMGK | 37-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 15V | 0.7 ~ 1.8V | - | - | - | 20A | 36 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 87.8% | - | - | Surface Mount | 0.41" L x 0.35" W x 0.22" H (10.5mm x 9.0mm x 5.6mm) | - | Enable, Active High | - | - |
|
DPBW06F-05DC DC CONVERTER +/-5V 6W |
30 |
|
Veri Sayfası |
DPBW06 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
CC3-2405SR-EDC DC CONVERTER 5V 3W |
80 |
|
Veri Sayfası |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
NML0505SCDC DC CONVERTER 5V 2W |
73 |
|
Veri Sayfası |
NML (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.55" L x 0.30" W x 0.39" H (14.0mm x 7.6mm x 9.9mm) | - | - | - | - |
