DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCK1512S05DC DC CONVERTER 5V 15W |
17 |
|
Veri Sayfası |
JCK (15W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
EC4BU-05D12DC DC CONVERTER +/-12V 10W |
12 |
|
Veri Sayfası |
EC4BU (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 4.7V | 9V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
TEL 10-1210DC DC CONVERTER 3.3V 8.9W |
16 |
|
Veri Sayfası |
TEL 10 (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 2.7A | 8.9 W | 1.8 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 78°C | 79% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | cURus | - |
|
TEL 15-2411NULTRA COMPACT 15 WATT CONVERTER |
25 |
|
Veri Sayfası |
TEL 15N (15W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5.1V | - | - | - | 2.94A | 15 W | 1.5 kV | ITE (Commercial) | Baseplate | -40°C ~ 80°C | 86% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | 62368-1 |
|
|
TEL 15-1215NULTRA COMPACT 15 WATT CONVERTER |
11 |
|
Veri Sayfası |
TEL 15N (15W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 625mA | 15 W | 1.5 kV | ITE (Commercial) | Baseplate | -40°C ~ 80°C | 87% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | 62368-1 |
|
|
TEL 15-4815NULTRA COMPACT 15 WATT CONVERTER |
8 |
|
Veri Sayfası |
TEL 15N (15W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 625mA | 15 W | 1.5 kV | ITE (Commercial) | Baseplate | -40°C ~ 80°C | 87% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | 62368-1 |
|
EC4BE14DC DC CONVERTER +/-12V 10W |
12 |
|
Veri Sayfası |
EC4BE (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 415mA, 415mA | 10 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
PTH05T210WADDC DC CONVERTER 0.7-3.6V |
50 |
|
Veri Sayfası |
PTH05T210W | 14-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.7 ~ 3.6V | - | - | - | 30A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 1.37" L x 0.62" W x 0.34" H (34.8mm x 15.8mm x 8.5mm) | - | - | - | - |
|

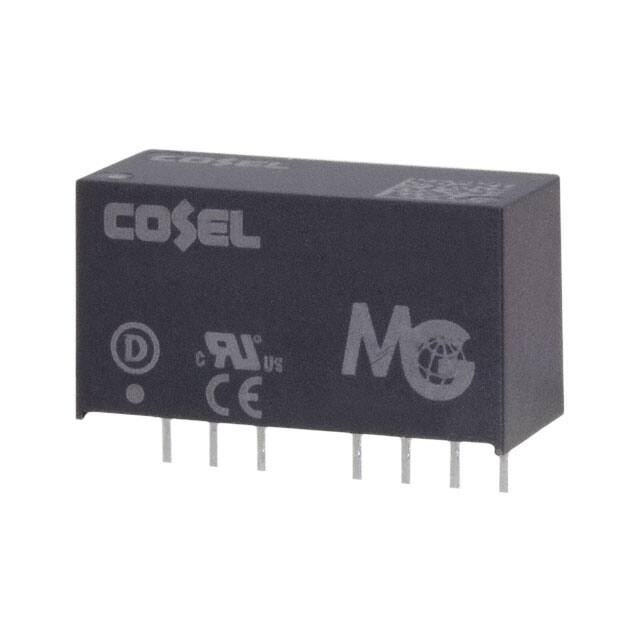

MGXW62412DC DC CONVERTER +/-12V 6W |
11 |
|
Veri Sayfası |
MGX (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 6V | 60V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | Enable, Active Low | CE, cURus, DEMKO | - |
|
|
R5M-2415S/SMD5W DC/DC-CONVERTER 'ECONOLINE' S |
28 |
|
Veri Sayfası |
R5M (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 333mA | 4.995 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
JCM1512S15DC DC CONVERTER 15V 15W |
70 |
|
Veri Sayfası |
JCM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 1A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | - | 62368-1 |
|
|
JCM1524S15DC DC CONVERTER 15V 15W |
20 |
|
Veri Sayfası |
JCM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | - | 62368-1 |
|
TEL 12-2422WI12 WATT DC/DC CONVERTER, INDUSTR |
15 |
|
Veri Sayfası |
TEL 12WI (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 500mA, 500mA | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | - |
|
|
EC4BU-12D12DC DC CONVERTER +/-12V 10W |
14 |
|
Veri Sayfası |
EC4BU (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
EC4BU-05D15DC DC CONVERTER +/-15V 10W |
9 |
|
Veri Sayfası |
EC4BU (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 4.7V | 9V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
TDR 3-1211SMDC DC CONVERTER 5V 3W |
57 |
|
Veri Sayfası |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
TDR 3-1212SMDC DC CONVERTER 12V 3W |
22 |
|
Veri Sayfası |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
TDR 3-0512SMDC DC CONVERTER 12V 3W |
14 |
|
Veri Sayfası |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
TMR 6-4822WIRDC DC CONVERTER +/-12V 6W |
10 |
|
Veri Sayfası |
TMR 6WIR (6W) | 8-SIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
|
TMR 6-4821WIRDC DC CONVERTER +/-5V 6W |
8 |
|
Veri Sayfası |
TMR 6WIR (6W) | 8-SIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
