DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRS1-12-S12-SDC-DC ISOLATED, 1W, 10.8~13.2 VD |
82 |
|
Veri Sayfası |
DRS1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | cURus | 62368-1 |
|
|
DRS1-5-S3-SDC-DC ISOLATED, 1W, 4.5~5.5 VDC |
82 |
|
Veri Sayfası |
DRS1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 74% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | cURus | 62368-1 |
|
|
DRS1-12-S15-SDC-DC ISOLATED, 1W, 10.8~13.2 VD |
82 |
|
Veri Sayfası |
DRS1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 81% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | cURus | 62368-1 |
|
|
DRS1-5-S5-SDC-DC ISOLATED, 1W, 4.5~5.5 VDC |
82 |
|
Veri Sayfası |
DRS1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | cURus | 62368-1 |
|
|
DRS1-5-S15-SDC-DC ISOLATED, 1W, 4.5~5.5 VDC |
82 |
|
Veri Sayfası |
DRS1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 83% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | cURus | 62368-1 |
|
|
DRS1-24-S5-SDC-DC ISOLATED, 1W, 21.6~26.4 VD |
82 |
|
Veri Sayfası |
DRS1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | cURus | 62368-1 |
|
|
DRS1-12-S5-SDC-DC ISOLATED, 1W, 10.8~13.2 VD |
82 |
|
Veri Sayfası |
DRS1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | cURus | 62368-1 |
|
|
DRS1-5-S12-SDC-DC ISOLATED, 1W, 4.5~5.5 VDC |
67 |
|
Veri Sayfası |
DRS1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | cURus | 62368-1 |
|
|
DRS1-3-S5-SDC-DC ISOLATED, 1W, 2.97~3.63 VD |
62 |
|
Veri Sayfası |
DRS1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 76% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | cURus | 62368-1 |
|
|
RD7-24D103RDC-DC CONVERTER, ISOLATED MODULE |
98 |
|
Veri Sayfası |
- | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 10V | -10V | - | - | 150mA, 150mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
DETN02M-05NDC DC CONVERTER +/-5V 2W |
42 |
|
Veri Sayfası |
DETN02-N (2W) | 12-SMD Module, 10 Leads | Bulk | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.60" L x 0.43" W x 0.36" H (15.2mm x 10.9mm x 9.1mm) | - | - | CE, EAC, UKCA | - |
|
RM-3.309SDC DC CONVERTER 9V 250MW |
37 |
|
Veri Sayfası |
ECONOLINE RM (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 9V | - | - | - | 28mA | 250 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
R2SX-2415/H-TRAYDC DC CONVERTER 15V 2W |
30 |
|
Veri Sayfası |
ECONOLINE R2SX (2W) | 10-SMD Module, 6 Leads | Tray | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial) | OCP | -40°C ~ 100°C (With Derating) | 85% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.31" H (15.2mm x 10.7mm x 8.0mm) | - | - | CB, cURus | - |
|
|
3S7B_2424D3UPDC-DC INDUSTRIAL |
100 |
|
Veri Sayfası |
3S7B_3UP (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 22V | 26V | 24V | -24V | - | - | 62.5mA, 62.5mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | - | - |
|
|
RD7-24D153R3DC-DC CONVERTER, ISOLATED MODULE |
82 |
|
Veri Sayfası |
RD7-3W (3W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
RD7-12D153R3DC-DC CONVERTER, ISOLATED MODULE |
65 |
|
Veri Sayfası |
RD7-3W (3W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|

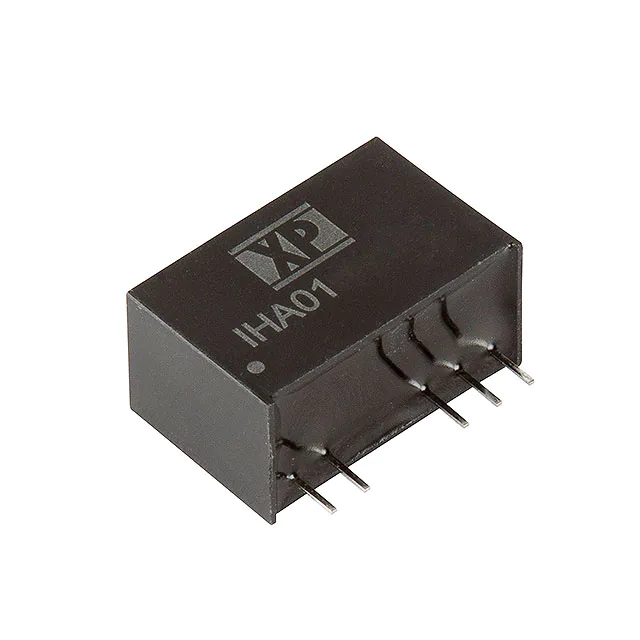

IHA0109S05DC DC CONVERTER 5V 1W |
56 |
|
Veri Sayfası |
IHA01 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 8.1V | 9.9V | 5V | - | - | - | 200mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 73% | - | - | Through Hole | 0.77" L x 0.49" W x 0.47" H (19.5mm x 12.5mm x 12.0mm) | - | - | - | - |
|
|
IHA0115S12DC DC CONVERTER 12V 1W |
36 |
|
Veri Sayfası |
IHA01 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 83mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.49" W x 0.47" H (19.5mm x 12.5mm x 12.0mm) | - | - | - | - |
|
ITB2415SDC DC CONVERTER 15V 1W |
27 |
|
Veri Sayfası |
ITB (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66.7mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
MTC1S2403MC-R7DC DC CONVERTER 3.3V 1W |
47 |
|
Veri Sayfası |
MTC1 (1W) | 6-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 100°C | 75.5% | - | - | Surface Mount | 0.59" L x 0.56" W x 0.44" H (15.0mm x 14.2mm x 11.2mm) | - | - | - | - |
