Güç Transformörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Voltaj - Birincil | Voltaj - İkincil (Tam Yük) | Akım - Çıkış (Maksimum) | Birincil Sarım(lar) | İkincil Sarım(lar) | Orta Çıkış (Center Tap) | Güç - Maksimum | Montaj Türü | Sonlandırma Stili | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Voltaj - Yalıtım | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
161H20PWR XFMR LAMINATED 24VA TH |
19 |
|
Veri Sayfası |
161 | Bulk | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 2.4A, Series 1.2A | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.8 lb (362.87 g) |
|

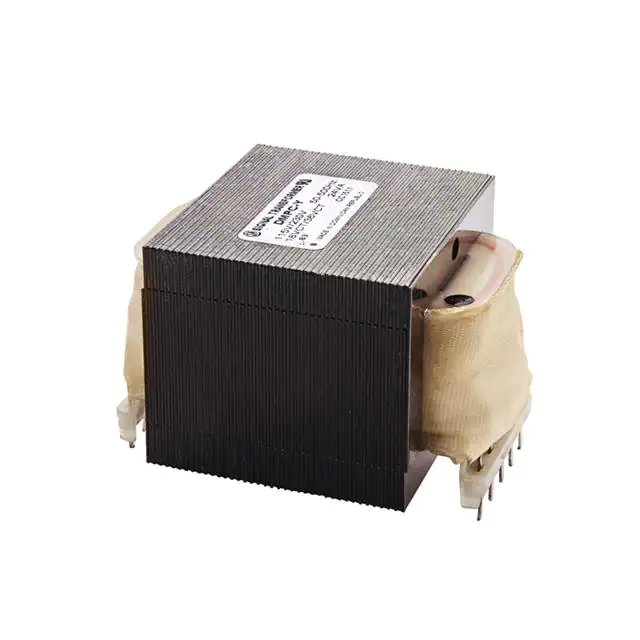

DMPC-Y-15PWR XFMR LAMINATED 24VA TH |
90 |
|
Veri Sayfası |
DMPC | Bulk | Active | Laminated Core | 115V, 230V | 5V, ±15V | Parallel 360mA, Series 130mA | Dual | Dual | Yes | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.90mm | 1500Vrms | 0.75 lb (340.19 g) |
|
MPC-Y-12PWR XFMR LAMINATED 24VA TH |
35 |
|
Veri Sayfası |
MPC | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 12V | Parallel 835mA, Series 150mA | Single | Dual | Yes | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.90mm | 1500Vrms | 0.75 lb (340.19 g) |
|
62020PWR XFMR TOROIDAL 5VA CHAS MT |
39 |
|
Veri Sayfası |
Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 714mA, Series 357mA | Dual | Dual | No | 5VA | Chassis Mount | Wire Leads | - | 18.00mm | 4000Vrms | 0.254 lb (115.21 g) |
|
162J48PWR XFMR LAMINATED 36VA TH |
6 |
|
Veri Sayfası |
162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 1.5A, Series 750mA | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
229C20PWR XFMR SEMI-TORO 24VA TH |
10 |
|
Veri Sayfası |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 72.90mm W | 31.75mm | 1750Vrms | 0.92 lb (417.3 g) |
|
186E28PWR XFMR LAMINATED 56VA CHAS MT |
11 |
|
Veri Sayfası |
186 | Box | Active | Laminated Core | 115V, 230V | 28V | 2A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
|
186E16PWR XFMR LAMINATED 56VA CHAS MT |
6 |
|
Veri Sayfası |
186 | Box | Active | Laminated Core | 115V, 230V | 16V | 3.5A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
PL56-20-130BPWR XFMR LAMINATED 56VA TH |
95 |
|
Veri Sayfası |
PL56-xx-130B | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 64.00mm W | 48.50mm | 3500Vrms | - |
|
166G50PWR XFMR LAMINATED 25VA CHAS MT |
8 |
|
Veri Sayfası |
166 | Bulk | Active | Laminated Core | 115V | 50V | 500mA | Single | Single | Yes | 25VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 50.80mm | 2000Vrms | 1 lb (453.59 g) |
|

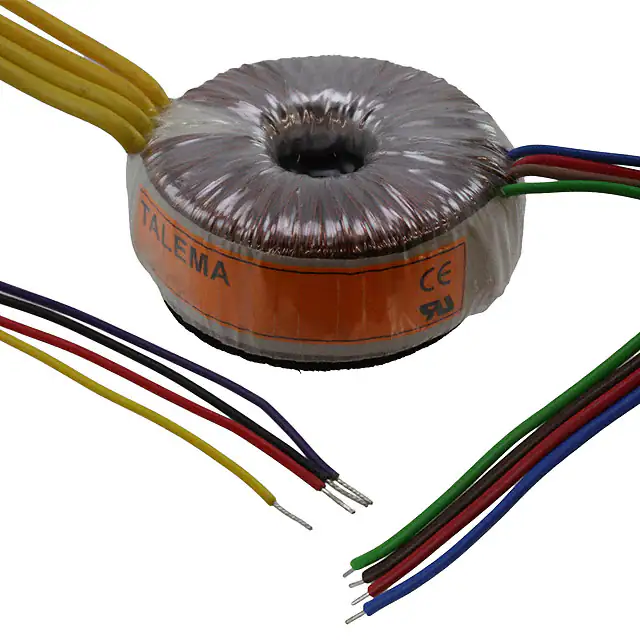

62033PWR XFMR TOROIDAL 7VA CHAS MT |
98 |
|
Veri Sayfası |
Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 466mA, Series 233mA | Dual | Dual | No | 7VA | Chassis Mount | Wire Leads | - | - | 4000Vrms | 0.32 lb (145.15 g) |
|
A41-80-16PWR XFMR LAMINATED 80VA CHAS MT |
76 |
|
Veri Sayfası |
All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 10A, Series 5A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
183K28PWR XFMR LAMINATED 56VA TH |
10 |
|
Veri Sayfası |
183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 4A, Series 2A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|

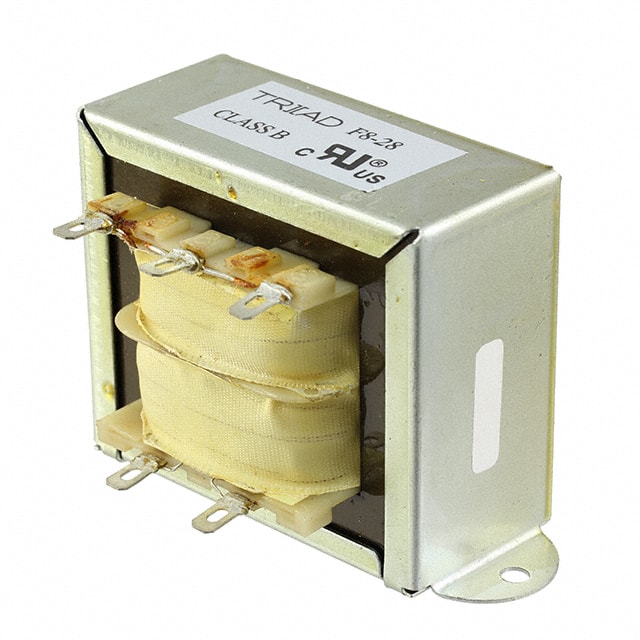

F8-28PWR XFMR LAMINATED 100VA CHAS MT |
13 |
|
Veri Sayfası |
Quick Pack | Box | Active | Laminated Core | 115V | 28V | 3.6A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

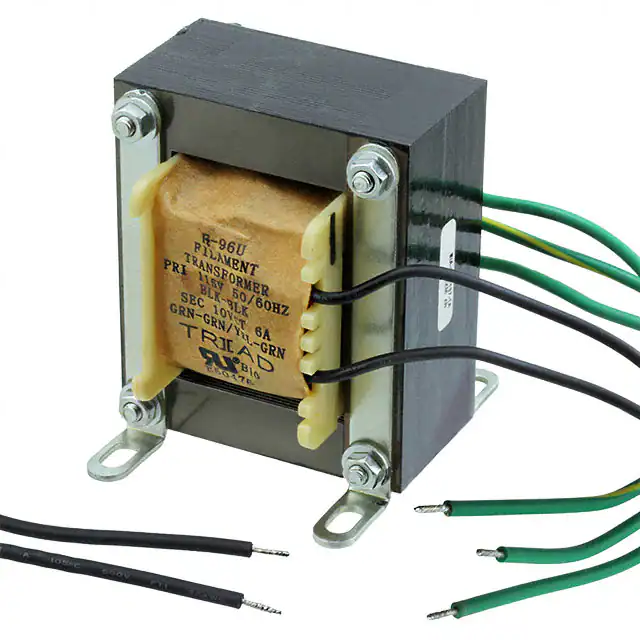

F-96UPWR XFMR LAMINATED 60VA CHAS MT |
7 |
|
Veri Sayfası |
Single Secondary | Box | Active | Laminated Core | 115V | 10V | 6A | Single | Single | Yes | 60VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 76.20mm | 1500Vrms | 2.1 lbs (952.5 g) |
|
VPS20-4000PWR XFMR LAMINATED 80VA CHAS MT |
47 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 8A, Series 4A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 74.68mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS230-350PWR XFMR LAMINATED 80VA CHAS MT |
57 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 700mA, Series 350mA | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS16-5000PWR XFMR LAMINATED 80VA CHAS MT |
29 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 10A, Series 5A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS28-2800PWR XFMR LAMINATED 80VA CHAS MT |
24 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS12-6300PWR XFMR LAMINATED 80VA CHAS MT |
16 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 12.6A, Series 6.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
