Basınç Sensörleri, Transdüserleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Uygulamalar | Basınç Türü | Çalışma Basıncı | Çıkış Türü | Çıkış | Doğruluk | Voltaj - Besleme | Port Boyutu | Port Stili | Özellikler | Sonlandırma Stili | Maksimum Basınç | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCSANN015PA2A3SENSOR 15PSIA 0.19" 12BIT 4SIP |
291 |
|
Veri Sayfası |
TruStability® HSC | 4-SIP, Side Port | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSNBN005PDAA5SENSOR 5PSID 0.19" 4.5V 4SIP |
456 |
|
Veri Sayfası |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
24PCBFA6GSENSOR 5PSIC 0.2" .115V |
899 |
|
Veri Sayfası |
24PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 115 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
BPS110-AD0P15-2DGSENSOR 0.15PSID 0.087" 4.5V 8SMD |
177 |
|
Veri Sayfası |
BPS110 | 8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR) | Active | Board Mount | Differential | 0.15PSI (1kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 2.75V ~ 5.5V | Male - 0.087" (2.2mm) Tube, Dual | Barbed | Amplified Output | J Lead | 0.75PSI (5.17kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
NPA-500B-10WDSENSOR 0.36PSID 0.12" 4.5V |
214 |
|
Veri Sayfası |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 35PSI (241.32kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
HSCMAND150PA4A3SENSOR 150PSIA 0.19" 12BIT 8SMD |
179 |
|
Veri Sayfası |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
SSCSNBN030PAAA5SENSOR 30PSIA 0.19" 4.5V 4SIP |
281 |
|
Veri Sayfası |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
2513130810401SENSOR 145.04PSID 0.087" 15BIT |
370 |
|
Veri Sayfası |
WSEN-PDUS | 8-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | - | Differential | -14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa) | I2C | 15 b | ±0.3% | 4.75V ~ 5.25V | Male - 0.087" (2.2mm) Tube, Dual | Barbless | - | SMD (SMT) Tab | 362.59PSI (2500kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
HSCDDRD001PD2A3SENSOR 1PSID 0.08" 12BIT 8DIP |
228 |
|
Veri Sayfası |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDANN001BA2A3SENSOR 14.5PSIA 0.19" 12BIT 8DIP |
622 |
|
Veri Sayfası |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 14.5PSI (100kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRRN100MDSA3SENSOR 1.45PSID 0.08" 12BIT 8DIP |
606 |
|
Veri Sayfası |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1.45PSI (±10kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
2513130810201SENSOR 1.45PSID 0.087" 15BIT |
290 |
|
Veri Sayfası |
WSEN-PDUS | 8-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | - | Differential | ±1.45PSI (±10kPa) | I2C | 15 b | ±1% | 4.75V ~ 5.25V | Male - 0.087" (2.2mm) Tube, Dual | Barbless | - | SMD (SMT) Tab | 14.5PSI (100kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
BPS130-HA015P-3SSENSOR 15PSIA 0.122" 4.95V |
144 |
|
Veri Sayfası |
BPS130 | 3-SIP Module | Tray | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | PC Pin | 30PSI (206.84kPa) | -40°C ~ 150°C | - | - | Through Hole | - |
|
|
HSCMAND060PA3A3SENSOR 60PSIA 0.19" 12BIT 8SMD |
456 |
|
Veri Sayfası |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Tube | Active | Board Mount | Absolute | 60PSI (413.69kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

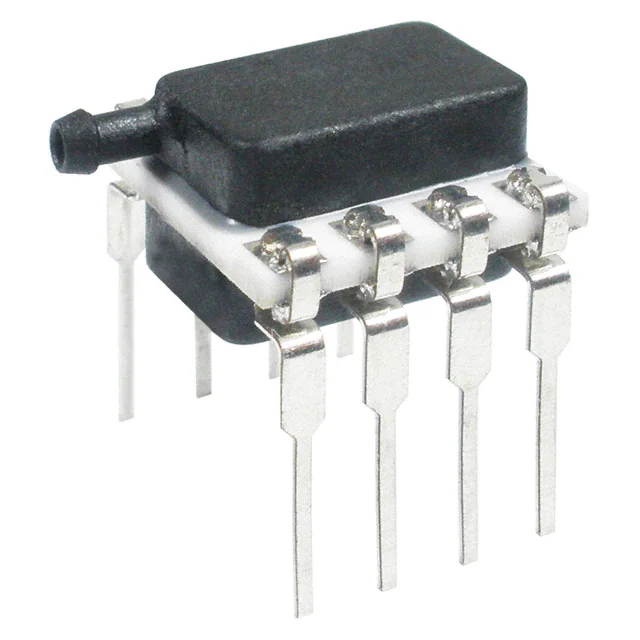

SSCDRNN030PAAA5SENSOR 30PSIA 0.08" 4.5V 8DIP |
193 |
|
Veri Sayfası |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NPA-500B-02WDSENSOR 0.073PSID 0.12" 4.5V |
281 |
|
Veri Sayfası |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
HSCDANN060PGAA5SENSOR 60PSIG 0.19" 4.5V 8DIP |
1,563 |
|
Veri Sayfası |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCMAND015PASA5SENSOR 15PSIA 0.19" 12BIT 8SMD |
531 |
|
Veri Sayfası |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

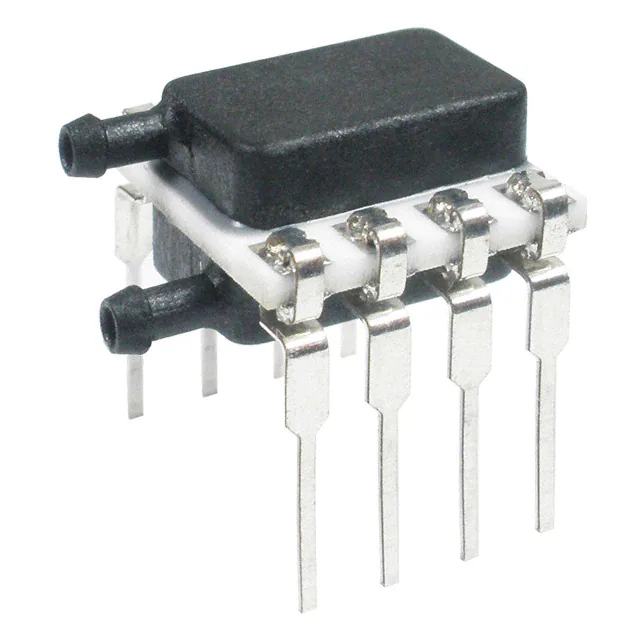

SSCDRRN001PDAA5SENSOR 1PSID 0.08" 4.5V 8DIP |
451 |
|
Veri Sayfası |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCMRRN001PDSA3SENSOR 1PSID 0.08" 12BIT 8SMD |
189 |
|
Veri Sayfası |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
