Basınç Sensörleri, Transdüserleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Uygulamalar | Basınç Türü | Çalışma Basıncı | Çıkış Türü | Çıkış | Doğruluk | Voltaj - Besleme | Port Boyutu | Port Stili | Özellikler | Sonlandırma Stili | Maksimum Basınç | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCSNBN100PAAA5SENSOR 100PSIA 0.19" 4.5V 4SIP |
0 |
|
Veri Sayfası |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Discontinued | Board Mount | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN100PGAB5SENSOR 100PSIG 0.19" 4.75V 4SIP |
0 |
|
Veri Sayfası |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN001BDAA5SENSOR 14.5PSID 0.19" 4.5V 4SIP |
0 |
|
Veri Sayfası |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Discontinued | Board Mount | Differential | ±14.5PSI (±100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±58.02PSI (±400kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCDRRN005PGAA3SENSOR 5PSIG 0.08" 2.97V 8DIP |
0 |
|
Veri Sayfası |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Discontinued | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ELVH-M500D-HRRD-C-N2A4SENSOR 7.25PSID 0.06" 14BIT 8DIP |
0 |
|
Veri Sayfası |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | -7.25PSI ~ 7.25PSI (-50kPa ~ 50kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | 0°C ~ 50°C | - | - | Through Hole | 8-DIP |
|

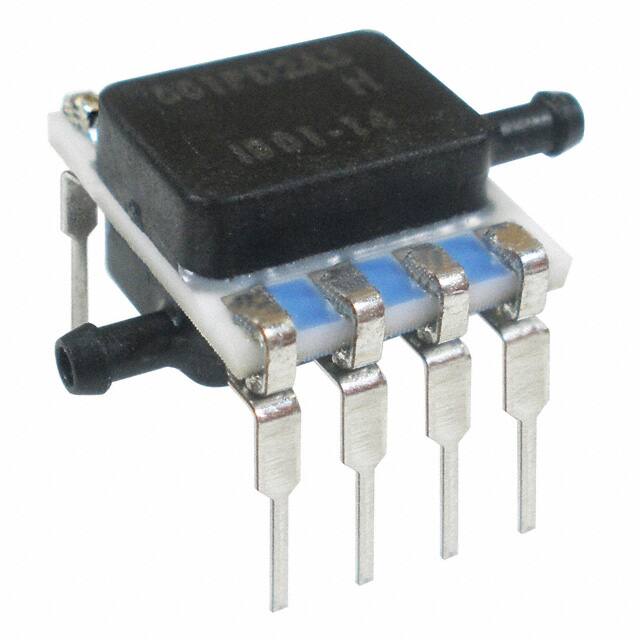

HSCDDRD005PD3A3SENSOR 5PSID 0.08" 12BIT 8DIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides | Bulk | Discontinued | Board Mount | Differential | ±5PSI (±34.47kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCSAND030PAAA5SENSOR 30PSIA 0.19" 4.5V 4SIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDAND060PGAA5SENSOR 60PSIG 0.19" 4.5V 8DIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Discontinued | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRRD160MDSA5SENSOR 2.32PSID 0.08" 12BIT 8DIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±2.32PSI (±16kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCSAAD100MDAA5SENSOR 1.45PSID 0.19" 4.5V 4SIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSAND015PAAA5SENSOR 15PSIA 0.19" 4.5V 4SIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 4-SIP, Side Port | Bulk | Discontinued | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDLND005PGSA3SENSOR 5PSIG 0.1" 12BIT 8DIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDLND100PGSA3SENSOR 100PSIG 0.1" 12BIT 8DIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCSFFN005PDAA5SENSOR 5PSID 0.19" 4.5V 4SIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSHHN060PDAA5SENSOR 60PSID 0.16" 4.5V 4SIP |
0 |
|
Veri Sayfası |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±60PSI (±413.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±250PSI (±1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
CPC05GCSENSOR 5PSIG .06V |
0 |
|
Veri Sayfası |
CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±2% | 3V ~ 16V | - | No Port | Temperature Compensated | - | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
ELVH-M100D-HRRJ-I-P7A4SENSOR 1.45PSID 0.06" 14BIT |
0 |
|
Veri Sayfası |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.15PSI ~ 1.45PSI (-1kPa ~ 10kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 12.33PSI (85kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
SSCMAND150PAAA5SENSOR 150PSIA 0.19" 4.5V 8SMT |
0 |
|
Veri Sayfası |
TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCMNND1.6BASA3SENSOR 23.21PSIA 12BIT 8SMT |
0 |
|
Veri Sayfası |
TruStability® SSC | 8-SMD, J-Lead | Bulk | Obsolete | Board Mount | Absolute | 23.21PSI (160kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCMLND015PDSA5SENSOR 15PSID 0.1" 12BIT 8SMT |
0 |
|
Veri Sayfası |
TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Differential | ±15PSI (±103.42kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
