Basınç Sensörleri, Transdüserleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Uygulamalar | Basınç Türü | Çalışma Basıncı | Çıkış Türü | Çıkış | Doğruluk | Voltaj - Besleme | Port Boyutu | Port Stili | Özellikler | Sonlandırma Stili | Maksimum Basınç | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
185PC30ATSENSOR 15PSIA 0.2" 7V |
0 |
|
- |
180PC | 6-DIP Module | Bulk | Discontinued | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 1 V ~ 7 V | ±0.75% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
9308705SENSOR GAUGE 0-200 PSI |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9305602PRESS TRANS MM 50 PSIG SCD 547-1 |
0 |
|
- |
- | - | Bulk | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9306110SST PRESSURE TRANSDUCER |
0 |
|
- |
- | - | Bulk | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9308210PRESS TRANS MM-15/+35 SCD 706-1 |
0 |
|
- |
- | - | Bulk | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

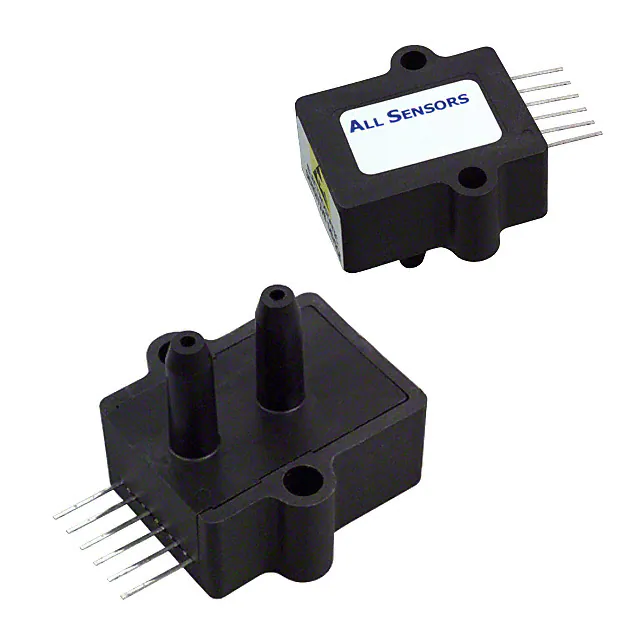

15 PSI-A-HGRADE-MV-ABTSENSOR 15PSIA 0.19" .09V |
0 |
|
- |
AXCX | 6-SIP Module | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
PN2071SENSOR 3620PSI 1/4" 10V |
0 |
|
- |
- | Module | Box | Active | - | - | 3625.94PSI (25000kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 17400PSI (120000kPa) | -25°C ~ 80°C | - | - | - | - |
|

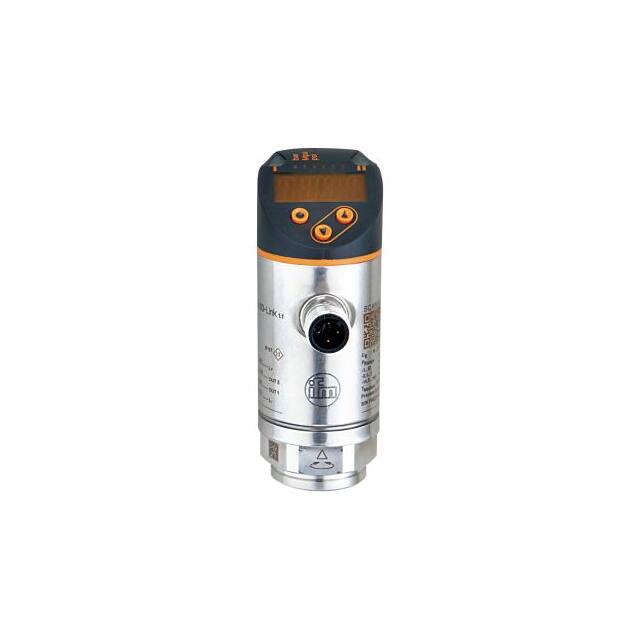

PN2092SENSOR 1450PSI 1/4" 10V |
0 |
|
- |
- | Module | Box | Active | - | - | 1450.38PSI (10000kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 9427.45PSI (65000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PN2093SENSOR 362.6PSI 1/4" 10V |
0 |
|
- |
- | Module | Box | Active | - | Vacuum | -14.5PSI ~ 362.6PSI (-100kPa ~ 2500kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 5076.32PSI (35000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PN2096SENSOR 36PSI 1/4" 10V |
0 |
|
- |
- | Module | Box | Active | - | - | -1.8PSI ~ 36PSI (-12.5kPa ~ 250kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 725.19PSI (5000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PN2594SENSOR 145.04PSI 1/4" 10V |
0 |
|
Veri Sayfası |
- | Module | Box | Active | - | Vacuum | -14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 2175.57PSI (15000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PN2592SENSOR 1450PSI 1/4" 10V |
0 |
|
- |
- | Module | Box | Active | - | - | 1450.38PSI (10000kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 9427.45PSI (65000kPa) | -25°C ~ 80°C | - | - | - | - |
|

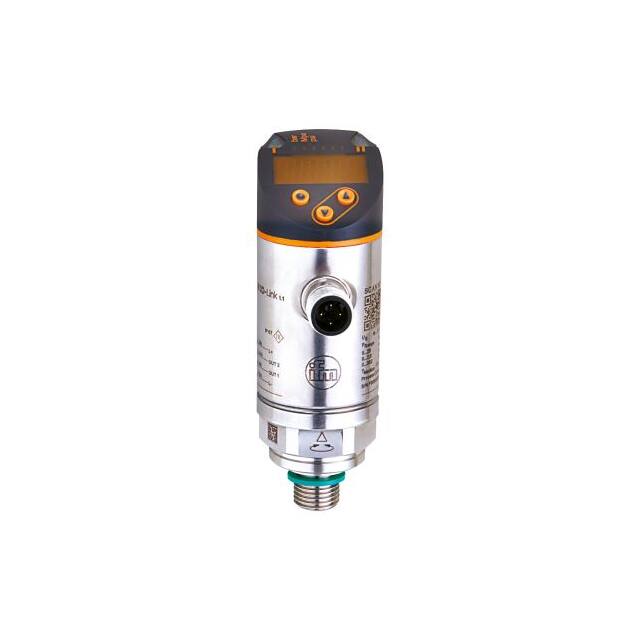

PN2596SENSOR 36PSI 1/4" 10V |
0 |
|
Veri Sayfası |
- | Module | Box | Active | - | - | -1.8PSI ~ 36PSI (-12.5kPa ~ 250kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 725.19PSI (5000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PN2571SENSOR 3620PSI 1/4" 10V |
0 |
|
- |
- | Module | Box | Active | - | - | 3625.94PSI (25000kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 17400PSI (120000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PN2593SENSOR 362.6PSI 1/4" 10V |
0 |
|
- |
- | Module | Box | Active | - | Vacuum | -14.5PSI ~ 362.6PSI (-100kPa ~ 2500kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 5076.32PSI (35000kPa) | -25°C ~ 80°C | - | - | - | - |
|
|
9308704MM100PG1HA -MM STAINLESS PRESS |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9308703MM050PG1HA -MM STAINLESS PRESS |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SCXL004DNSENSOR 0.15PSID 0.19" |
0 |
|
Veri Sayfası |
SCXL | 6-SIP Module | Bulk | Active | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (12V) | ±1% | 18V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 0.36PSI (2.49kPa) | 0°C ~ 70°C | - | - | Through Hole | - |
|
PN2160SENSOR 8700PSI 1/4" 10V |
0 |
|
- |
- | Module | Box | Active | - | - | 8702.26PSI (60000kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 36259PSI (250000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PN2097SENSOR 14.5PSI 1/4" 10V |
0 |
|
- |
- | Module | Box | Active | - | Vacuum | -0.73PSI ~ 14.5PSI (-5kPa ~ 100kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4mA ~ 20mA, 0V ~ 10V | ±0.4% | 18V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | - | M12, 4 Pin | 435.11PSI (3000kPa) | -25°C ~ 80°C | - | - | - | - |
