Basınç Sensörleri, Transdüserleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Uygulamalar | Basınç Türü | Çalışma Basıncı | Çıkış Türü | Çıkış | Doğruluk | Voltaj - Besleme | Port Boyutu | Port Stili | Özellikler | Sonlandırma Stili | Maksimum Basınç | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
142PC30ASENSOR 30PSIA 0.2" 5.67V |
0 |
|
- |
140PC | 3-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 2PSI ~ 30PSI (13.79kPa ~ 206.84kPa) | Analog Voltage | 1 V ~ 5.67 V | ±0.4% | 7V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

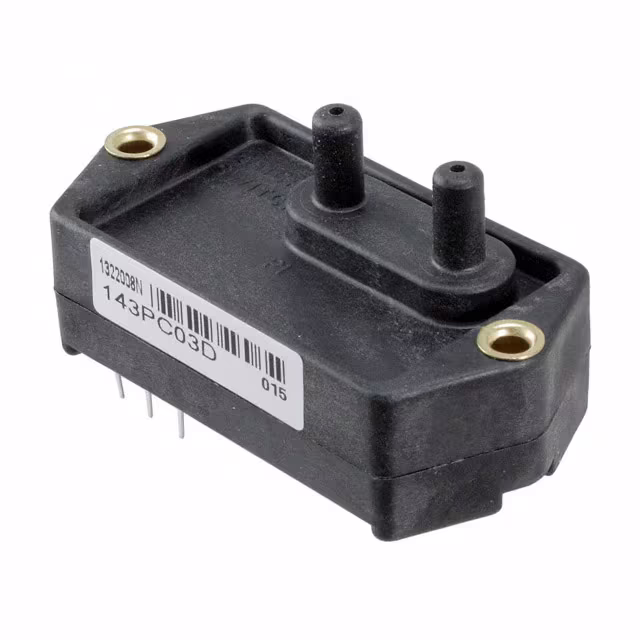

143PC03DSENSOR 2.5PSID 0.2" 8.5V |
0 |
|
- |
140PC | 3-SIP Module | Bulk | Active | Board Mount | Differential | ±2.5PSI (±17.24kPa) | Analog Voltage | 3.5 V ~ 8.5 V | ±0.75% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
162PC01GSENSOR 1PSIG 0.2" 7V |
0 |
|
Veri Sayfası |
160PC | 3-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 1 V ~ 7 V | ±1% | 6V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
163PC01D36SENSOR 0.18PSID 0.2" 8.5V |
0 |
|
Veri Sayfası |
160PC | 3-SIP Module | Bulk | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 3.5 V ~ 8.5 V | ±2% | 6V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±5PSI (±34.47kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
163PC01D48SENSOR 1.71PSID 0.2" 8.5V |
0 |
|
Veri Sayfası |
160PC | 3-SIP Module | Bulk | Obsolete | Board Mount | Differential | -0.28PSI ~ 1.71PSI (-1.96kPa ~ 11.77kPa) | Analog Voltage | 3.5 V ~ 8.5 V | ±1.5% | 6V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 4.99PSI (34.32kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

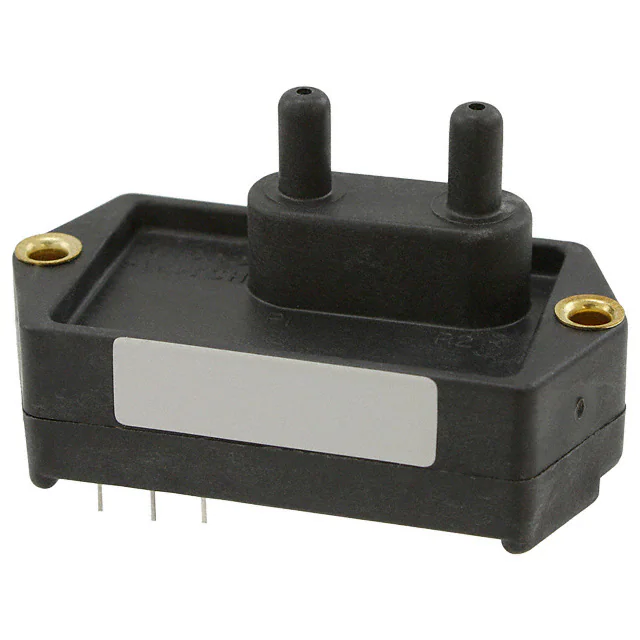

164PC01D76SENSOR 0.18PSID 0.2" 7V |
0 |
|
Veri Sayfası |
160PC | 3-SIP Module | Bulk | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Analog Voltage | 1 V ~ 7 V | ±2% | 6V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

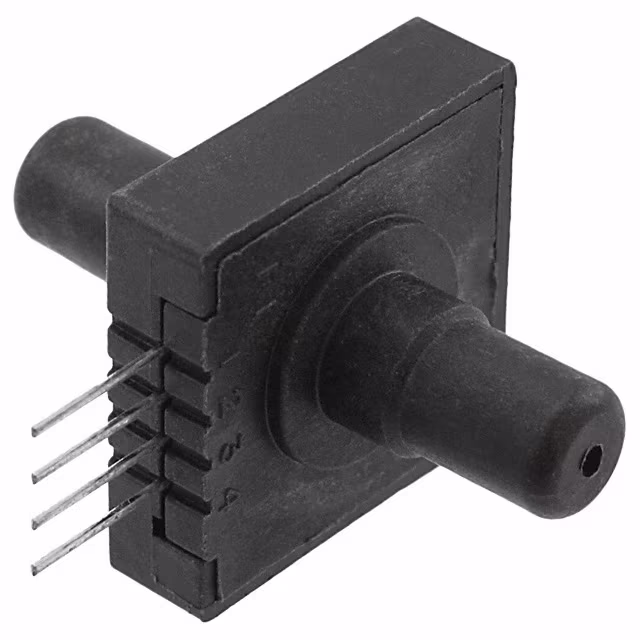

176PC07HD2SENSOR 0.25PSID 0.28" .028V |
0 |
|
- |
170PC | 4-SIP Module | Bulk | Active | Board Mount | Differential | 0.25PSI (1.74kPa) | Wheatstone Bridge | 0 mV ~ 28 mV (10V) | ±3% | 10V ~ 16V | Male - 0.28" (7.11mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5.06PSI (34.88kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
176PC28HD2SENSOR 1.01PSID 0.28" .042V |
0 |
|
- |
170PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 1.01PSI (6.98kPa) | Wheatstone Bridge | 0 mV ~ 42 mV (10V) | ±3% | 10V ~ 16V | Male - 0.28" (7.11mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5.06PSI (34.88kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

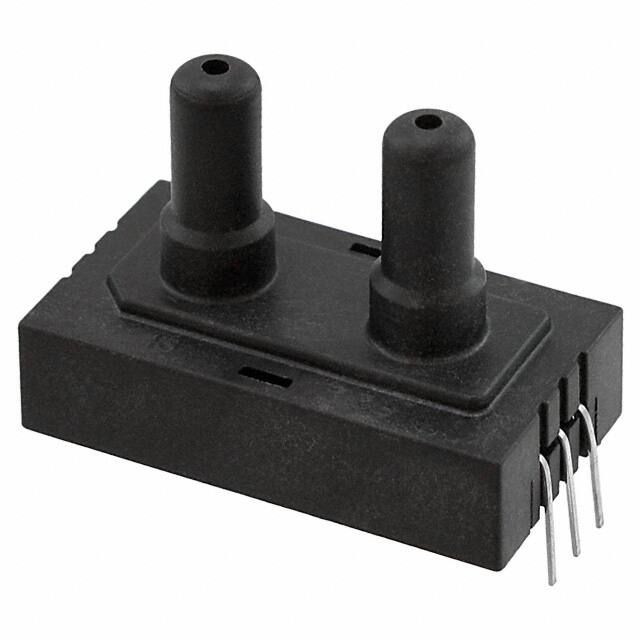

185PC05DTSENSOR 5PSID 0.2" 7V |
0 |
|
- |
180PC | 6-DIP Module | Bulk | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Analog Voltage | 1 V ~ 7 V | ±2% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
185PC15AHSENSOR 15PSIA 0.2" 7V |
0 |
|
Veri Sayfası |
180PC | 6-DIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 1 V ~ 7 V | ±1% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
242PC60GSENSOR 60PSIG 1/8"NPT 6V |
0 |
|
Veri Sayfası |
240PC | Module | Bulk | Active | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Analog Voltage | 1 V ~ 6 V | ±0.5% | 7V ~ 16V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Wire Leads | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
242PC150GSENSOR 150PSIG 1/8"NPT 6V |
0 |
|
Veri Sayfası |
240PC | Module | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 1 V ~ 6 V | ±0.5% | 7V ~ 16V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Wire Leads | 300PSI (2068.43kPa) | -40°C ~ 85°C | - | - | - | - |
|
24PCDFA6ASENSOR 30PSIA 0.2" |
0 |
|
Veri Sayfası |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | -300 mV ~ 0 mV (10V) | ±0.3% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | - | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCFFB6GSENSOR 100PSIC 0.25" .225V |
0 |
|
Veri Sayfası |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.35mm) Tube | Barbed | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
26PCAFC2GSENSOR 1PSIC 0.18" .0167V |
0 |
|
Veri Sayfası |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18" (4.6mm) Tube | Barbless | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
26PCCFD6GSENSOR 15PSIC 0.1V |
0 |
|
Veri Sayfası |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | - | No Port | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

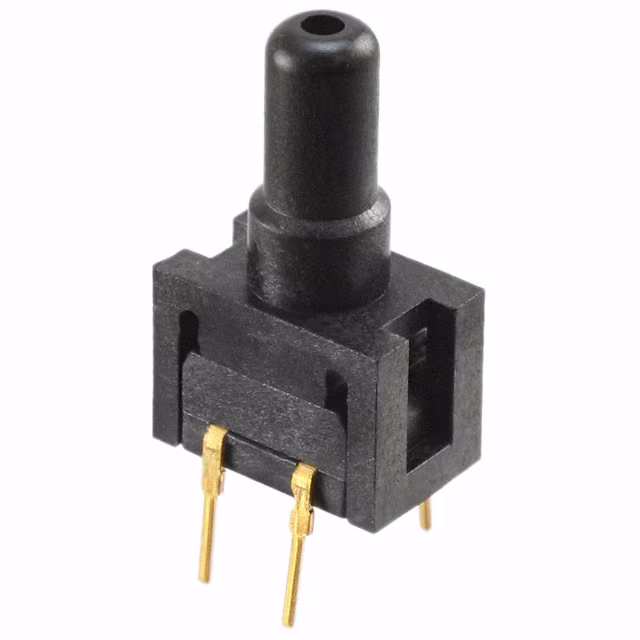

26PCDFA2GSENSOR 30PSIC 0.2" 0.1V |
0 |
|
Veri Sayfası |
26PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.2% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube | Barbless | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
26PCDFD6GSENSOR 30PSIC 0.1V |
0 |
|
Veri Sayfası |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.2% | 2.5V ~ 16V | - | No Port | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
26PCGFM6GSENSOR 250PSIC 1/4" .15V |
0 |
|
Veri Sayfası |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (10V) | ±0.7% | 2.5V ~ 16V | Male - 1/4" (6.35mm) UNF | Threaded | Temperature Compensated | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
40PC150G3ASENSOR 150PSIG 0.18" 4.5V |
0 |
|
Veri Sayfası |
40PC | 6-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 300PSI (2068.43kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
