Basınç Sensörleri, Transdüserleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Uygulamalar | Basınç Türü | Çalışma Basıncı | Çıkış Türü | Çıkış | Doğruluk | Voltaj - Besleme | Port Boyutu | Port Stili | Özellikler | Sonlandırma Stili | Maksimum Basınç | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDX01D4SENSOR 1PSID 0.09" .018V |
0 |
|
Veri Sayfası |
SDX | 6-DIP Module | Bulk | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 20V | Male - 0.09" (2.28mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
PSAN-V01CV-NPT1/8SENSOR 14.69PSI 1/8"NPT 5V |
90 |
|
Veri Sayfası |
PSAN | Module Box with Display | Box | Active | - | - | 14.7PSI (101.33kPa) | Analog Voltage, NPN - Open Collector | 1 V ~ 5 V | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) NPT | Threaded | - | Connector | 29.38PSI (202.6kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
1865-05G-KDNSENSOR 25PSIG 7.5V |
0 |
|
Veri Sayfası |
1865 | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 25PSI (172.37kPa) | Wheatstone Bridge | 0 V ~ 7.5 V | ±0.25% | 15V | - | No Port | Temperature Compensated | - | 60PSI (413.69kPa) | -28°C ~ 54°C | - | - | Through Hole | - |
|
601009USB PRECISION BAROMETER |
32 |
|
Veri Sayfası |
- | IoT Finished Device | Bag | Active | - | Absolute | - | - | 24 b | ±0.022PSI (±0.15kPa) | 5V | - | No Port | Temperature Compensated | - | 17.4PSI (120kPa) | -40°C ~ 70°C | - | - | - | Module |
|
8252.G9.2530.35.19SENSOR 250PSIG 1/4"NPT .02A |
73 |
|
Veri Sayfası |
NAT 8252 | Cylinder, Threaded | Box | Active | - | Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | M12x1, 5 Pin | 750PSI (5171.07kPa) | -40°C ~ 125°C | - | - | - | - |
|
8287.H3.2530.05.19.40.58SENSOR 1500PSIG 1/4"NPT .02A |
42 |
|
Veri Sayfası |
EPI 8287 | Cylinder, Threaded | Box | Active | - | Gauge | 1500PSI (10342.14kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | DIN43650-A | 4500PSI (31026.41kPa) | -40°C ~ 125°C | - | - | - | - |
|
8252.HA.2530.01.19.34.40SENSOR 300PSIG 1/4"NPT .02A |
39 |
|
Veri Sayfası |
NAT 8252 | Cylinder, Threaded | Box | Active | - | Gauge | 300PSI (2068.43kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | DIN43650-C | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
8287.G8.2530.05.19.40.58SENSOR 150PSIG 1/4"NPT .02A |
35 |
|
Veri Sayfası |
EPI 8287 | Cylinder, Threaded | Box | Active | - | Gauge | 150PSI (1034.21kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | DIN43650-A | 450PSI (3102.64kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
8287.G6.2530.05.19.40.58SENSOR 50PSIG 1/4"NPT .02A |
30 |
|
Veri Sayfası |
EPI 8287 | Cylinder, Threaded | Box | Active | - | Gauge | 50PSI (344.74kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | DIN43650-A | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
8252.G5.2530.01.19.34.40SENSOR 30PSIG 1/4"NPT .02A |
29 |
|
Veri Sayfası |
NAT 8252 | Cylinder, Threaded | Box | Active | - | Gauge | 30PSI (206.84kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | DIN43650-C | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
8252.G8.2530.01.19.34.40SENSOR 150PSIG 1/4"NPT .02A |
28 |
|
Veri Sayfası |
NAT 8252 | Cylinder, Threaded | Box | Active | - | Gauge | 150PSI (1034.21kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | DIN43650-C | 450PSI (3102.64kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
8252.G7.2530.01.19.34.40SENSOR 100PSIG 1/4"NPT .02A |
28 |
|
Veri Sayfası |
NAT 8252 | Cylinder, Threaded | Box | Active | - | Gauge | 100PSI (689.48kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | DIN43650-C | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
8252.H4.2530.01.19.34.40SENSOR 5000PSIG 1/4"NPT .02A |
26 |
|
Veri Sayfası |
NAT 8252 | Cylinder, Threaded | Box | Active | - | Gauge | 5000PSI (34473.79kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | DIN43650-C | 12500PSI (86184.47kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
8252.H3.2530.01.19.34.40SENSOR 1500PSIG 1/4"NPT .02A |
26 |
|
Veri Sayfası |
NAT 8252 | Cylinder, Threaded | Box | Active | - | Gauge | 1500PSI (10342.14kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | DIN43650-C | 4500PSI (31026.41kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
13C1000PA1LSENSOR 1000PSIA .102V |
0 |
|
- |
13 mm | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 1000PSI (6894.76kPa) | Wheatstone Bridge | 98 mV ~ 102 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 3000PSI (20684.27kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PT20-100PSIG-1-1-45-25General Purpose Fixed Range Pres |
32 |
|
Veri Sayfası |
PT20 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 100PSI (689.48kPa) | Analog Current | 4 ~ 20 mA | ±0.5% | 8V ~ 30V | Male - 7/16" (11.11mm) SAE | Threaded | Temperature Compensated | Connector | 200PSI (1379kPa) | 0°C ~ 80°C | - | - | - | - |
|

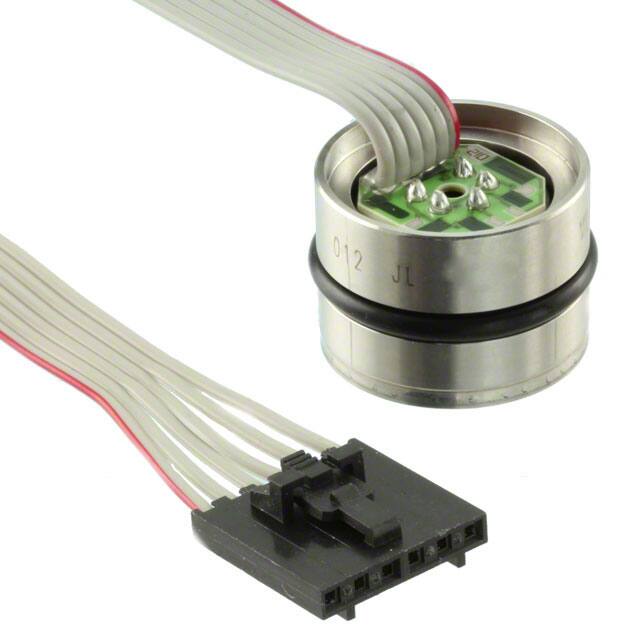

154N-050G-RSENSOR 50PSIG 0.1V |
0 |
|
Veri Sayfası |
- | Module | Tube | Active | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
154N-500A-RSENSOR 500PSIA 0.1V |
0 |
|
Veri Sayfası |
- | Module | Tube | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|
8252.G7.2530.32.19.33SENSOR 100PSIG 1/4"NPT .02A |
32 |
|
Veri Sayfası |
NAT 8252 | Cylinder, Threaded | Box | Active | - | Gauge | 100PSI (689.48kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 9V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | M12x1, 4 Pin | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|

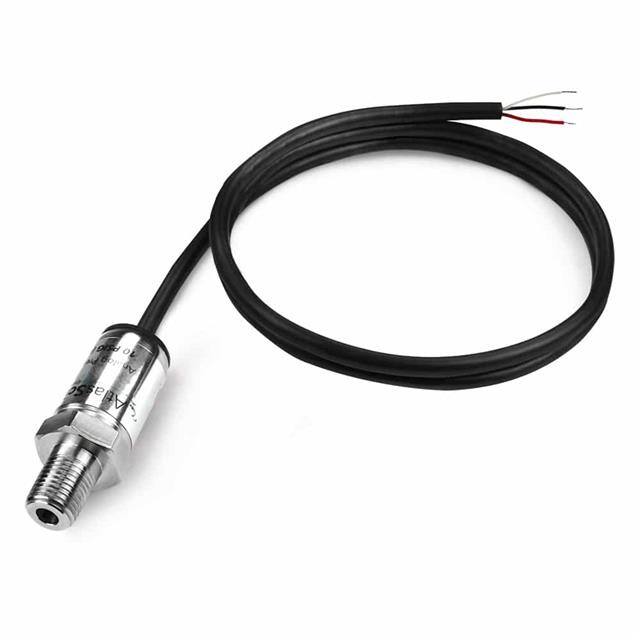

A10-APSA-10 Analog Pressure Sensor |
97 |
|
Veri Sayfası |
- | Cylinder, Threaded | Bulk | Active | - | - | 10PSI (68.95kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.1PSI (0.69kPa) | 5V | Male - 1/4" (6.35mm) NPT | Threaded | - | Cable Leads | 30PSI (206.84kPa) | -40°C ~ 105°C | - | - | - | - |
