Reed Röleleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIL03-1A72-71DRELAY REED SPST 0.5A 3V |
286 |
|
Veri Sayfası |
SIL | Tube | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | Diode | PC Pin | - | 2.1 VDC | 0.45 VDC | 0.7 ms | 0.05 ms | -20°C ~ 70°C | - |
|
9001-12-01RELAY REED SPST 500MA 12V |
20,988 |
|
Veri Sayfası |
9000 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9091-05-00RELAY REED SPST 500MA 5V |
16,293 |
|
Veri Sayfası |
9091 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
|
9091-05-01RELAY REED SPST 500MA 5V |
101,585 |
|
Veri Sayfası |
9091 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
HE722A1200RELAY REED DPST 500MA 12V |
746 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
9001-05-00RELAY REED SPST 500MA 5V |
26,787 |
|
Veri Sayfası |
9000 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
HE722A0510RELAY REED DPST 500MA 5V |
5,787 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE722A1210RELAY REED DPST 500MA 12V |
3,456 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
9001-12-00RELAY REED SPST 500MA 12V |
12,004 |
|
Veri Sayfası |
9000 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
HE721C0500RELAY REED SPDT 250MA 5V |
5,255 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
9001-05-01RELAY REED SPST 500MA 5V |
6,403 |
|
Veri Sayfası |
9000 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
HE721C2410RELAY REED SPDT 250MA 24V |
696 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
9001-05-11RELAY REED SPST 500MA 5V |
27,768 |
|
Veri Sayfası |
9000 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
HE721C1200RELAY REED SPDT 250MA 12V |
5,060 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|

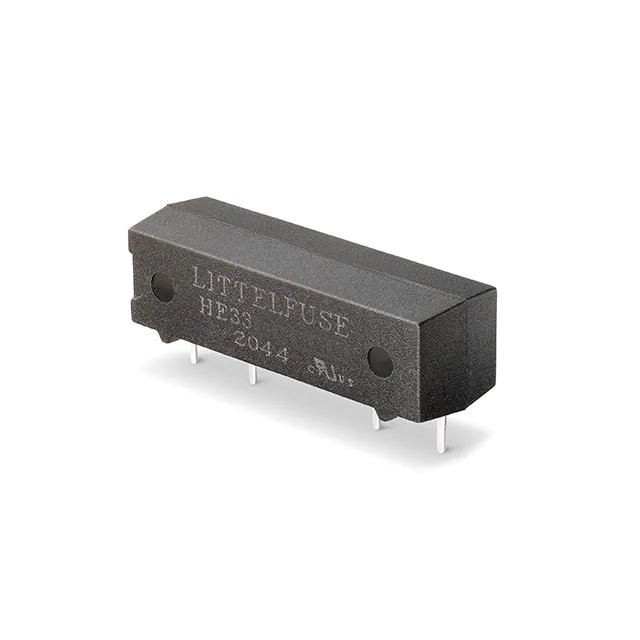

HE3321C0500RELAY REED SPDT 250MA 5V |
2,976 |
|
Veri Sayfası |
HE3300 | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|

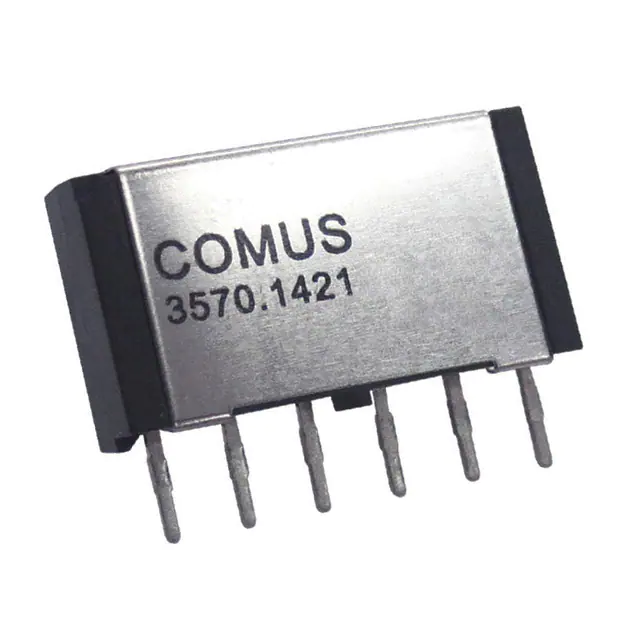

3570-1421-054RELAY REED SIP DPST .5A 5V EM/DI |
534 |
|
Veri Sayfası |
3570 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 13.3 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C | - |
|
8L02-05-01RELAY REED DPST 500MA 5V |
2,375 |
|
Veri Sayfası |
8L | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|

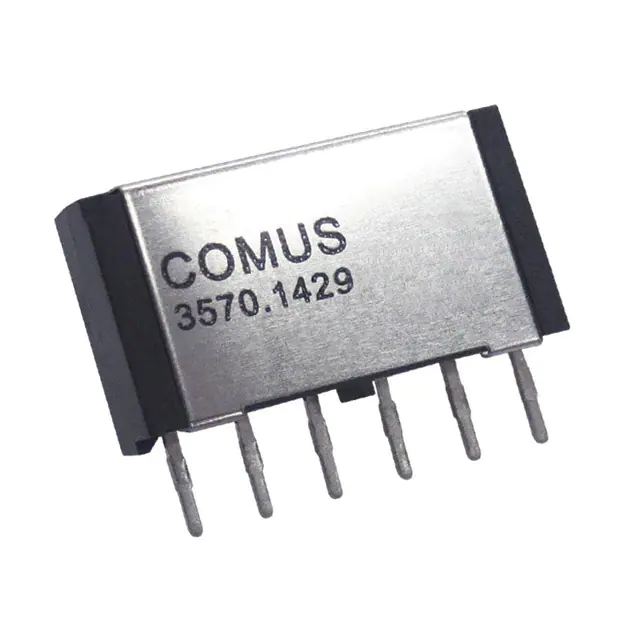

3570-1429-054RELAY REED SIP DPST 1A 5V EM/DI |
2,118 |
|
Veri Sayfası |
3570 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 200VDC - Max | 13.3 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C | - |
|

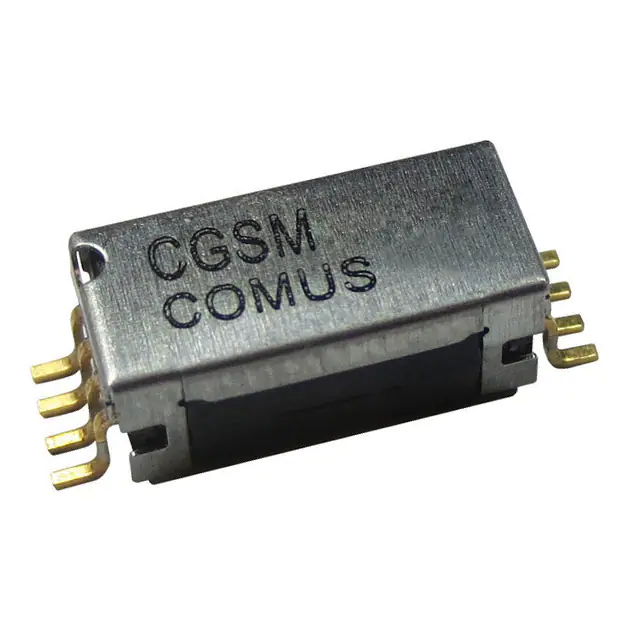

CGSM-051A-GTRRELAY RF SPST-NO 500MA 5V |
1,941 |
|
Veri Sayfası |
CGSM | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 33.3 mA | Non Latching | - | Gull Wing | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|

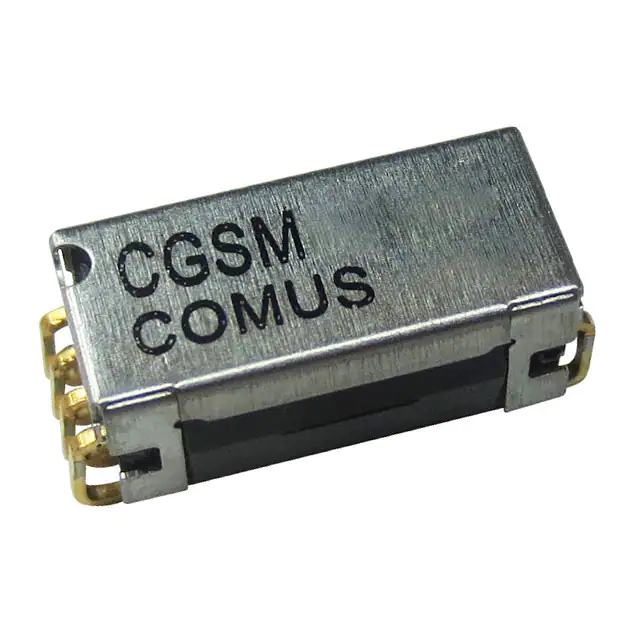

CGSM-051A-JTRRELAY RF SPST-NO 500MA 5V |
1,055 |
|
Veri Sayfası |
CGSM | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 33.3 mA | Non Latching | - | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C | Ruthenium (Ru) |
