RF Antenleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | RF Ailesi/Standartı | Frekans Grubu | Frekans (Merkez/Bant) | Frekans Aralığı | Anten Türü | Bant Sayısı | VSWR (Voltaj Dalga Geri Yansıma Oranı) | Dönüş Kaybı | Kazanç | Güç - Maksimum | Özellikler | Sonlandırma | Giriş Koruma | Sınıf | Kalite Belirtimi | Montaj Türü | Yükseklik (Maksimum) | Uygulamalar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZA-C-0G011.559GHZ-1.606GHZ SMD ACTIVE |
2,000 |
|
Veri Sayfası |
CENTAURI | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Chip | 1 | 1.9 | -7dB | 0.1dBi | - | LNA | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MAF94353RF ANT 2.4/5.5GHZ PCB TRACE IPEX |
495 |
|
- |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | - | 2.5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | - |
|
1001435M0-AA10L0070NANTENNA ASSY, WLAN M0 70 |
1,397 |
|
Veri Sayfası |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 70mm | Solder | - | - | - | Surface Mount | 0.374" (9.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ATIGG2540RF ANT GNSS/GPS CER PATCH IPEX |
284 |
|
Veri Sayfası |
ATIGG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6085GHz | 1.574GHz ~ 1.576GHz, 1.602GHz ~ 1.615GHz | Ceramic Patch | 2 | 2 | - | 2dBi | - | Cable - 60mm, LNA, Filter | I-PEX MHF | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
IWX-282BSAXBANT 2.4 WHIP SMA PLUG MALE |
979 |
|
Veri Sayfası |
282 | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.6 | -12.7dB | 2.4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | Bluetooth, ISM, WiFi, ZigBee |
|
|
IWX-282BRSXBANT 2.4 WHIP RP-SMA PLUG FEMALE |
957 |
|
Veri Sayfası |
282 | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.6 | -12.7dB | 2.4dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 3.307" (84.00mm) | Bluetooth, ISM, WiFi, ZigBee |
|
APAKM3513-SGL2RF ANT GPS L1+L2 STACK PATCH |
0 |
|
Veri Sayfası |
APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz | 1.227GHz, 1.575GHz | Ceramic Patch | 2 | 2 | - | 1.2dBi, 3.1dBi | - | - | Solder | - | - | - | Through Hole | 0.531" (13.50mm) | GPS |
|
|
2108790-2PCB ANTENNA SINGLE BAND TAPE AND |
3,500 |
|
Veri Sayfası |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | SHF (f > 4GHz) | 2.441GHz | 2.4GHz ~ 2.483GHz | PCB Trace | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-868-JJB-HT-TRF ANT 868 MHZ DOME SLD TH |
0 |
|
Veri Sayfası |
JJB-HT | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 890MHz | Whip, Straight | 1 | 2 | - | -10.5dBi | - | - | Solder | - | - | - | Through Hole | 0.480" (12.20mm) | ISM, LoRaWAN, Sigfox |
|
RCA-W1A0-1204-Z-001RF ANT 433MHZ CHIP SOLDER SMD |
2,987 |
|
Veri Sayfası |
RCA | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Chip | 1 | - | 6.5dB | 0.79dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | General Purpose |
|
|
IHF-2120MPXW-W015ANT 2.4 WHIP 150MM CABLE MHF1 |
991 |
|
Veri Sayfası |
2120 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.2 | -20.8dB | 2.7dBi | 1 W | Cable - 150mm | MHF1, U.FL | - | - | - | Panel Mount | 0.551" (14.00mm) | Bluetooth, ISM, WiFi, ZigBee |
|
1513381-1RF ANT 4.6GHZ MODULE U.FL PAN MT |
0 |
|
Veri Sayfası |
- | Bulk | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.6GHz | 3.1GHz ~ 6GHz | Module | 1 | 3 | - | 4dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | - |
|
ATIGG1540-1RF ANT GNSS/GPS CER PATCH IPEX |
186 |
|
Veri Sayfası |
ATIGG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.609GHz | 1.574GHz ~ 1.576GHz, 1.608GHz ~ 1.61GHz | Ceramic Patch | 2 | 2 | - | 1dBi | - | Cable - 60mm, LNA, Filter | I-PEX MHF | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
|
ATIGGB2540RF ANT GPS/GLONASS/BEIDOU PATCH |
175 |
|
Veri Sayfası |
ATIGGB | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz, 1.6GHz, 1.66GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.659GHz ~ 1.663GHz | Ceramic Patch | 3 | 2 | - | -2.5dBi, -1.5dBi, -1dBi | - | Cable - 60mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | Beidou, GLONASS, GPS |
|

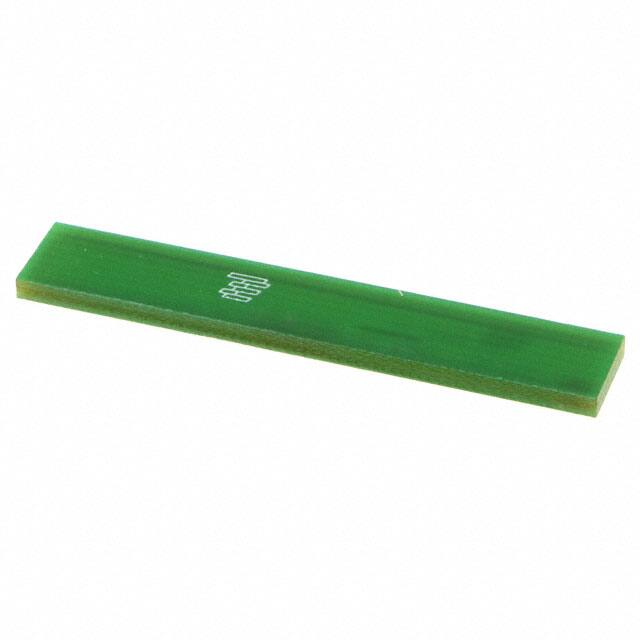

1513156-1RF ANT 915MHZ PCB TRACE SLDR SMD |
2,344 |
|
Veri Sayfası |
- | Tape & Reel (TR) | Active | 802.15.4 | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 2.5 | - | 1dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | ZigBee™ |
|
SZK-C-2L18NB-IoT LTE ANT FLAT PATCH IPEX |
390 |
|
Veri Sayfası |
- | Bag | Active | Cellular | Wide Band | 875.5MHz, 1.955GHz, 2.35GHz, 5.595GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 4 | - | - | 2.88dBi, 4.31dBi, 1.95dBi, 2.01dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, LTE, NB-IOT |
|
|
ATIGGB1840RF ANT GPS/GLONASS/BEIDOU PATCH |
285 |
|
Veri Sayfası |
ATPGGB | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.571GHz ~ 1.576GHz, 1.574GHz ~ 1.579GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 4 | 2 | - | 28dBi, 28dBi, 28dBi, 28dBi | - | Cable - 70mm, LNA | I-PEX | - | - | - | Surface Mount | 0.295" (7.50mm) | Beidou, Galileo, GLONASS, GPS |
|
APAMS-103RF ANT 900MHZ/1.8GHZ FLAT BAR |
0 |
|
Veri Sayfası |
APAMS | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 870MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Flat Bar | 2 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.150" (3.80mm) | GSM |
|
ANT1085-4R1-01ARF ANT 4.2GHZ CHIP SOLDER SMD |
1,675 |
|
Veri Sayfası |
- | Tape & Reel (TR) | Obsolete | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.2GHz | 3.1GHz ~ 5.2GHz | Chip | 1 | 3 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
SZA-C-0G031.559GHZ-1.606GHZ SMD ACTIVE |
985 |
|
Veri Sayfası |
PROXIMA | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Chip | 1 | 1.9 | -7dB | 0.1dBi | - | LNA | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
