Hoparlörler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Teknoloji | Tür | Frekans Aralığı | Frekans - Kendi Rezonansı | Empedans | Verimlilik - dBA | Verimlilik - Test | Verimlilik - Türü | Güç - Nominal | Güç - Maksimum | Port Konumu | Şekil | Malzeme - Konik | Malzeme - Mıknatıs | Giriş Koruma | Dereceler | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1176G 50 FFL 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 300 Hz ~ 12 kHz | 455Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | - | - | Quick Connect | 5.512" Dia (140.00mm) | 1.976" (50.20mm) |
|
NE180W-08SPEAKR 7.45OHM 80W TOP PT 86.3DB |
0 |
|
- |
NE | Bulk | Active | Magnetic | Tweeter | 40 Hz ~ 4 kHz | 42.3Hz | 7.45 Ohms | 86.30 | 1W/1M | Half Space Sensitivity | 80 W | - | Top | Round | Paper | Nd-Fe-B | - | - | Terminal Block | 7.079" Dia (179.80mm) | 3.648" (92.65mm) |
|
NE180W-04SPEAKR 3.88OHM 80W TOP PT 86.7DB |
0 |
|
Veri Sayfası |
NE | Bulk | Active | Magnetic | Tweeter | 40 Hz ~ 4 kHz | 38.7Hz | 3.88 Ohms | 86.70 | 1W/1M | Half Space Sensitivity | 80 W | - | Top | Round | Paper | Nd-Fe-B | - | - | Terminal Block | 7.079" Dia (179.80mm) | 3.648" (92.65mm) |
|
50261DK 121 FE EB 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 620 Hz ~ 5 kHz | - | 8 Ohms | 104.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round, Square Frame | Polypropylene (PP) | - | Waterproof | - | Wire Leads | 3.996" Dia x 4.764" L (101.50mm x 121.00mm) | 2.756" (70.00mm) |
-VIEW-A.jpg)
|
WB 13 - 100 V/8 OHM (BLACK)SPEAKER 8OHM 50W 91DB 2-WAY |
0 |
|
Veri Sayfası |
- | Bulk | Active | - | General Purpose, Enclosure Included | 95 Hz ~ 20 kHz | - | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 50 W | 80 W | User Defined | Rectangular | - | - | IP54 | - | - | 4.803" Dia x 9.449" L (122.00mm x 240.00mm) | 5.512" (140.00mm) |
|
|
50313WB 13 BLACK 100V+8 OHM |
0 |
|
Veri Sayfası |
- | Retail Package | Active | - | General Purpose | 95 Hz ~ 20 kHz | - | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 50 W | 80 W | User Defined | Rectangular | - | - | IP54 | - | None | 4.803" Dia x 9.449" L (122.00mm x 240.00mm) | 5.512" (140.00mm) |
|
|
50311WB 13 WHITE 100V+8 OHM |
0 |
|
Veri Sayfası |
- | Retail Package | Active | - | General Purpose | 95 Hz ~ 20 kHz | - | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 50 W | 80 W | User Defined | Rectangular | - | - | IP54 | - | None | 4.803" Dia x 9.449" L (122.00mm x 240.00mm) | 5.512" (140.00mm) |
|
|
DSM 50 FFL - 8 OHMSPEAKER 8OHM TOP PORT 90DB |
0 |
|
Veri Sayfası |
- | Bulk | Active | Magnetic | - | 400 Hz ~ 15 kHz | 430Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Square | - | - | - | - | Quick Connect | 5.118" L x 5.118" W (130.00mm x 130.00mm) | 1.969" (50.00mm) |
|
|
DK 8 P - 100 V/15 WSPEAKER 20OHM 110DB RE-ENT HORN |
0 |
|
Veri Sayfası |
- | Bulk | Active | - | - | 500 Hz ~ 5.5 kHz | - | 20 Ohms | 110.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | User Defined | Round | - | - | IP66 - Dust Tight, Water Resistant | - | Wire Leads | 8.268" Dia (210.00mm) | 10.591" (269.00mm) |
|

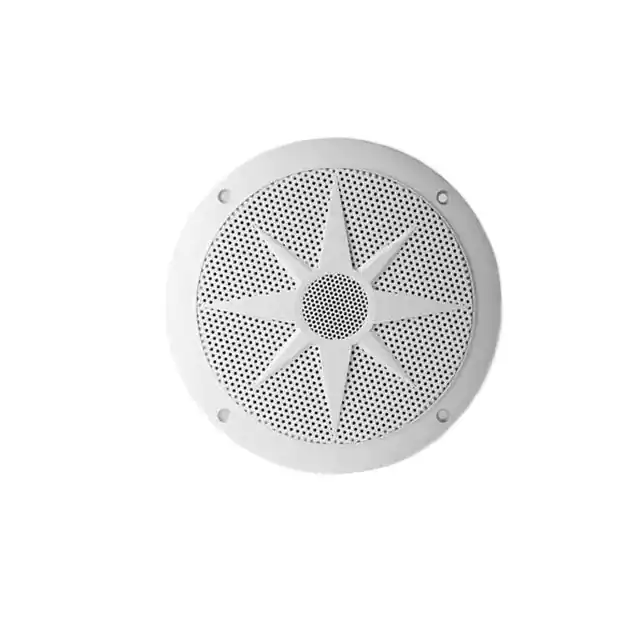

FX 16 WP - 4 OHMSPEAKER 4OHM 80W TOP PORT 86DB |
0 |
|
Veri Sayfası |
- | Bulk | Active | - | Full Range | 60 Hz ~ 20 kHz | 85Hz | 4 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 80 W | 100 W | Top | Round | Plastic | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 7.087" Dia (180.00mm) | 2.795" (71.00mm) |
|
|
50220DK 8 P 15W/100V/20 OHM |
0 |
|
Veri Sayfası |
- | Retail Package | Active | - | General Purpose | 500 Hz ~ 5.5 kHz | - | 20 Ohms | 110.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | User Defined | Round | - | - | IP66 - Dust Tight, Water Resistant | - | Wire Leads | 8.268" Dia (210.00mm) | 10.591" (269.00mm) |
|
|
1163DSM 50 FFL 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 400 Hz ~ 15 kHz | 430Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Square | - | - | - | - | Quick Connect | 5.118" L x 5.118" W (130.00mm x 130.00mm) | 1.969" (50.00mm) |
|
|
50203DK 8 100V+20 OHM |
0 |
|
Veri Sayfası |
- | Retail Package | Active | - | General Purpose | 400 Hz ~ 5 kHz | - | 20 Ohms | 107.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | User Defined | Round | - | - | IP66 - Dust Tight, Water Resistant | - | Wire Leads | 8.425" Dia (214.00mm) | 9.094" (231.00mm) |
|
|
2146FX 16 WP (PAIR) 4 OHM |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Magnetic | General Purpose | 60 Hz ~ 20 kHz | 85Hz | 4 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 80 W | 100 W | Top | Round | Plastic | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 7.087" Dia (180.00mm) | 2.795" (71.00mm) |
|
FSL-1530R01-08SPEAKR 7.51OHM 450W TOP 98.1DB |
0 |
|
Veri Sayfası |
FSL | Bulk | Active | Magnetic | Woofer | 40 Hz ~ 400 Hz | 40.43Hz | 7.51 Ohms | 98.10 | 1W/1M | Half Space Sensitivity | 450 W | - | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 15.150" Dia (384.80mm) | 6.193" (157.30mm) |
|
|
KL 13 - 100 VSPEAKER 8OHM 25W 97DB |
0 |
|
Veri Sayfası |
- | Bulk | Active | - | - | 150 Hz ~ 18 kHz | - | 8 Ohms | 97.00 | 1W/1M | Sound Pressure Level (SPL) | 25 W | 40 W | User Defined | Round | - | - | IP44 | - | Wire Leads | 7.205" Dia (183.00mm) | - |
|
|
50331KL 13 100 V |
0 |
|
Veri Sayfası |
- | Retail Package | Active | - | General Purpose | 150 Hz ~ 18 kHz | - | 8 Ohms | 97.00 | 1W/1M | Sound Pressure Level (SPL) | 25 W | 40 W | User Defined | Round | - | - | IP44 | - | Wire Leads | 7.205" Dia (183.00mm) | - |
|
|
DK 6 MW - 100 V/70 V/8 OHMSPEAKER 8OHM 10W 106DB |
0 |
|
Veri Sayfası |
- | Bulk | Active | - | - | 400 Hz ~ 5.5 kHz | - | 8 Ohms | 106.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | User Defined | Round | - | - | IP66 - Dust Tight, Water Resistant | - | Wire Leads | 6.142" Dia (156.00mm) | 8.661" (220.00mm) |
|
TWFK-60173-000SPEAKER 706OHM TOP PORT 97DB |
0 |
|
Veri Sayfası |
TWFK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 9.6 kHz | - | 706 Ohms | 97.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.197" L x 0.108" W (5.00mm x 2.73mm) | 0.250" (6.35mm) |
|
50250DK 6 MW 100 V |
0 |
|
Veri Sayfası |
- | Retail Package | Active | - | General Purpose | 400 Hz ~ 5.5 kHz | - | 8 Ohms | 106.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | User Defined | Round | - | - | IP66 - Dust Tight, Water Resistant | - | Wire Leads | 6.142" Dia (156.00mm) | 8.661" (220.00mm) |
