Hoparlörler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Teknoloji | Tür | Frekans Aralığı | Frekans - Kendi Rezonansı | Empedans | Verimlilik - dBA | Verimlilik - Test | Verimlilik - Türü | Güç - Nominal | Güç - Maksimum | Port Konumu | Şekil | Malzeme - Konik | Malzeme - Mıknatıs | Giriş Koruma | Dereceler | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS04504PR-F-WP-RSPEAKER 4OHM 5W TOP PORT 108DB |
631 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 11 kHz ~ 20 kHz | 110Hz | 4 Ohms | 108.00 | 5W/100mm | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Round | Paper, Rubber | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | - | 1.772" Dia (45.00mm) | 0.945" (24.00mm) |
|
|
AR04032MR-5-R40MM RECEIVER .02W 32OHM 115HZ I |
417 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 20 Hz ~ 20 kHz | 115Hz | 32 Ohms | 120.00 | - | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Round | - | Nd-Fe-B | IPX7 | - | - | 1.575" Dia (40.00mm) | 0.205" (5.20mm) |
|

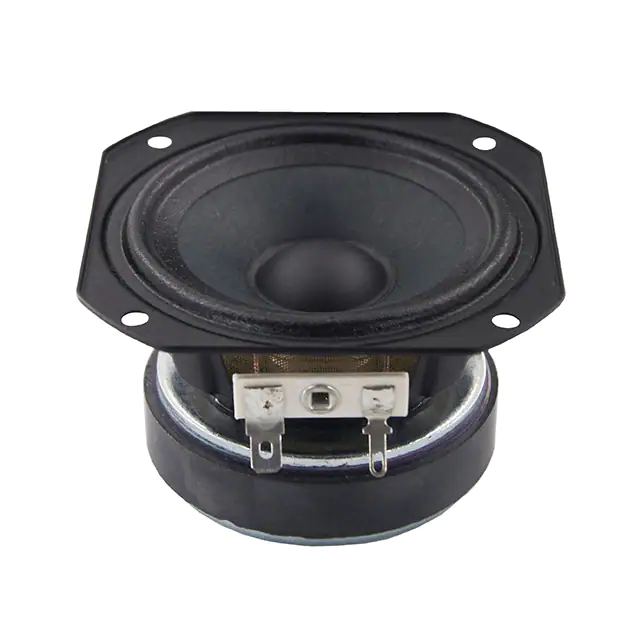

TC8FD05-04SPEAKR 4OHM 25W TOP PT 85.2DB |
142 |
|
Veri Sayfası |
TC | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 146.8Hz | 4 Ohms | 85.20 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.201" L x 3.201" W (81.30mm x 81.30mm) | - |
|
CMS0321KLXSPEAKER 8OHM 2W TOP PORT 86DB |
697 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 240 Hz ~ 15 kHz | 300Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.260" L x 1.260" W (32.00mm x 32.00mm) | 0.571" (14.50mm) |
|
|
CDSM-6631-4866MM, 4W, 8OHM, 200HZ |
461 |
|
Veri Sayfası |
CDS | Tray | Active | Magnetic | General Purpose | 160 kHz ~ 20 kHz | 200Hz | 8 Ohms | 110.00 | 4W/100mm | Sound Pressure Level (SPL) | 4 W | 5 W | Top | Round, Square Frame | Cloth, Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) | 1.220" (31.00mm) |
|

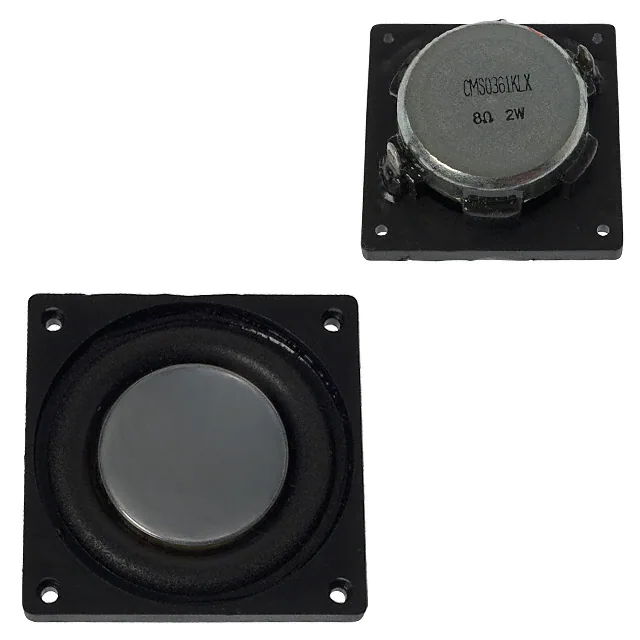

CMS0361KLXSPEAKER 8OHM 2W TOP PORT 82DB |
1,178 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 184 Hz ~ 20 kHz | 230Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.421" L x 1.421" W (36.10mm x 36.10mm) | 0.571" (14.50mm) |
|

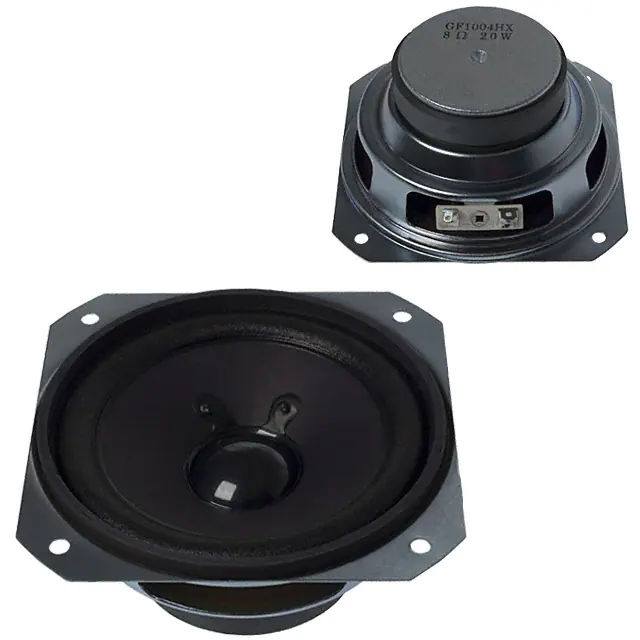

GF1004HSPEAKER 8OHM 20W TOP PORT 90DB |
2,375 |
|
Veri Sayfası |
GF | Box | Active | Magnetic | General Purpose | 100 Hz ~ 10 kHz | 100Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 20 W | 40 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) | 2.008" (51.00mm) |
|
FR 58 - 4 OHMSPEAKER 4OHM 10W TOP PORT 81DB |
104 |
|
Veri Sayfası |
- | Bulk | Active | - | General Purpose | 120 Hz ~ 20 kHz | 190Hz | 4 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round, Square Frame | Paper | - | - | - | Quick Connect | - | 1.102" (28.00mm) |
|
SC 5.9 OM - 4 OHMSPEAKER 4OHM 10W TOP PORT 84DB |
658 |
|
Veri Sayfası |
- | Bulk | Active | - | General Purpose | 90 Hz ~ 20 kHz | 170Hz | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Oval, Rectangular Frame | - | - | - | - | Quick Connect | 3.563" L x 1.988" W (90.50mm x 50.50mm) | 1.268" (32.20mm) |
|

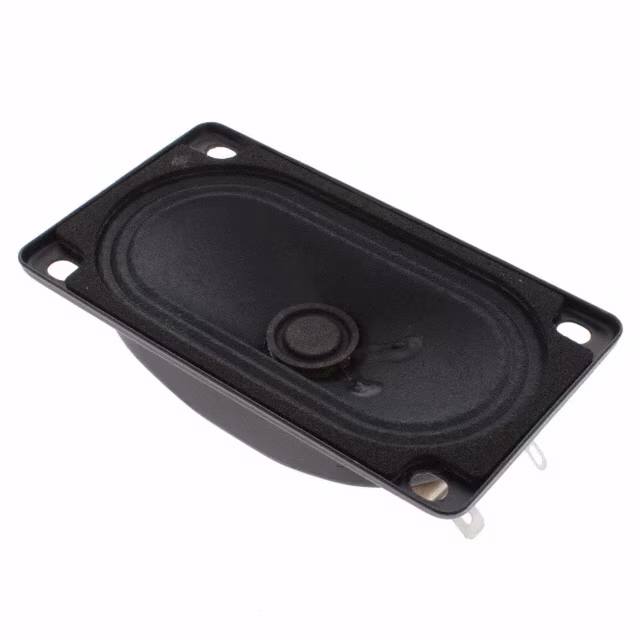

SC 5.9 ND - 4 OHMSPEAKER 4OHM 3W TOP PORT 82DB |
272 |
|
Veri Sayfası |
- | Bulk | Active | Magnetic | General Purpose | 150 Hz ~ 17 kHz | 280Hz | 4 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Oval, Rectangular Frame | - | - | - | - | Quick Connect | - | 1.122" (28.50mm) |
|
TA6FD00-04SPEAKR 3.99OHM 10W TOP PT 81.1DB |
10,677 |
|
Veri Sayfası |
TA | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 146.6Hz | 3.99 Ohms | 81.10 | 1W/1M | Half Space Sensitivity | 10 W | - | Top | Round, Square Frame | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 2.323" L x 2.323" W (59.00mm x 59.00mm) | 1.403" (35.63mm) |
|

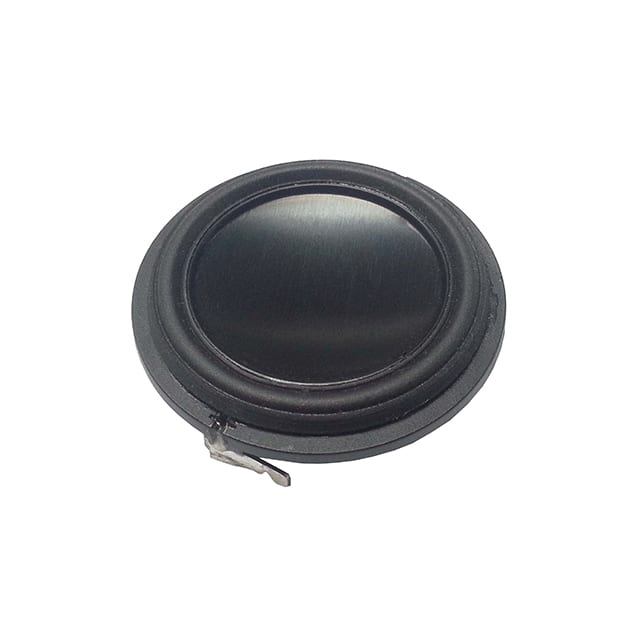

PMT-37N28AL01-04SPEAKER 3.78OHM 5W TOP PORT 81DB |
1,839 |
|
Veri Sayfası |
PMT | Bulk | Active | Magnetic | Full Range | 200 Hz ~ 20 kHz | 167.6Hz | 3.78 Ohms | 81.00 | 1W/1M | Half Space Sensitivity | 5 W | - | Top | Round | Aluminum (AI) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.614" Dia (41.00mm) | 0.465" (11.80mm) |
|
DX20BF00-04SPEAKR 3.83OHM 60W TOP PT 86.9DB |
146 |
|
Veri Sayfası |
DX | Bulk | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 822.14Hz | 3.83 Ohms | 86.90 | 1W/1M | Half Space Sensitivity | 60 W | - | Top | Round | Cloth | Ferrite | - | - | Solder Eyelet(s) | 2.598" Dia (66.00mm) | 1.417" (36.00mm) |
|
DX20BF00-08SPEAKR 8.27OHM 60W TOP PT 86.3DB |
209 |
|
Veri Sayfası |
DX | Bulk | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 810Hz | 8.27 Ohms | 86.30 | 1W/1M | Half Space Sensitivity | 60 W | - | Top | Round | Cloth | Ferrite | - | - | Solder Eyelet(s) | 2.598" Dia (66.00mm) | 1.483" (37.66mm) |
|

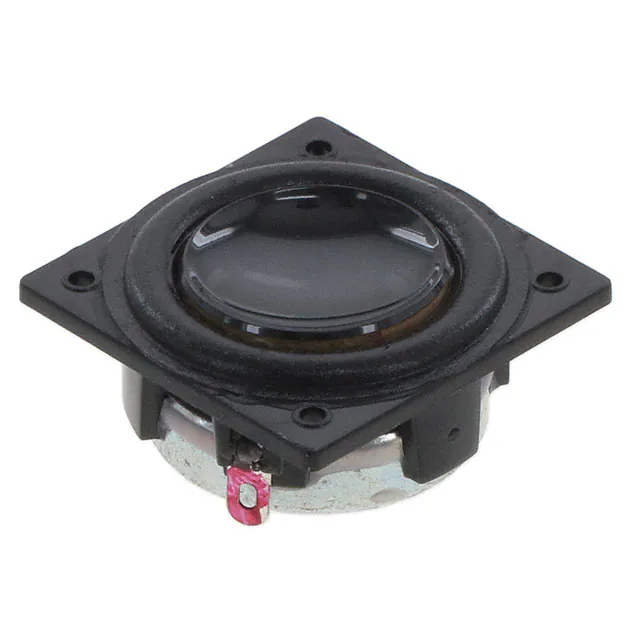

BF 32 S - 8 OHMSPEAKER 8OHM 2W TOP PORT 78DB |
305 |
|
Veri Sayfası |
Miniature Speaker | Bulk | Active | - | General Purpose | 150 Hz ~ 20 kHz | 220Hz | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 5 W | Top | Round, Square Frame | - | Nd | - | - | Quick Connect | 1.260" L x 1.260" W (32.00mm x 32.00mm) | 0.512" (13.00mm) |
|
SL 87 WPM - 4 OHMSPEAKER 4OHM 20W TOP PORT 89DB |
303 |
|
Veri Sayfası |
- | Bulk | Active | Magnetic | General Purpose | 200 Hz ~ 5 kHz | 290Hz | 4 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | Plastic | - | Waterproof | - | Quick Connect | 3.268" L x 3.268" W (83.00mm x 83.00mm) | 1.142" (29.00mm) |
|
PLS-65F25AL04-04SPEAKR 4.33OHM 25W TOP PT 82.9DB |
1,973 |
|
Veri Sayfası |
PLS | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 120.6Hz | 4.33 Ohms | 82.90 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 2.717" L x 2.717" W (69.00mm x 69.00mm) | 1.720" (43.70mm) |
|
K 23 PC - 8 OHMSPEAKER 8OHM 200MW TOP PORT 73DB |
404 |
|
Veri Sayfası |
Miniature Speaker | Bulk | Active | - | General Purpose | 900 Hz ~ 16 kHz | - | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | - | - | - | - | PC Pins | 0.906" Dia (23.00mm) | 0.339" (8.60mm) |
|
ASX08804-TP-RSPEAKER 4OHM 10W TOP PORT 106DB |
4,017 |
|
Veri Sayfası |
ASX | Tray | Active | Magnetic | Exciter | 80 Hz ~ 10.5 kHz | 220Hz | 4 Ohms | 106.00 | 100mm | Sound Pressure Level (SPL) | 10 W | 20 W | Top | Round | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 3.493" Dia (88.71mm) | 0.827" (21.00mm) |
|
|
UT-P2023SPEAKER TOP PORT RECT MEMS |
539 |
|
Veri Sayfası |
Ganymede | Tray | Active | Piezo | General Purpose | 20 Hz ~ 20 kHz | 2.7kHz | - | - | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.264" L x 0.185" W (6.70mm x 4.70mm) | 0.062" (1.58mm) |
