Hoparlörler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Teknoloji | Tür | Frekans Aralığı | Frekans - Kendi Rezonansı | Empedans | Verimlilik - dBA | Verimlilik - Test | Verimlilik - Türü | Güç - Nominal | Güç - Maksimum | Port Konumu | Şekil | Malzeme - Konik | Malzeme - Mıknatıs | Giriş Koruma | Dereceler | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-40558N-L152ASPEAKER 8OHM 500MW TOP PORT 90DB |
144 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 500Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" Dia (40.00mm) | 0.217" (5.50mm) |
|
SMS-1516MS-2-RSPEAKR 16OHM 300MW TOP PORT 85DB |
470 |
|
Veri Sayfası |
SMS | Bulk | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 16 Ohms | 85.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Square | Polyimide (PI) | SmCo | - | - | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.157" (4.00mm) |
|

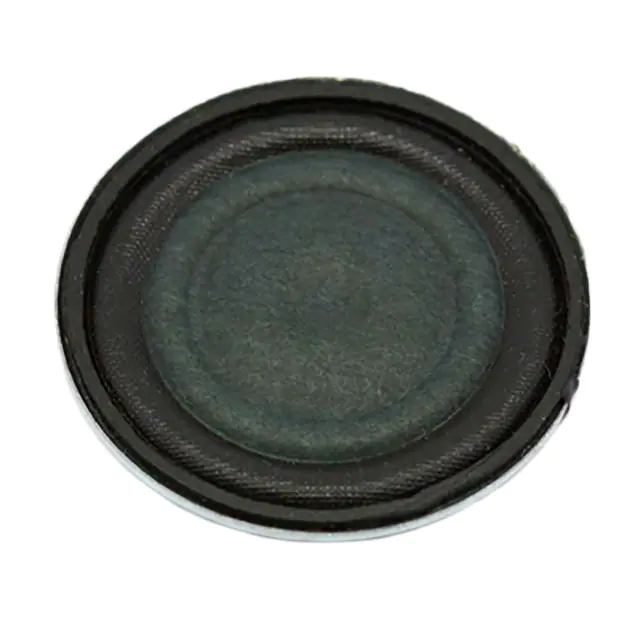

SM280508-2SPEAKER 8OHM 1.5W TOP PORT 92DB |
1,299 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 9 kHz | 550Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.220" (5.60mm) |
|

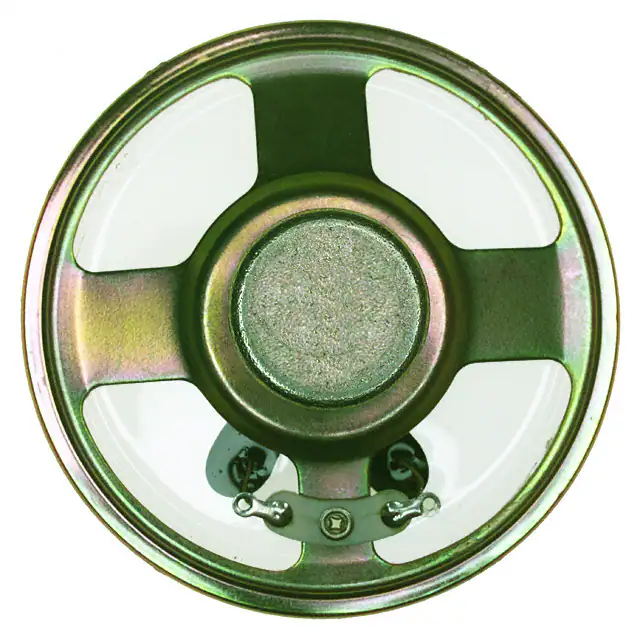

GA0501MSPEAKER 8OHM 250MW TOP PORT 85DB |
843 |
|
Veri Sayfası |
GA | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 7.8 kHz | 500Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.728" (18.50mm) |
|

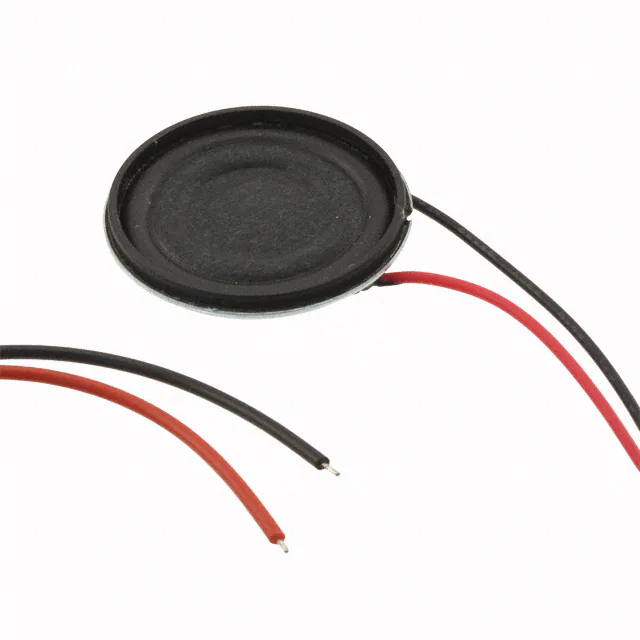

CLS0301SPEAKER 8OHM 1W TOP PORT 86DB |
158 |
|
Veri Sayfası |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 20 kHz | 550Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 1.181" Dia (30.00mm) | 0.232" (5.90mm) |
|
APR050SO-RSPEAKER TOP PORT OVAL 78HZ |
270 |
|
Veri Sayfası |
Xtreme | Tray | Active | Magnetic | General Purpose | 5 Hz ~ 20 kHz | 78Hz | - | - | - | - | - | - | Top | Oval | Aluminum (AI) | - | IP65 - Dust Tight, Water Resistant | - | Solder Pads | - | 0.132" (3.35mm) |
|
CMS-18132-18SPSPEAKER 8OHM 1W TOP PORT 95DB |
164 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 10 kHz | 500Hz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.098" (2.50mm) |
|
SW301008-1SPEAKER 8OHM 1W TOP PORT 95DB |
103 |
|
Veri Sayfası |
Agile 67 | Box | Active | Magnetic | General Purpose | 1.05 kHz ~ 20 kHz | 1.05kHz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Polyethylene | - | IP67 - Dust Tight, Waterproof | - | Wire Leads | 1.181" L x 0.689" W (30.00mm x 17.50mm) | 0.146" (3.70mm) |
|

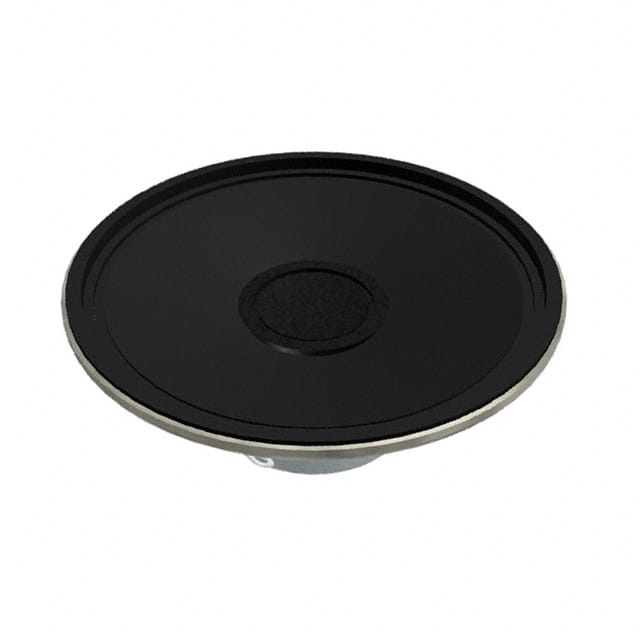

AS05008PR-2-RSPEAKER 8OHM 200MW TOP PORT 90DB |
283 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 4.5 kHz | 550Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.748" (19.00mm) |
|
SM280708-1SPEAKER 8OHM 1W TOP PORT 103DB |
262 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 10 kHz | 700Hz | 8 Ohms | 103.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.193" (4.90mm) |
|
AS04016MR-RSPEAKER 16OHM 1W TOP PORT 78DB |
657 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 5.2 kHz | 600Hz | 16 Ohms | 78.00 | 100mW/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) | 0.417" (10.60mm) |
|

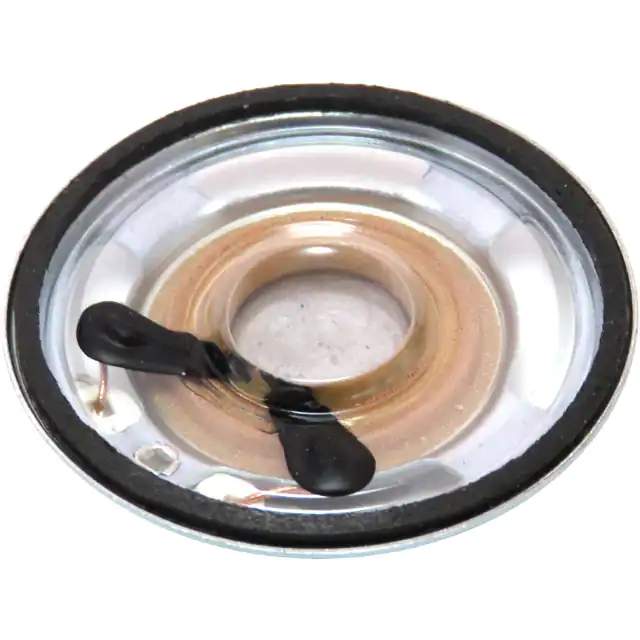

SM450608-1SPEAKR 8OHM 500MW TOP PORT 100DB |
267 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 5 kHz | 650Hz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Eyelet(s) | 1.772" Dia (45.00mm) | 0.335" (8.50mm) |
|
SM170808-1SPEAKER 8OHM 800MW TOP PORT 90DB |
150 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 10 kHz | 800Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.669" Dia (17.00mm) | 0.154" (3.90mm) |
|
CDS-27204SPEAKER 4OHM 2W TOP PORT 93DB |
256 |
|
Veri Sayfası |
CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 0.232" (5.90mm) |
|
SW380408-1SPEAKER 8OHM 2W TOP PORT 90DB |
390 |
|
Veri Sayfası |
SW | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 10 kHz | 400Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.496" L x 1.102" W (38.00mm x 28.00mm) | 0.256" (6.50mm) |
|
|
CMS-23558N-L152ASPEAKER 8OHM 1W TOP PORT 80DB |
471 |
|
- |
CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.906" Dia (23.00mm) | 0.217" (5.50mm) |
|
|
CMS-28588N-L152ASPEAKER 8OHM 2W TOP PORT 99DB |
290 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" Dia (28.00mm) | 0.217" (5.50mm) |
|
CLS0231MP-1SPEAKER 8OHM 100MW TOP PORT 72DB |
7,165 |
|
Veri Sayfası |
CLS | Tray | Active | Magnetic | Low Profile | 384 Hz ~ 20 kHz | 480Hz | 8 Ohms | 72.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.906" Dia (23.00mm) | 0.197" (5.00mm) |
|
CLS0201MASPEAKER 8OHM 500MW TOP PORT 82DB |
660 |
|
Veri Sayfası |
CLS | Tray | Active | Magnetic | Low Profile | 850 Hz ~ 9 kHz | 850Hz | 8 Ohms | 82.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.150" (3.80mm) |
|

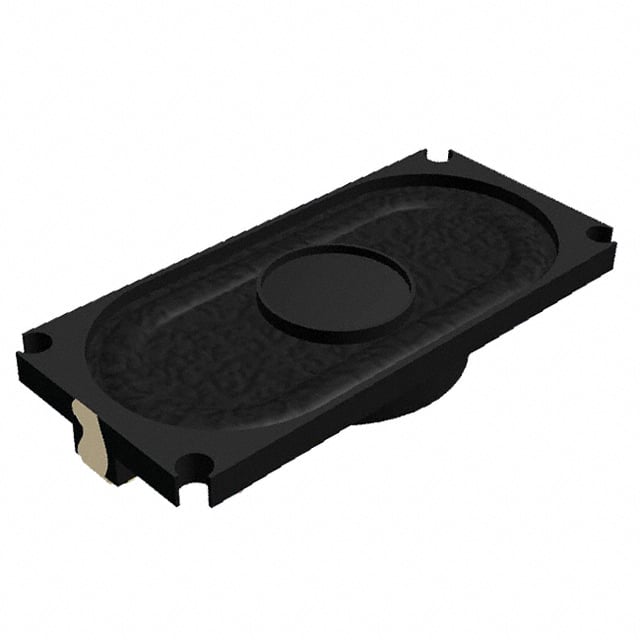

AS03508CO-7-RSPEAKER 8OHM 1W TOP PORT 83DB |
172 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.630" W (35.00mm x 16.00mm) | 0.240" (6.10mm) |
