Hoparlörler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Teknoloji | Tür | Frekans Aralığı | Frekans - Kendi Rezonansı | Empedans | Verimlilik - dBA | Verimlilik - Test | Verimlilik - Türü | Güç - Nominal | Güç - Maksimum | Port Konumu | Şekil | Malzeme - Konik | Malzeme - Mıknatıs | Giriş Koruma | Dereceler | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM151708-1SPEAKER 8OHM 300MW TOP PORT 87DB |
64 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 1.7 kHz ~ 20 kHz | - | 8 Ohms | 87.00 | 100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | PC Pins | 0.591" Dia (15.00mm) | 0.295" (7.50mm) |
|

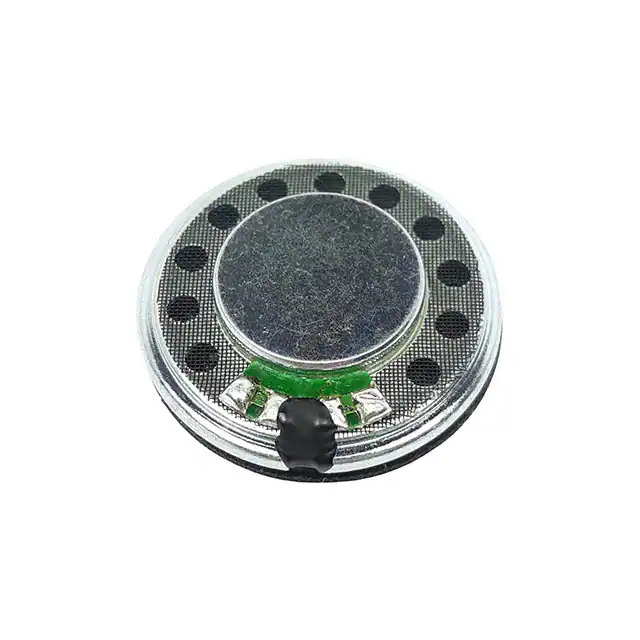

SP-2806YSPEAKER 8OHM 1W TOP PORT 90DB |
95 |
|
Veri Sayfası |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 450Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | - | - | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.256" (6.50mm) |
|
SW181004-1SPEAKER 4OHM 1W TOP PORT 92DB |
30 |
|
Veri Sayfası |
SW | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 10 kHz | 900Hz | 4 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" Dia (18.00mm) | 0.157" (4.00mm) |
|
E-2708SPEAKER 8OHM 1W TOP PORT 90DB |
66 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | Exciter | 350 Hz ~ 6.5 kHz | 350Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | - | - | Solder Pads | 1.035" Dia (26.30mm) | 0.472" (12.00mm) |
|
AS01508AO-WP-RSPEAKER 8OHM 700MW TOP PORT 94DB |
81 |
|
Veri Sayfası |
Slim Line Micro | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 14 kHz | 500Hz | 8 Ohms | 94.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.126" (3.20mm) |
|

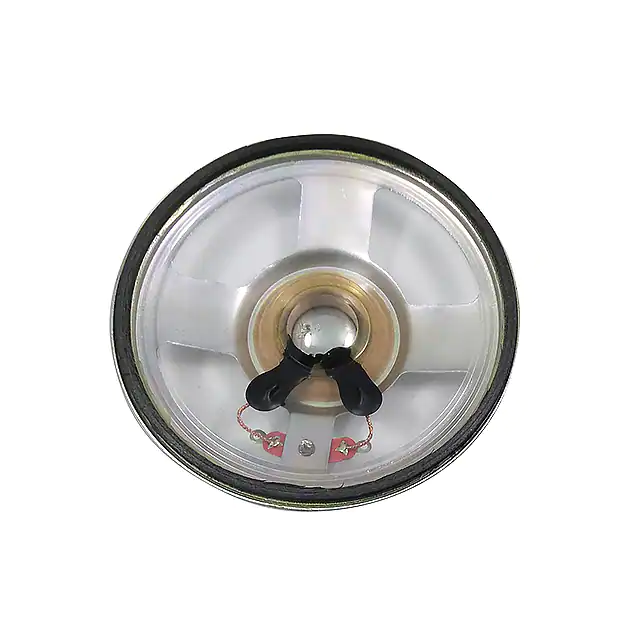

WSP-7608SPEAKER 8OHM 2W TOP PORT 90DB |
88 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 8 kHz | 350Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 3.012" Dia (76.50mm) | 0.669" (17.00mm) |
|

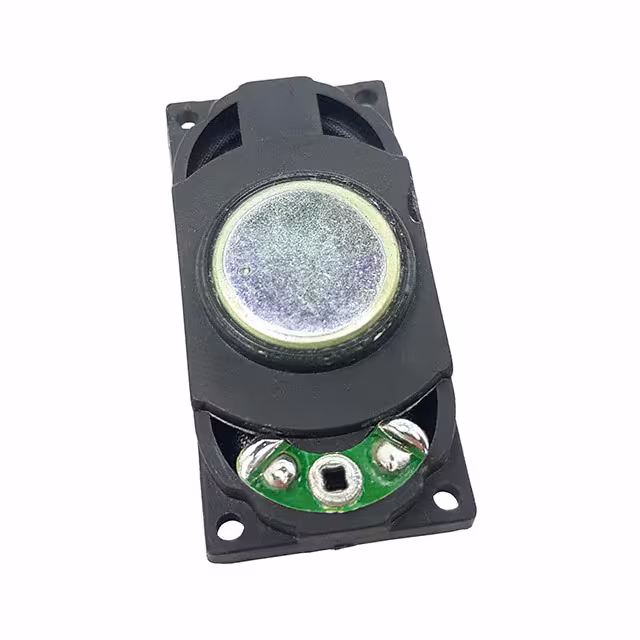

SP-4009-1YSPEAKER 8OHM 2W TOP PORT 90DB |
68 |
|
Veri Sayfası |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 10 kHz | 750Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | - | - | - | - | - | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.346" (8.80mm) |
|
AS01508AO-3-SC-RSPEAKER 8OHM 700MW TOP PORT 94DB |
82 |
|
Veri Sayfası |
Slim Line Micro | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 14 kHz | 500Hz | 8 Ohms | 94.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.130" (3.30mm) |
|

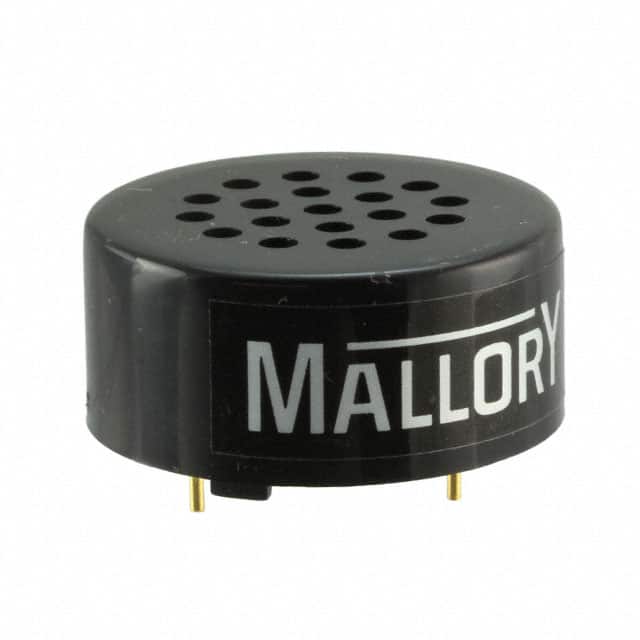

PB-3212PKSPEAKER 8OHM 100MW TOP PORT 85DB |
77 |
|
Veri Sayfası |
PB | Bulk | Active | Magnetic | General Purpose | 1.25 kHz ~ 4 kHz | 1250Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | PC Pins | 1.252" Dia (31.80mm) | 0.591" (15.00mm) |
|
CMS-28588N-L152BSPEAKER 8OHM 2W TOP PORT 99DB |
68 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" Dia (28.00mm) | 0.217" (5.50mm) |
|
SW400508-1SPEAKER 8OHM 500MW TOP PORT 92DB |
28 |
|
Veri Sayfası |
SW | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 10 kHz | 550Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" Dia (40.00mm) | 0.220" (5.60mm) |
|
SW230704-1SPEAKER 4OHM 1W TOP PORT 90DB |
78 |
|
Veri Sayfası |
SW | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 10 kHz | 700Hz | 4 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.906" Dia (23.00mm) | 0.157" (4.00mm) |
|
AS03508CO-2-RSPEAKER 8OHM 1W TOP PORT 84DB |
46 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.787" W (35.00mm x 20.00mm) | 0.315" (8.00mm) |
|
AS06004CO-C-RSPEAKER 4OHM 2W TOP PORT 87DB |
68 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 650Hz | 4 Ohms | 87.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 2.835" L x 1.299" W (72.00mm x 33.00mm) | 0.709" (18.00mm) |
|
SW250508-1SPEAKER 8OHM 1W TOP PORT 87DB |
64 |
|
Veri Sayfası |
SW | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 10 kHz | 550Hz | 8 Ohms | 87.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.630" W (25.00mm x 16.00mm) | 0.264" (6.70mm) |
|
SW280708-1SPEAKER 8OHM 1.5W TOP PORT 92DB |
31 |
|
Veri Sayfası |
SW | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 10 kHz | 700Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.102" Dia (28.00mm) | 0.217" (5.50mm) |
|
AS04008PO-2-LW152-RSPEAKER 8OHM 1W TOP PORT 84DB |
40 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Paper | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.114" W (40.00mm x 28.30mm) | 0.472" (12.00mm) |
|

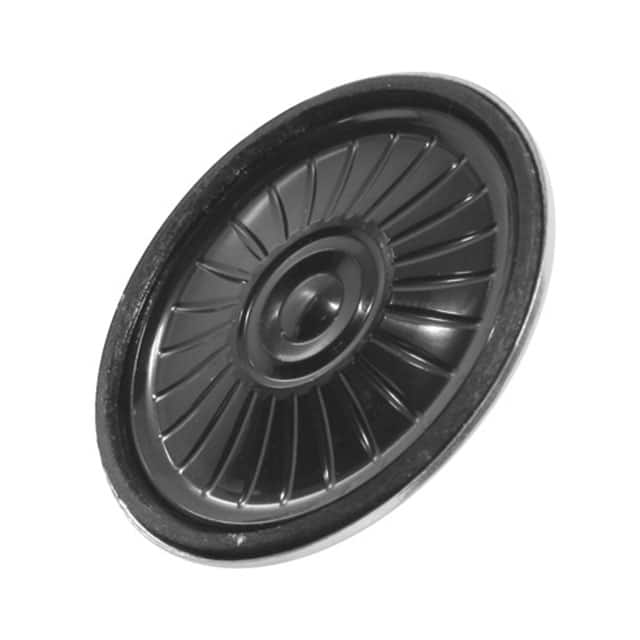

SM400608-1SPEAKER 8OHM 1W TOP PORT 90DB |
49 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.575" Dia (40.00mm) | 0.201" (5.10mm) |
|

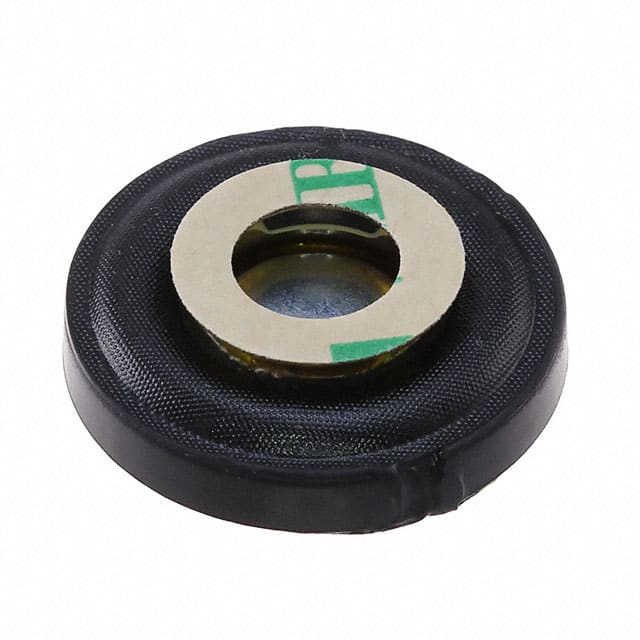

ASX02104-RSPEAKER 4OHM 250MW TOP PORT 72DB |
38 |
|
Veri Sayfası |
ASX | Tray | Active | Magnetic | Exciter | 640 Hz ~ 10.5 kHz | 640Hz | 4 Ohms | 72.00 | 1W/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | - | Nd-Fe-B | - | - | Solder Pads | 0.823" Dia (20.90mm) | 0.335" (8.50mm) |
|
SP-4029-1SPEAKER 4OHM 2W TOP PORT 85DB |
52 |
|
Veri Sayfası |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 4 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | - | 0.472" (12.00mm) |
