Hoparlörler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Teknoloji | Tür | Frekans Aralığı | Frekans - Kendi Rezonansı | Empedans | Verimlilik - dBA | Verimlilik - Test | Verimlilik - Türü | Güç - Nominal | Güç - Maksimum | Port Konumu | Şekil | Malzeme - Konik | Malzeme - Mıknatıs | Giriş Koruma | Dereceler | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSS-10237-58SPEAKER 8OHM 5W TOP PORT 88DB |
97 |
|
Veri Sayfası |
CSS | Box | Active | Magnetic | General Purpose | 224 Hz ~ 6 kHz | 280Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) | 1.457" (37.00mm) |
|
BF 45 S - 4 OHMSPEAKER 4OHM 4W TOP PORT 79DB |
30 |
|
Veri Sayfası |
Miniature Speaker | Bulk | Active | - | General Purpose | 90 Hz ~ 20 kHz | 160Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round | - | - | - | - | Quick Connect | - | 1.024" (26.00mm) |
|
RAB-32033-000SPEAKER 50OHM TOP PORT 106DB |
82 |
|
Veri Sayfası |
RAB | Tray | Active | Magnetic | Receiver, Balanced Armature | 20 Hz ~ 11.8 kHz | - | 50 Ohms | 106.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.203" L x 1.117" W (5.15mm x 2.96mm) | 0.203" (5.15mm) |
|
AS06606SR-RSPEAKER 6OHM 15W TOP PORT 90DB |
60 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 1.5 kHz ~ 20 kHz | - | 6 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 30 W | Top | Round | Cloth | Nd-Fe-B | - | - | Solder Pads | - | 1.063" (27.00mm) |
|
SPKR.6.8.ASPEAKER 8OHM 30W TOP PORT 30DB |
93 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 10 Hz ~ 20 kHz | - | 8 Ohms | 30.00 | - | Sound Pressure Level (SPL) | 30 W | 60 W | Top | Round | - | - | - | - | Connector | - | 2.520" (64.00mm) |
|
|
G3SB001SPEAKER 16OHM TOP PORT 92DB |
15 |
|
Veri Sayfası |
- | Bulk | Active | - | General Purpose | - | - | 16 Ohms | 92.00 | 1M | - | - | - | Top | Square | Polyester, Polyethylene Terephthalate (PET) | - | Water Resistant | - | - | 4.409" L x 4.409" W (112.00mm x 112.00mm) | 1.969" (50.00mm) |
|
|
CI-30120-A42SPEAKER 41OHM 124.5DB |
25 |
|
- |
CI | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4.6 kHz | - | 41 Ohms | 124.50 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FR 6,5" - 8 OHMSPEAKER 8OHM 40W TOP PORT 87DB |
7 |
|
Veri Sayfası |
- | Bulk | Active | Magnetic | Full Range | 70 Hz ~ 20 kHz | 75Hz | 8 Ohms | 87.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | - | - | Water Resistant | - | Quick Connect | 6.732" Dia (171.00mm) | 2.323" (59.00mm) |
|
|
FED-30027-I24SPEAKER 116OHM TOP PORT 102.5DB |
25 |
|
Veri Sayfası |
FED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 116 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
ED-29689-M11SPEAKER 10.2OHM 104DB |
40 |
|
Veri Sayfası |
ED | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 10.2 Ohms | 104.00 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ED-27851-M05SPEAKER RECTANGULAR |
25 |
|
Veri Sayfası |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | - | - | - | - | - | - | - | - | - | Rectangular | - | - | - | - | Solder Pads | - | - |
|
|
CI-22955-143SPEAKER 47OHM 125.5DB RECT |
21 |
|
Veri Sayfası |
CI | Tray | Active | Magnetic | Receiver, Balanced Armature | 25 Hz ~ 5.5 kHz | - | 47 Ohms | 125.50 | - | - | - | - | - | Rectangular | - | - | - | - | Solder Pads | - | - |
|
DL 8 - 8 OHMSPEAKER 8OHM 10W TOP PORT 90DB |
36 |
|
Veri Sayfası |
- | Bulk | Active | Magnetic | General Purpose | 90 Hz ~ 18 kHz | 190Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 30 W | Top | Round | - | - | IP54 | - | Wire Leads | 4.134" Dia (105.00mm) | 1.496" (38.00mm) |
|

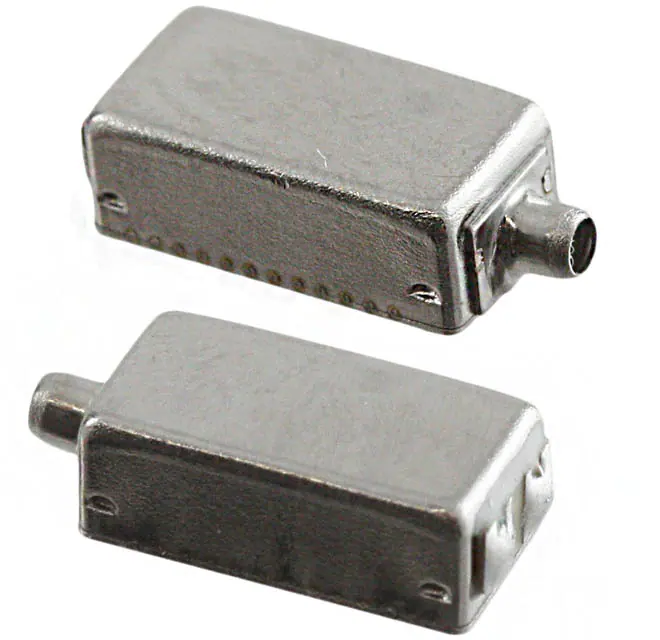

TEC-30033-000SPEAKER 31OHM TOP PORT 107DB |
40 |
|
Veri Sayfası |
TEC | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.49 kHz | - | 31 Ohms | 107.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.161" W (7.87mm x 4.09mm) | 0.112" (2.84mm) |
|
|
FK-30817-000SPEAKER SMD |
100 |
|
- |
FK | Tray | Active | Magnetic | Receiver, Balanced Armature | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

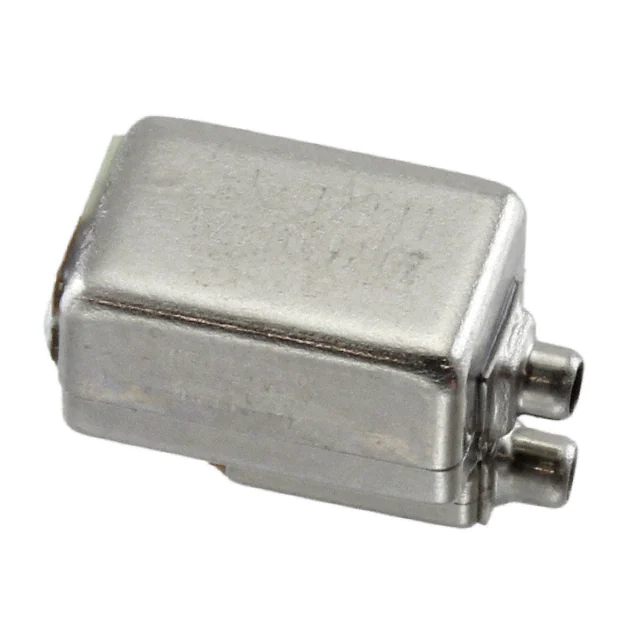

GU-32829-000SPEAKER 17OHM TOP PORT 113.5DB |
100 |
|
Veri Sayfası |
GU | Tray | Active | Magnetic | Receiver, Balanced Armature | 70 Hz ~ 9.9 kHz | - | 17 Ohms | 113.50 | - | Sound Pressure Level (SPL) | - | - | Top, Dual Port | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) | 0.310" (7.87mm) |
|
|
FK-26433-000SPEAKER 940OHM SIDE PORT 93.5DB |
100 |
|
Veri Sayfası |
FK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.6 kHz | - | 940 Ohms | 93.50 | - | Sound Pressure Level (SPL) | - | - | Side | Rectangular | - | - | - | - | Solder Pads | 0.197" L x 0.108" W (5.00mm x 2.73mm) | 0.197" (5.00mm) |
|
FH-23375-000SPEAKER 553OHM TOP PORT 96DB |
97 |
|
Veri Sayfası |
FH | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4.5 kHz | - | 553 Ohms | 96.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.201" L x 0.111" W (5.09mm x 2.80mm) | 0.104" (2.64mm) |
|

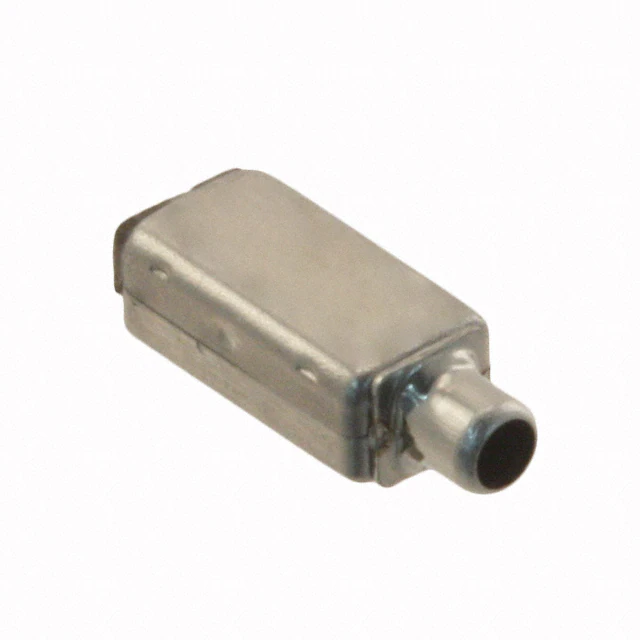

FK-23451-000SPEAKER 630OHM TOP PORT 95.5DB |
50 |
|
Veri Sayfası |
FK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.5 kHz | - | 630 Ohms | 95.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.197" L x 0.108" W (5.00mm x 2.73mm) | 0.197" (5.00mm) |
|
|
SWFK-32254-000SPEAKER 7.2OHM TOP PORT 97DB |
96 |
|
Veri Sayfası |
SWFK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 7.6 kHz | - | 7.2 Ohms | 97.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.197" L x 0.108" W (5.00mm x 2.73mm) | 0.250" (6.35mm) |
