Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZA028MDCM1BUZZER PIEZO 30.74MM PNL MNT |
12 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Chime | Repeating every 3 Sec | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|

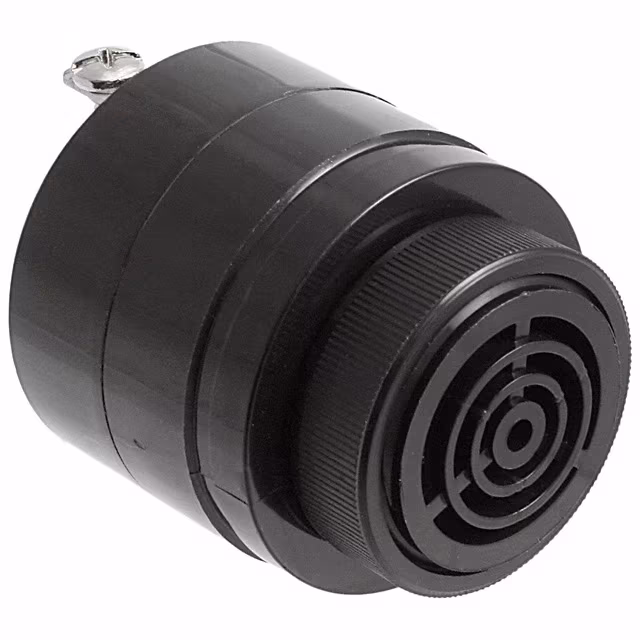

SC110JRBUZZER PIEZO 42.85MM PNL MNT |
22 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
ZT028LDIC3RBUZZER PIEZO 24V 30.74MM PNL MNT |
21 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Red | Pulse, Slow, Visual Indicator | 1 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|

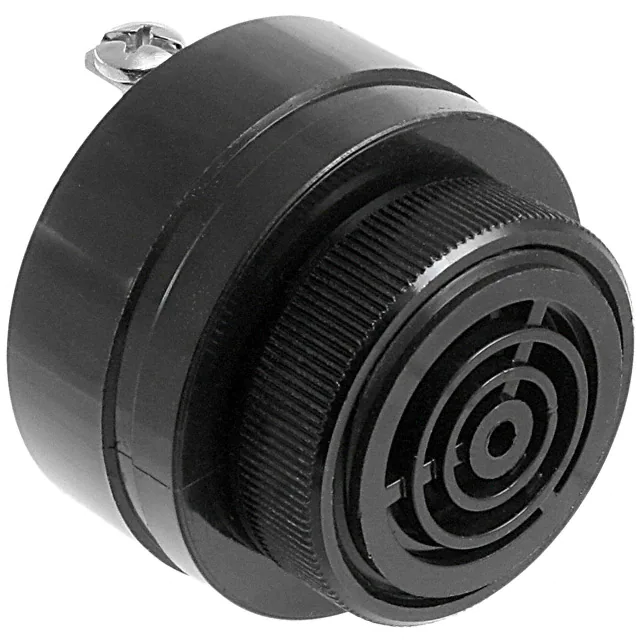

SC628MNBUZZER PIEZO 42.98MM PNL MNT |
25 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
31-801.002BUZZER - 0.945" L X 0.709" W SMD |
19 |
|
Veri Sayfası |
31 | Bulk | Active | Indicator, Internally Driven | DC | - | - | - | - | - | - | - | - | Top | - | - | - | IP40 | Surface Mount | Solder Tabs | 0.945" L x 0.709" W (24.00mm x 18.00mm) | 1.831" (46.50mm) |
|
SC628ANPBUZZER PIEZO 42.98MM PNL MNT |
16 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
ZT028LDIC1RBUZZER PIEZO 24V 30.74MM PNL MNT |
17 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
31-810.005BUZZER - 0.945" L X 0.709" W SMD |
17 |
|
Veri Sayfası |
31 | Bulk | Active | Indicator, Internally Driven | AC, DC | - | - | - | - | - | - | - | - | Top | - | - | - | IP40 | Surface Mount | Solder Tabs | 0.945" L x 0.709" W (24.00mm x 18.00mm) | 1.831" (46.50mm) |
|
XVS10BMWBUZZER 24V153.2MMX114MMBLACK |
8 |
|
Veri Sayfası |
Harmony XVS | Box | Active | - | AC, DC | 24 V | - | - | - | Siren | - | - | 300mA | User Defined | -30°C ~ 50°C | CE | - | IP53 | Bracket Mount | - | 6.031" L x 4.488" W (153.20mm x 114.00mm) | 4.488" (114.00mm) |
|
PT-1403BUZZER PIEZO 9V 14MM CUSTOM |
170 |
|
Veri Sayfası |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 30V | 5.2kHz | Piezo | Single Tone | - | 80dB @ 9V, 10cm | 5mA | Top | -20°C ~ 60°C | - | - | - | Custom | Wire Leads | 0.551" Dia (14.00mm) | 0.132" (3.35mm) |
|
AT-1220-TT-8-RBUZZER MAGNETIC 1.5V 12MM TH |
999 |
|
Veri Sayfası |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Electromechanical/Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.343" (8.70mm) |
|
CPT-14146-80TBUZZER PIEZO 10V 14MM TH |
661 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 10 V | 30V | 4kHz | Piezo | - | - | 80dB @ 10V, 10cm | 7mA | Top | -30°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.551" Dia (14.00mm) | 0.264" (6.70mm) |
|
|
CEM-1201(50)BUZZER MAGNETIC 1.5V 12.00MM TH |
999 |
|
Veri Sayfası |
CEM | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.354" (9.00mm) |
|
CMT-1285C-015BUZZER MAGNETIC 1.5V 12.00MM TH |
990 |
|
Veri Sayfası |
CMT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 35mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.354" (9.00mm) |
|
CSQ-601BPBUZZER MAGNETIC 1.5V 12.00MM TH |
548 |
|
Veri Sayfası |
CSQ | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 70dB @ 1.5V, 10cm | 35mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.236" (6.00mm) |
|
AT-1127-ST-HT-RBUZZER MAGNETIC 3V 9MM TH |
196 |
|
Veri Sayfası |
AT | Box | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 5V | 2.7kHz | Electromechanical/Magnetic | - | - | 85dB @ 3V, 10cm | 80mA | Side | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.169" (4.30mm) |
|
|
AT-1220-TT-11-RBUZZER MAGNETIC 1.5V 12MM TH |
26 |
|
Veri Sayfası |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 4V | 2.048kHz | Electromechanical/Magnetic | Single Tone | - | 78dB @ 1.5V, 10cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.236" (6.00mm) |
|
CPT-2207-84TBUZZER PIEZO 10V 22MM TH |
491 |
|
Veri Sayfası |
CPT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 1 ~ 30V | 4kHz | Piezo | - | - | 84dB @ 10V, 10cm | 6mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.295" (7.50mm) |
|

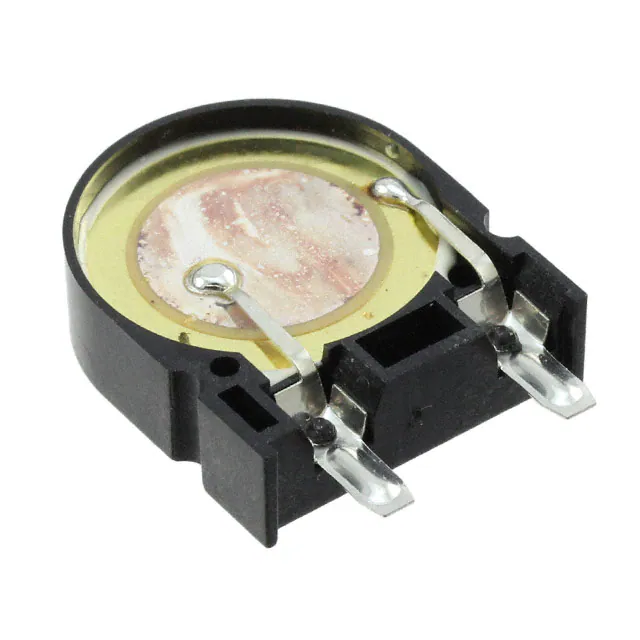

PT-2707BUZZER PIEZO 3V 22X7MM W TH |
92 |
|
Veri Sayfası |
PT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 30V | 2kHz | Piezo | Single Tone | - | 70dB @ 3V, 10cm | 1mA | Side | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.866" L x 0.276" W (22.00mm x 7.00mm) | 1.055" (26.80mm) |
|
GT-1206ABUZZER MAGNETIC 5V 12MM TH |
73 |
|
Veri Sayfası |
GT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 1 ~ 2V | 2.7kHz | Magnetic | Single Tone | - | 75dB @ 5V, 10cm | 15mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.272" (6.90mm) |
