Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC648MAHBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 19mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
|
SC616WXYBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.325kHz | Piezo | Pin Selectable | 0.5 ~ 2.5 PPS | 62dB @ 6V, 61cm | 6 ~ 27mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|

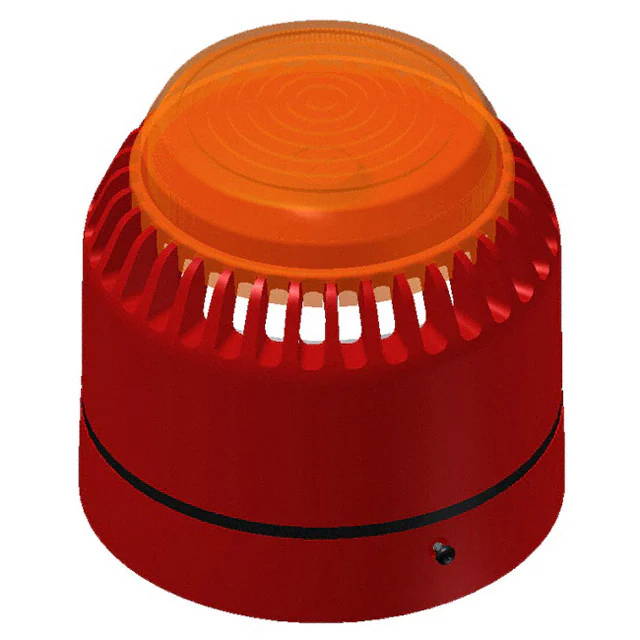

AVW-15SBR-AL-24BUZZER PIEZO 24V 92MM BASE |
0 |
|
Veri Sayfası |
AVW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 18 ~ 28V | Multiple | Piezo | Pin Selectable, Visual Indicator | Variable | 88dB @ 24V, 100cm | - | Top | -10°C ~ 55°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.622" Dia (92.00mm) | 3.602" (91.50mm) |
|

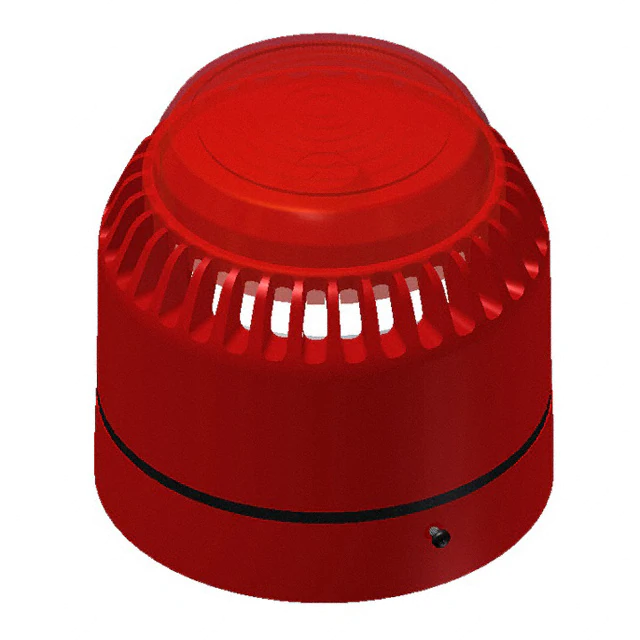

AVW-15SBR-RL-24BUZZER PIEZO 24V 92MM BASE |
0 |
|
Veri Sayfası |
AVW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 18 ~ 28V | Multiple | Piezo | Pin Selectable, Visual Indicator | Variable | 88dB @ 24V, 100cm | - | Top | -10°C ~ 55°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.622" Dia (92.00mm) | 3.602" (91.50mm) |
|
|
ZT028LDCM1RBUZZER 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | - | DC | - | 20 ~ 28V | 3.9kHz | - | Chime | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 1.710" (43.43mm) |
|
|
ZT016LDSR8RBUZZER PIEZO IND PNL MNT |
0 |
|
Veri Sayfası |
- | Bulk | Active | - | - | - | 9 ~ 16V | - | - | - | - | - | - | - | - | cUL | - | - | - | Terminal Block | - | - |
|
|
ZT016LDSR9RBUZZER PIEZO IND PNL MNT |
0 |
|
Veri Sayfası |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZT028LDSR9RBUZZER 22MM 20-28V LED RED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZT120LAFP1B22MM ALARM +LED 90-120 VAC LOUD; |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
AVW-15SBR-RL-12BUZZER PIEZO 12V 92MM BASE |
0 |
|
Veri Sayfası |
AVW | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 18V | Multiple | Piezo | Pin Selectable, Visual Indicator | Variable | 83dB @ 12V, 100cm | - | Top | -10°C ~ 55°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.622" Dia (92.00mm) | 3.602" (91.50mm) |
|
|
ZT120LAFP1Y22MM ALARM +LED 90-120 VAC LOUD; |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZT120LAFP1G22MM ALARM +LED 90-120 VAC LOUD; |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
ZT028LAIC1GBUZZER PIEZO 24V 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SC628MPGBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 70dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
|
|
ZT028LAMP1RBUZZER 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | - | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Pulse, Medium | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 1.710" (43.43mm) |
|
|
ZT028LDCM1R1522MM ALARM +LED;20-28 VDC; 85-9 |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.9kHz | - | Chime | Repeating every 3 Sec | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SC628MAHBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
|
|
ZT028LDCM1R3022MM ALARM +LED;20-28 VDC; 85-9 |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.9kHz | - | Chime | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
ZT028LAIC2RBUZZER PIEZO 24V 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Pulse, Fast, Visual Indicator | 10 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZT120LADP3RBUZZER 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | - | AC | - | 90 ~ 120V | 3.9kHz | - | Double Pulse, Slow | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 1.710" (43.43mm) |
