Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ11N-AC110BUZZER |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZT028LAFP1R3022MM ALARM+LED;20-28 VAC/DC; 85 |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZT028LAFP1R1522MM ALARM+LED;20-28 VAC/DC; 85 |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
ZT028LAIC2GBUZZER PIEZO 24V 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Pulse, Fast, Visual Indicator | 10 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZT028LAIC3GBUZZER PIEZO 24V 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Pulse, Slow, Visual Indicator | 1 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZT028LAIC3BBUZZER 24V 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | - | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | - | Pulse, Slow | - | 85dB @ 20V, 61cm | 25mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 1.710" (43.43mm) |
|
|
ZT120LAFP1R30BUZZER 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | - | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 1.710" (43.43mm) |
|
|
ZT028LAFP1YBUZZER 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | - | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Pulse, Fast | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 1.710" (43.43mm) |
|
|
ZT120LACTY30BUZZER 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | - | AC | - | 90 ~ 120V | 3.9kHz | - | Single Tone | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 1.710" (43.43mm) |
|
ZT028LDMT7RBUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.9kHz | Piezo | Pin Selectable, Visual Indicator | Variable | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SCS045MD7DT2SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 45V | 700Hz | Piezo | Dual Tone | - | 80dB @ 10V, 61cm | 50mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 2.459" (62.45mm) |
|
|
SC628MWBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Warble, Fast | 2 ~ 10 PPS | 70dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
14015060BUZZER MULTI SOUNDER 110-24 |
0 |
|
Veri Sayfası |
- | Box | Active | - | - | - | 115 ~ 230V | - | - | Multiple Tone | - | - | - | - | -40°C ~ 70°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|

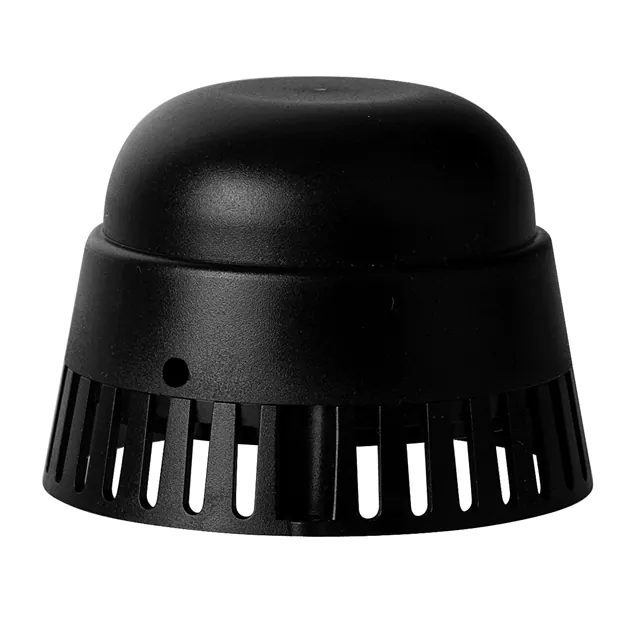

13300075BUZZER 24V |
0 |
|
Veri Sayfası |
- | Box | Active | - | - | 24 V | - | - | - | Siren, Multiple Tone | - | - | - | - | -20°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
13400075BUZZER 24V |
0 |
|
Veri Sayfası |
- | Box | Active | - | - | 24 V | - | - | - | Siren, Multiple Tone | - | - | - | - | -20°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
|
ZT028LACM1RBUZZER 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | - | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Chime | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 1.710" (43.43mm) |
|
|
ZT120LACM1RBUZZER 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | - | AC | - | 90 ~ 120V | 3.9kHz | - | Chime | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 1.710" (43.43mm) |
|
|
SC110MHBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 4.5kHz | Piezo | Single Tone | - | 71dB @ 30V, 61cm | 4.5 ~ 18mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
ZT120LACM1R3022MM ALARM +LED 90-120 VAC LOUD; |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Chime | Repeating every 3 Sec | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZT120LACM1R1522MM ALARM +LED 90-120 VAC LOUD; |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Chime | Repeating every 3 Sec | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
