DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9WL0812H4001DC AXIAL FAN 80X25 12V TACH |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 1.44 W | - | 3 Wire Leads | - | - | - | - |
|
|
9WL0824H4001DC AXIAL FAN 80X25 24V TACH |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 1.2 W | - | 3 Wire Leads | - | - | - | - |
|
|
9WL0824L400180X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 22.6 CFM (0.633m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 720 mW | 2300 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WL0824H4D00180X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL0812H4D00180X25MM 12V; SPLASH & DUST PROOF |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL0812L400180X25MM 12V; SPLASH & DUST PROOF |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 22.6 CFM (0.633m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 720 mW | 2300 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WL0824F400180X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.08 W | 3300 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
19041018AFAN MOTOR IMP 24VDC 142W 3530RPM |
0 |
|
Veri Sayfası |
Diplomat | Bulk | Active | 24VDC | Round - 227mm Dia | 72.00mm | 750.0 CFM (21.00m³/min) | 3.400 in H2O (846.9 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 80.0dB(A) | 142 W | 3530 RPM | 4 Wire Leads | - | - | - | 3.5 lbs (1.6 kg) |
|
|
19041021AFAN MOTOR IMP 48VDC 142W 3530RPM |
0 |
|
Veri Sayfası |
Diplomat | Bulk | Active | 48VDC | Round - 227mm Dia | 72.00mm | 750.0 CFM (21.00m³/min) | 3.100 in H2O (772.2 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 80.0dB(A) | 160 W | 3530 RPM | 4 Wire Leads | - | - | - | 3.5 lbs (1.6 kg) |
|
|
19041012AFAN MOTOR IMP 24VDC 149W 3550RPM |
0 |
|
Veri Sayfası |
Diplomat | Bulk | Active | 24VDC | Round - 227mm Dia | 71.30mm | 750.0 CFM (21.00m³/min) | 3.220 in H2O (802.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 78.7dB(A) | 124.8 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|
|
19041015AFAN MOTOR IMP 48VDC 149W 3550RPM |
0 |
|
Veri Sayfası |
Diplomat | Bulk | Active | 48VDC | Round - 227mm Dia | 71.30mm | 750.0 CFM (21.00m³/min) | 3.220 in H2O (802.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 78.7dB(A) | 124.8 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|
|
9WL0824J400280X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
9LG1248G1002FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 38.4 W | 6550 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
|
9LG1248F1002120X38MM 48V, HIGH PERF LONG LIF |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG1248M1002120X38MM 48V, HIGH PERF LONG LIF |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG1248M1001120X38MM 48V, HIGH PERF LONG LIF |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 3.36 W | 2100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9LG1248F1D001120X38MM 48V, HIGH PERF LONG LIF |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|

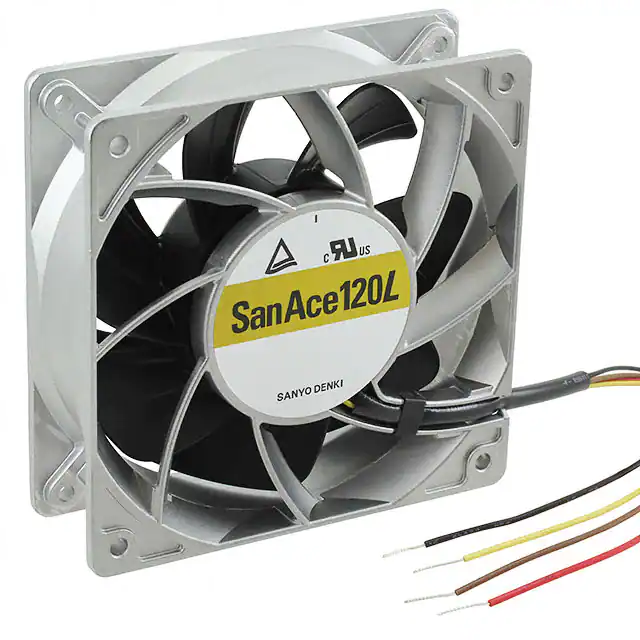

9LG1248P1H001FAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 176.6 CFM (4.94m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 16.8 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
|
9CRA0824G8D00180X80MM 24V,COUNTER ROTATING,LOW |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 80.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
RG125-19/12NMFAN BLOWER CF 180X40MM 12VDC |
0 |
|
Veri Sayfası |
RG125N | Bulk | Active | 12VDC | Square - 180mm L x 180mm H | 40.00mm | 35.3 CFM (0.988m³/min) | - | Ball | Blower, Centrifugal | - | 48.0dB(A) | 2 W | 1750 RPM | 2 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 1.6 lbs (725.7 g) |
