DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0612H4021FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.32 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0624F402FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.2 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0624F4021FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.2 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0624H402FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0624H4021FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0624H4D01FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0624M402FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 960 mW | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0812T4H12FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Thermistor, External | 29.0dB(A) | 1.68 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

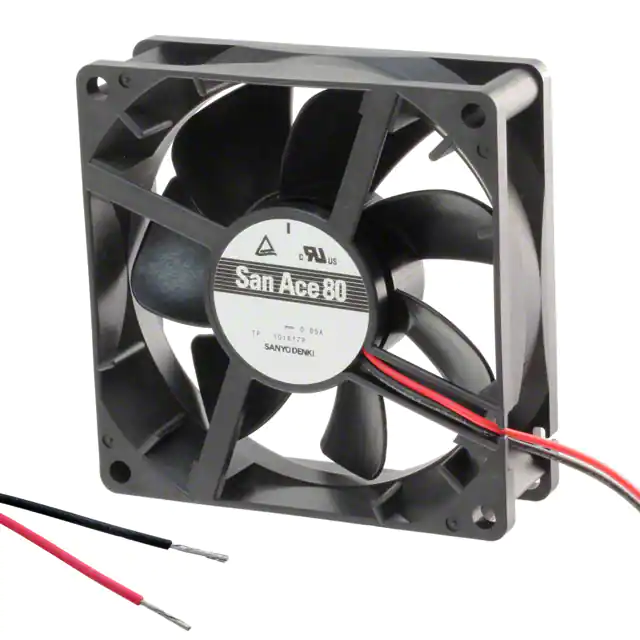

109R0812T4H122FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.151 in H2O (37.7 Pa) | Ball | Tubeaxial | Thermistor | 29.0dB(A) | 1.68 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

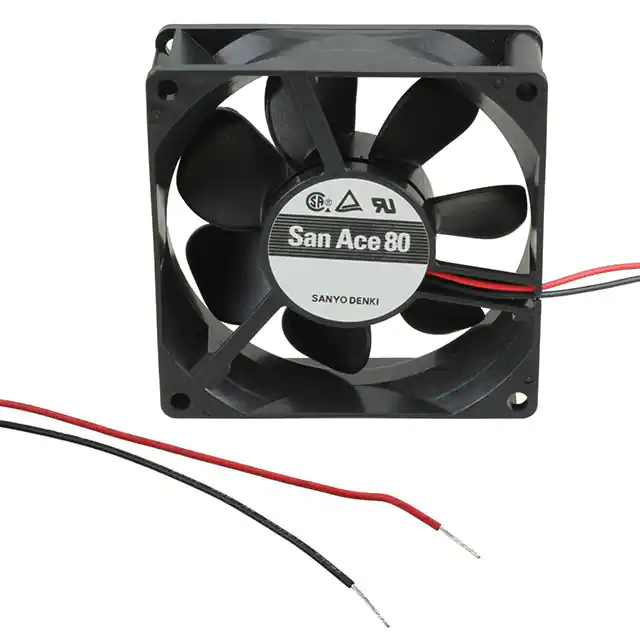

109R0824G402FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0824H402FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.68 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

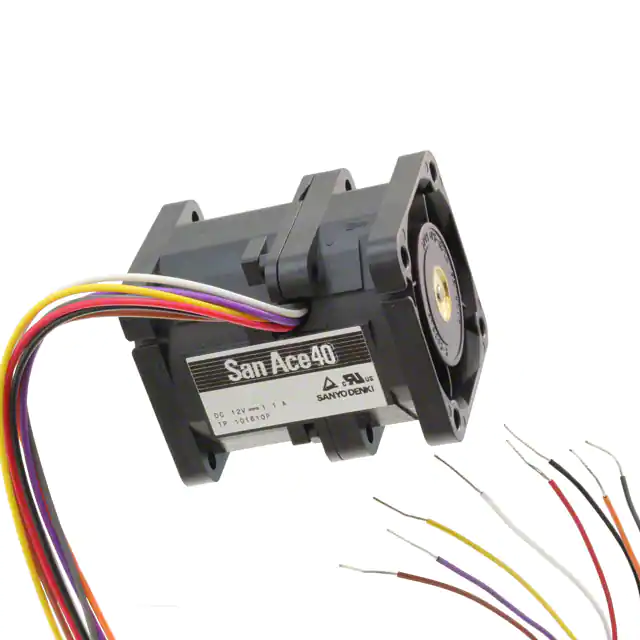

9CRD0412P5G03FAN AXIAL DUAL 40X56MM 12VDC |
0 |
|
Veri Sayfası |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 27.2 CFM (0.762m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 10.8 W | 16700 Front, 11250 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9CRD0412P5H03FAN AXIAL DUAL 40X56MM 12VDC |
0 |
|
Veri Sayfası |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 24.7 CFM (0.692m³/min) | 1.650 in H2O (411.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 7.2 W | 15000 Front, 10000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9G0648G101FAN AXIAL 60X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 16.8 W | 11800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9G0648S101FAN AXIAL 60X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 13.9 W | 10800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9G0648S1011FAN AXIAL 60X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 13.9 W | 10800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
9G0812K101FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.285 in H2O (320.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 21.6 W | 7800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
9G0812P1G04FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 13.2 W | 6300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

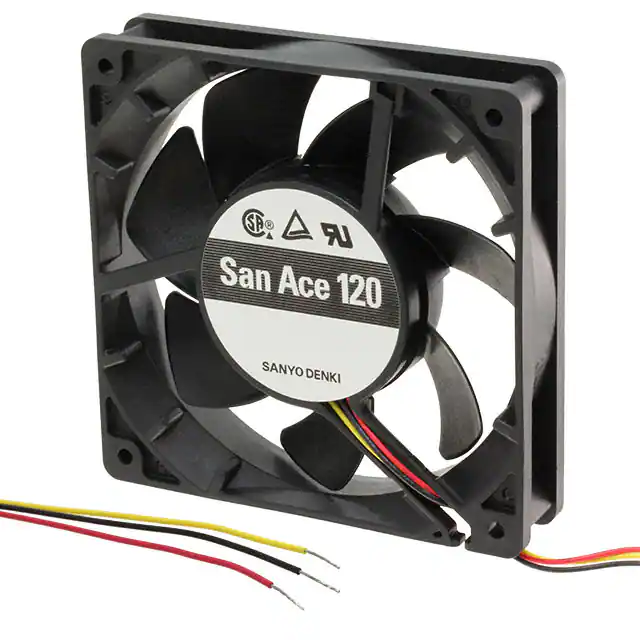

9G1212P4G03FAN AXIAL 119X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 10.8 W | 4100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.529 lb (240.00 g) |
|
|
9G1212P4G031FAN AXIAL 119X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 10.8 W | 4100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.529 lb (240.00 g) |
