DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV0312G301FAN AXIAL 38X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 17.0 CFM (0.476m³/min) | 0.924 in H2O (230.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 4.8 W | 13500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9GV0312J301FAN AXIAL 38X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.1 CFM (0.563m³/min) | 1.265 in H2O (315.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 54.0dB(A) | 7.2 W | 15900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
9GV0312P3J03FAN AXIAL 38X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.1 CFM (0.563m³/min) | 1.265 in H2O (315.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.2 W | 15900 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
9GV0412K301FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 26.8 CFM (0.750m³/min) | 1.668 in H2O (415.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 10.08 W | 16500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
9GV0412P3H01FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.831 in H2O (207.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 3.72 W | 11600 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9GV0412P3J03FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.0 CFM (0.672m³/min) | 1.325 in H2O (330.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 7.2 W | 14700 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
9GV0612H102FAN AXIAL 60X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 76.0 CFM (2.13m³/min) | 2.480 in H2O (617.7 Pa) | Ball | Tubeaxial | - | 63.0dB(A) | 24 W | 14500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
.jpg)
|
9GV0612P1M03FAN AXIAL 60X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 68.0 CFM (1.90m³/min) | 1.990 in H2O (495.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 18 W | 13000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
9GV0812P4J031FAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 60.7 CFM (1.70m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 5.6 W | 4500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|

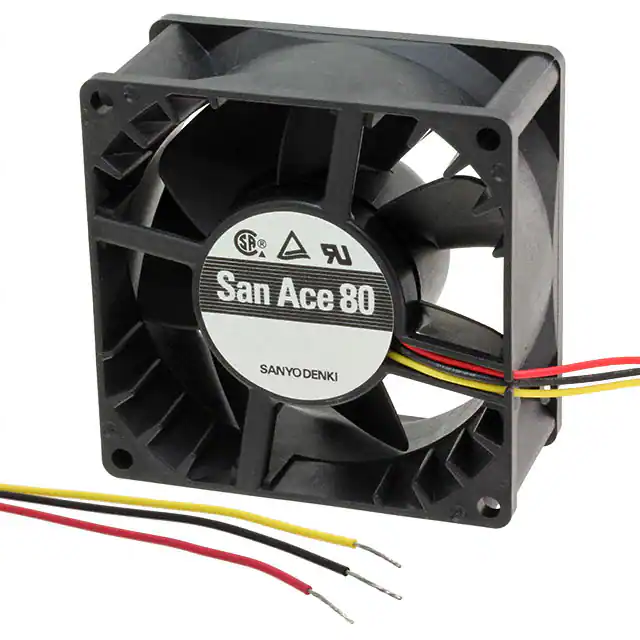

9GV0812P4K03FAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 74.8 CFM (2.09m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 10.4 W | 5600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|

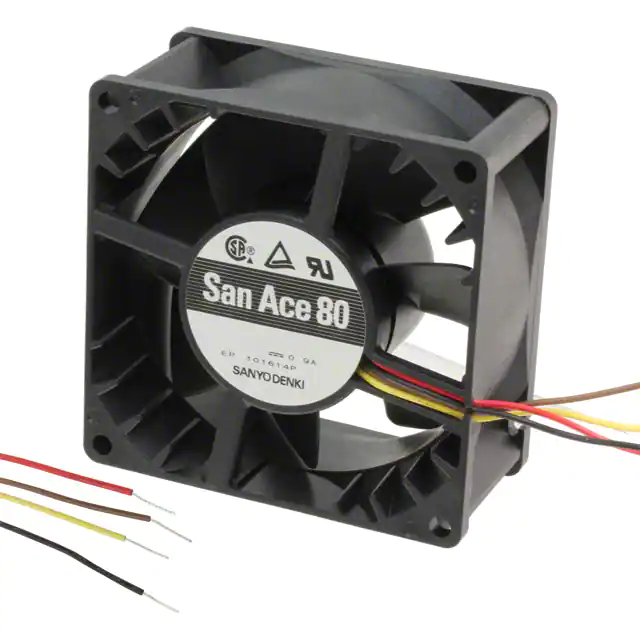

9GV0812P4K031FAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 74.8 CFM (2.09m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 10.4 W | 5600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|

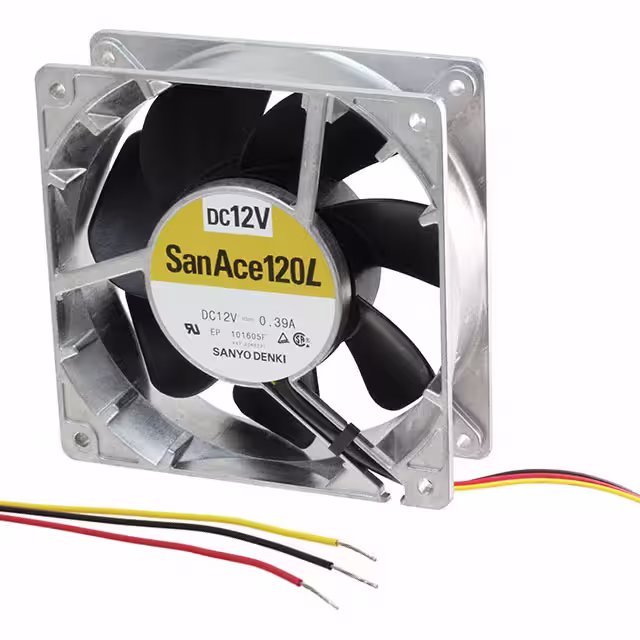

9LB1212H101FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 4.68 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
9LB1424H501FAN AXIAL 140X51MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 140L | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 208.5 CFM (5.84m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 14.4 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (610.0 g) |
|
|
9LB1424S501FAN AXIAL 140X51MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 140L | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 286.2 CFM (8.01m³/min) | 0.960 in H2O (239.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 33.12 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (610.0 g) |
|
|
9LB1424S5D01FAN AXIAL 140X51MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 140L | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 286.2 CFM (8.01m³/min) | 0.960 in H2O (239.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 57.0dB(A) | 33.12 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (610.0 g) |
|

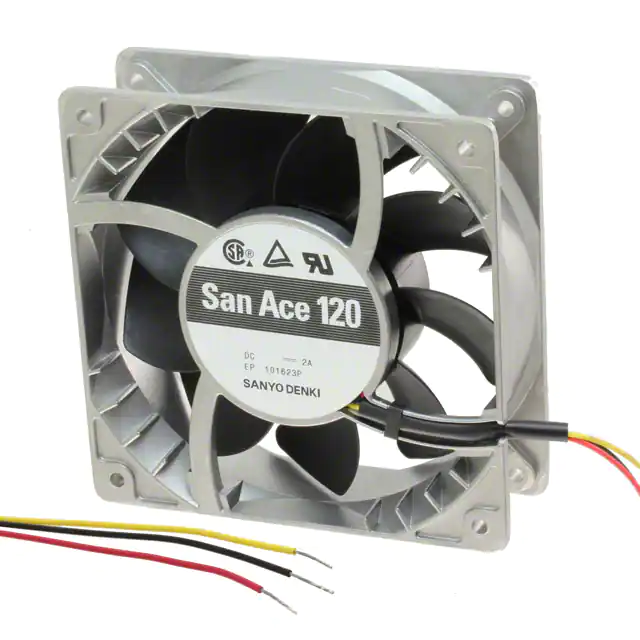

9SG1212G101FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|

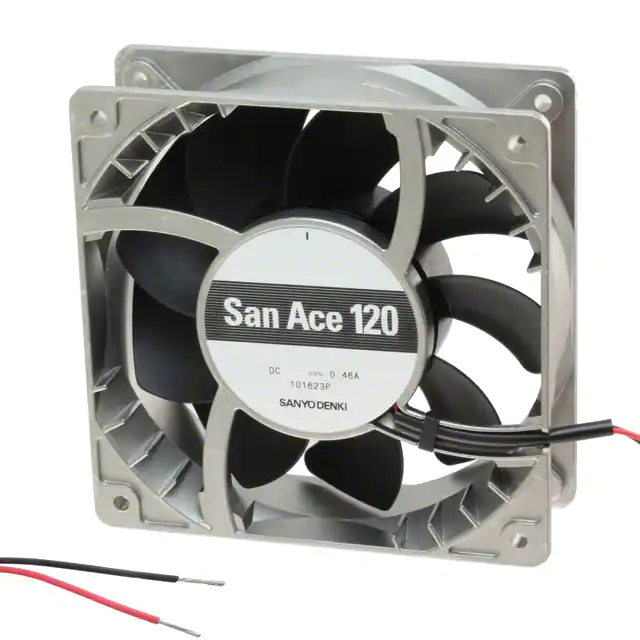

9SG1212G102FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 48 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|

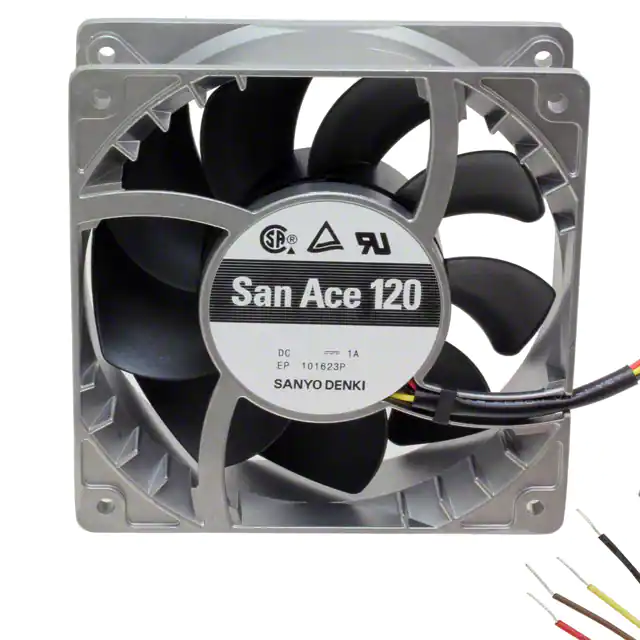

9SG1212P1G01FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
9SG1224G101FAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
9SG1224G102FAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 48 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
