Endüstriyel, DIN Ray Güç Kaynakları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Giriş Türü | Çıkış Sayısı | AC Voltaj - Giriş | DC Voltaj - Giriş (Minimum) | DC Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Verimlilik | Çalışma Sıcaklığı | Özellikler | Boyut / Ölçü | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
89452241PWR SUPPLY OUTPUT 12VDC 15A |
1 |
|
Veri Sayfası |
- | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 18A | 216W | - | Industrial, ITE (Commercial) | 92% | -25°C ~ 50°C (With Derating) | Universal Input | 5.31" L x 1.97" W x 5.35" H (135.0mm x 50.0mm x 136.0mm) | CE, UKCA, UL | 62368-1; UL 508 |
|
ML50.111AC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Veri Sayfası |
MiniLine (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | - | ITE (Commercial) | 88.5% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
|
RACPRO1-T480/24480W AC/DC-CONVERTER 'DIN-RAIL' |
0 |
|
- |
POWERLINE RACPRO1-T480 (480W) | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 815V | 24V | - | - | - | - | - | 20A | 480W | 3.5 kV | ITE (Commercial), Laboratory | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 6.13" L x 2.05" W x 5.31" H (155.7mm x 52.0mm x 135.0mm) | CB, CE, CSA, EN, IEC, UL | 61010-1; 62368-1 |
|
|
RACPRO1-T480/48480W AC/DC-CONVERTER 'DIN-RAIL' |
0 |
|
- |
POWERLINE RACPRO1-T480 (480W) | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 815V | 48V | - | - | - | - | - | 10A | 480W | 3.5 kV | ITE (Commercial), Laboratory | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 6.13" L x 2.05" W x 5.31" H (155.7mm x 52.0mm x 135.0mm) | CB, CE, CSA, EN, IEC, UL | 61010-1; 62368-1 |
|

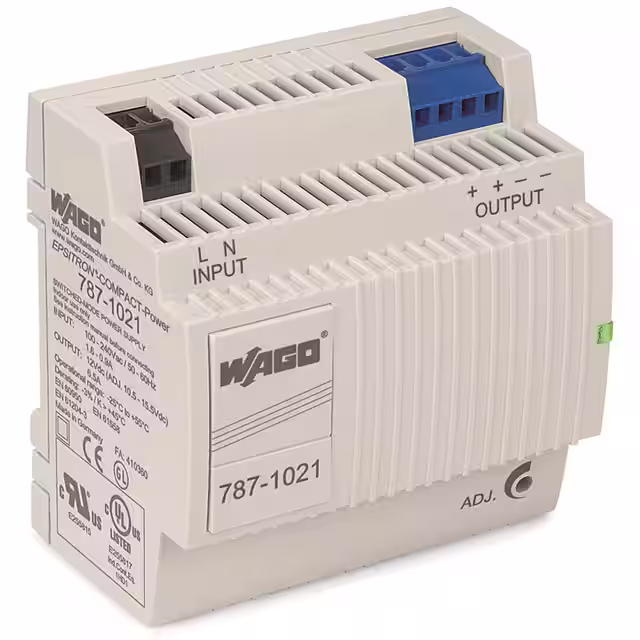

787-1021AC/DC DIN RAIL SUPPLY 12V 78W |
0 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 12V | - | - | - | - | - | 6.5A | 78W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 87% | -25°C ~ 60°C | Adjustable Output, IP20, PFC, Universal Input | 2.17" L x 3.54" W x 3.50" H (55.0mm x 90.0mm x 89.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
|
DRF-48V480W3GBADIN-RAIL PS 480W / 48V 3PHASE |
0 |
|
- |
DRF (480W) | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 800V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial), Laboratory | 95.5% | -40°C ~ 70°C | Adjustable Output, IP20, Universal Input | 5.01" L x 2.56" W x 4.88" H (127.3mm x 65.0mm x 124.0mm) | - | 60950-1; 61010-1; 62368-1 |
|
|
DRF-48V480W3GTADIN-RAIL PS 480W / 48V 3PHASE |
0 |
|
- |
DRF (480W) | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 800V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial), Laboratory | 95.5% | -40°C ~ 70°C | Adjustable Output, IP20, Universal Input | 5.01" L x 2.56" W x 4.88" H (127.3mm x 65.0mm x 124.0mm) | - | 60950-1; 61010-1; 62368-1 |
|
ML50.109AC/DC DIN RAIL SUPPLY 24V 50W |
1 |
|
Veri Sayfası |
MiniLine (50W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | - | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | CSA, EAC, IEC, NEC, SEMI, UL | Class I Div 2; Class 2; F47; 508; 60950-1; 61010-2-201 |
|
787-1623AC/DC DIN RAIL SUPPLY 48V 96W |
1 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 372V | 48V | - | - | - | - | - | 2A | 96W | 4.242 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 4.69" L x 2.05" W x 3.54" H (119.0mm x 52.0mm x 90.0mm) | cURus, UL | 60950-1; UL 508 |
|
|
6EP19612BA31DC/DC DIN RAIL SUPPLY QUAD 24V |
1 |
|
Veri Sayfası |
6EP1 | Box | Active | DC | 4 | - | 22V | 30V | 24V | 24V | 24V | 24V | - | - | 3A, 3A, 3A, 3A | - | - | Industrial, ITE (Commercial) | 97% | -25°C ~ 60°C | Adjustable Output, IP20 | 2.83" L x 2.83" W x 3.15" H (72.0mm x 72.0mm x 80.0mm) | CE, cULus, EAC, UL | 60950-1; UL 508 |
|

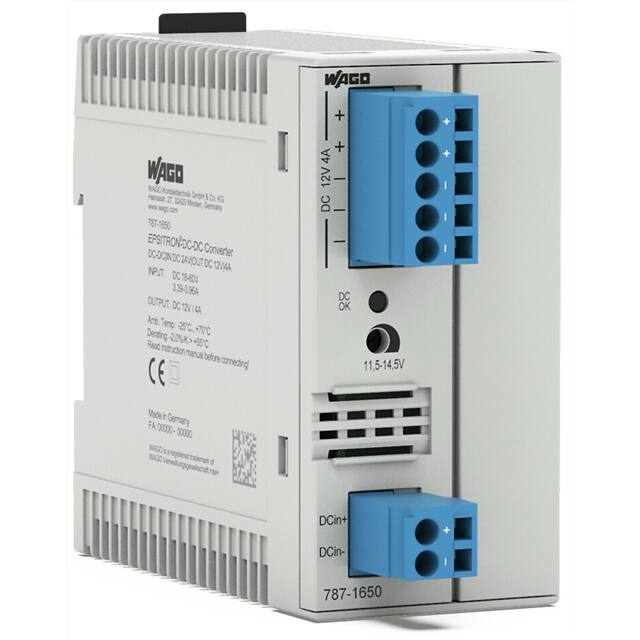

787-1650DC/DC DIN RAIL SUPPLY 12V 48W |
1 |
|
Veri Sayfası |
- | Box | Active | DC | 1 | - | 12V | 24V | 12V | - | - | - | - | - | 4A | 48W | 2.2 kV | ITE (Commercial), Laboratory | 84% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.23" L x 1.77" W x 3.54" H (107.5mm x 45.0mm x 90.0mm) | CE, EAC | 60950-1; 61010-1 |
|
|
SCP30S15BUDNAC/DC DIN RAIL SUPPLY 15V 30W |
1 |
|
Veri Sayfası |
SCP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 375V | 15V | - | - | - | - | - | 2A | 30W | - | ITE (Commercial) | 75% | -25°C ~ 65°C | IP20, Universal Input | 2.67" L x 1.37" W x 4.43" H (68.0mm x 35.0mm x 113.0mm) | CE, cURus | 60950-1 |
|
|
89452482PWR SUPPLY OUTPUT 24-28VDC 20A |
1 |
|
Veri Sayfası |
- | Bulk | Active | AC | 1 | 91 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | - | Industrial, ITE (Commercial) | 93.5% | -25°C ~ 50°C (With Derating) | Universal Input | 6.24" L x 2.36" W x 6.06" H (158.6mm x 60.0mm x 154.0mm) | CE, UKCA, UL | 62368-1; UL 508 |
|
|
AC2900AS-I SPLITTER MODULE, 137.3 / L |
1 |
|
Veri Sayfası |
- | Box | Active | DC | 1 | - | 26.5V | 31.6V | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -5°C ~ 70°C | - | 5.41" Dia x 3.15" H (137.3mm x 80.0mm) | CE, cULus, EAC, UKCA | - |
|
|
RACPRO1-T960/48960W AC/DC-CONVERTER 'DIN-RAIL' |
0 |
|
- |
POWERLINE RACPRO1-T960 (960W) | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 815V | 48V | - | - | - | - | - | 20A | 960W | 3.5 kV | ITE (Commercial), Laboratory | 96% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 6.13" L x 3.15" W x 5.31" H (155.7mm x 80.0mm x 135.0mm) | CB, CE, CSA, EN, IEC, UL | 61010-1; 62368-1 |
|
|
RACPRO1-T960/24960W AC/DC-CONVERTER 'DIN-RAIL' |
0 |
|
- |
POWERLINE RACPRO1-T960 (960W) | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 815V | 24V | - | - | - | - | - | 40A | 960W | 3.5 kV | ITE (Commercial), Laboratory | 96% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 6.13" L x 3.15" W x 5.31" H (155.7mm x 80.0mm x 135.0mm) | CB, CE, CSA, EN, IEC, UL | 61010-1; 62368-1 |
|
|
6EP19612BA00DC/DC DIN RAIL SUPPLY QUAD 24V |
1 |
|
Veri Sayfası |
6EP1 | Box | Active | DC | 4 | - | 22V | 30V | 24V | 24V | 24V | 24V | - | - | 10A, 10A, 10A, 10A | - | - | Industrial, ITE (Commercial) | 97% | 0°C ~ 60°C | Adjustable Output, IP20 | 3.54" L x 2.83" W x 3.54" H (90.0mm x 72.0mm x 90.0mm) | CE, cULus, EAC, UL | 60950-1; UL 508 |
|
|
1523020PRIMARY-SWITCHED PWR SUPPLY |
0 |
|
Veri Sayfası |
TRIO | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 100V | 240V | 24V | - | - | - | - | - | 20A | 480W | 5.3 kV | Laboratory | 95% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.92" L x 2.17" W x 5.31" H (125.0mm x 55.0mm x 135.0mm) | CB, cUL, cULus, UL | 61010-1 |
|
|
2467060000PRO TOP3 120W 24V 5A |
1 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 3.5 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | 4.92" L x 1.54" W x 5.12" H (125.0mm x 39.0mm x 130.0mm) | cULus, EAC | 60950-1 |
|

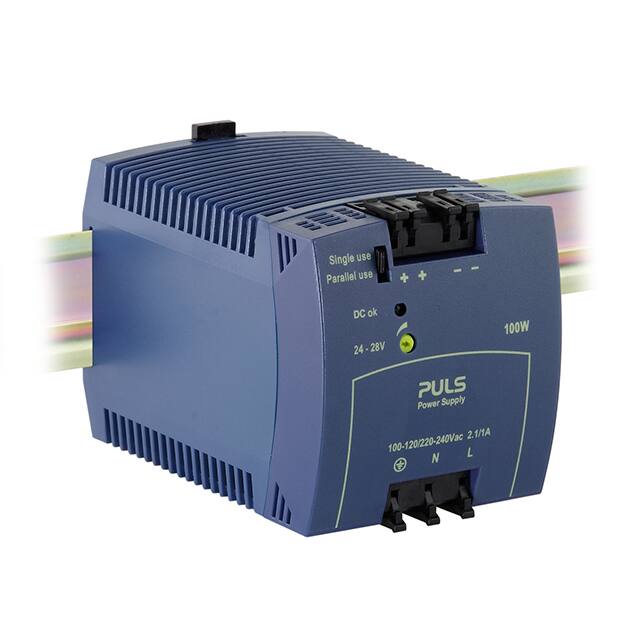

ML100.109AC/DC DIN RAIL SUPPLY 24V 100W |
1 |
|
Veri Sayfası |
MiniLine (100W) | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 4.2A | 100W | - | ITE (Commercial) | 90% | -10°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing | 4.06" L x 2.87" W x 2.95" H (103.0mm x 73.0mm x 75.0mm) | CSA, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
