Endüstriyel, DIN Ray Güç Kaynakları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Giriş Türü | Çıkış Sayısı | AC Voltaj - Giriş | DC Voltaj - Giriş (Minimum) | DC Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Verimlilik | Çalışma Sıcaklığı | Özellikler | Boyut / Ölçü | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABLS1A24100AC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 140V | 340V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | IP20, Universal Input | 4.63" L x 2.36" W x 4.87" H (117.6mm x 60.0mm x 123.6mm) | CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL | 60950-1; 62368-1 |
|
CS10.243AC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
Veri Sayfası |
DIMENSION C (240W) | Box | Active | AC | 1 | 90 ~ 132 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 91.3% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
2467240000PRO TOP2 120W 24V 5A UW EX |
0 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 85 ~ 550 VAC | 90V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 3.5 kV | ITE (Commercial) | 89% | -40°C ~ 75°C | Adjustable Output, IP20, PFC | 4.92" L x 1.54" W x 5.12" H (125.0mm x 39.0mm x 130.0mm) | CSA, TUV, UKCA | 60950-1 |
|
787-822AC/DC DIN RAIL SUPPLY 24V 120W |
1 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 24V | - | - | - | - | - | 5A | 120W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 87.8% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 6.42" L x 2.24" W x 6.42" H (163.0mm x 57.0mm x 163.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
|
6EP13334BA00AC/DC DIN RAIL SUPPLY 24V |
1 |
|
Veri Sayfası |
6EP1 | Box | Active | AC | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 8A | - | - | Industrial, ITE (Commercial) | 90% | 0°C ~ 60°C | Adjustable Output, IP20 | 5.08" L x 2.95" W x 5.79" H (129.0mm x 75.0mm x 147.0mm) | CE, CSA, cULus, EAC, UL | 60950-1; UL 508 |
|
|
DRF-48V960W3GBADIN-RAIL PS 960W / 48V 3PHASE |
0 |
|
- |
* | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 800V | 48V | - | - | - | - | - | 20A | 960W | 4 kV | ITE (Commercial), Laboratory | 96% | -40°C ~ 70°C | Adjustable Output, IP20, Universal Input | - | - | 60950-1; 61010-1; 62368-1 |
|
CS10.242AC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
Veri Sayfası |
DIMENSION C (240W) | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 91.2% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
|
CP10.122AC/DC DIN RAIL SUPPLY 12V 192W |
1 |
|
Veri Sayfası |
CP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 360V | 12V | - | - | - | - | - | 16A | 192W | 500 V | ITE (Commercial) | 94.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | 4.61" L x 1.54" W x 4.88" H (117.0mm x 39.0mm x 124.0mm) | cCSAus, CE, cURus, KC | 60950-1 |
|
|
2467080000PRO TOP3 240W 24V 10A |
1 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 10A | 288W | 3.5 kV | ITE (Commercial) | 93% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | 4.92" L x 1.97" W x 5.12" H (125.0mm x 50.0mm x 130.0mm) | cULus, TUV | 60950-1 |
|

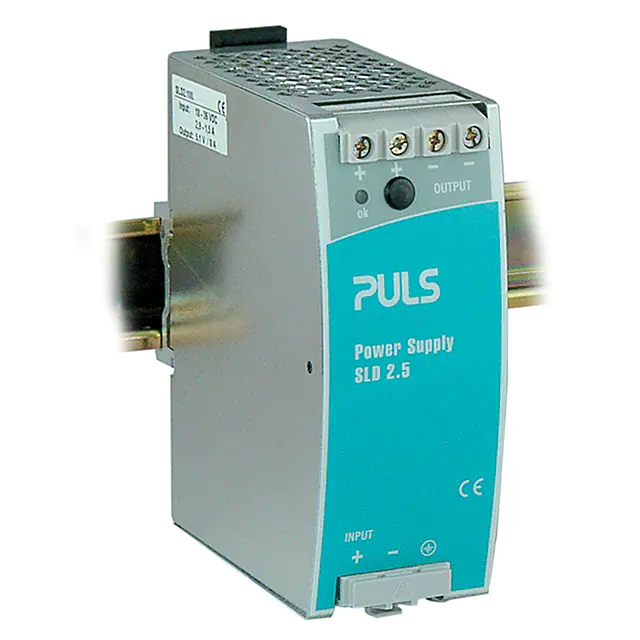

SLD2.100DC/DC DIN RAIL SUPPLY 5.1V 40W |
1 |
|
Veri Sayfası |
SilverLine | Bulk | Active | DC | 1 | - | 18V | 36V | 5.1V | - | - | - | - | - | 8A | 40W | - | ITE (Commercial) | 82% | -25°C ~ 70°C (With Derating) | - | - | EAC | - |
|
ABL8BPK24A12DC/DC DIN RAIL SUPPLY 24V |
1 |
|
Veri Sayfası |
- | Box | Active | DC | 1 | - | 21V | 29V | 24V | - | - | - | - | - | 75A | - | - | ITE (Commercial) | - | 0°C ~ 40°C | - | 12.99" L x 7.87" W x 7.68" H (330.0mm x 200.0mm x 195.0mm) | CE, UL | - |
|
|
AC5228AS-I PNEUMATIC MODULE, AIRBOX 2X |
0 |
|
Veri Sayfası |
- | Box | Active | DC | 1 | - | 26.5V | 31.6V | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -10°C ~ 50°C | - | 4.25" L x 3.35" W x 1.97" H (108.0mm x 85.0mm x 50.0mm) | CE, cULus, EAC, UKCA | - |
|
|
S8VK-WB48024POWER SUPPLY 3 PHASE 480VAC PWR |
0 |
|
Veri Sayfası |
S8VK-W (480W) | Box | Active | AC or DC | 1 | 320 ~ 576 VAC (3 Phase) | 450V | 810V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | 4.41" L x 2.56" W x 4.88" H (112.0mm x 65.0mm x 124.0mm) | CE, UL | 62368-1; UL 508 |
|
|
2787-2357PSU, PRO 2 3-PH |
1 |
|
Veri Sayfası |
- | Bulk | Active | AC | 1 | 340 ~ 550 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3.15 kV | Laboratory | 95% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | 5.12" L x 2.76" W x 5.12" H (130.0mm x 70.0mm x 130.0mm) | UL | 61010-1 |
|
|
SCD30S5UDNDC/DC DIN RAIL SUPPLY 5V 25W |
1 |
|
Veri Sayfası |
SCD | Bulk | Active | DC | 1 | - | 20V | 72V | 5V | - | - | - | - | - | 5A | 25W | - | Industrial, ITE (Commercial) | - | -25°C ~ 65°C | IP20 | 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm) | CE, cULus, cURus | 60950-1; UL 508 |
|
|
2467160000PRO TOP3 480W 48V 10A CO |
0 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 45 ~ 56V | - | - | - | - | - | 10A | 560W | 3.5 kV | ITE (Commercial) | 94% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | 4.92" L x 2.68" W x 5.12" H (125.0mm x 68.0mm x 130.0mm) | cULus, TUV | 60950-1 |
|
787-842AC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 340 ~ 550 VAC | 480V | 780V | 24V | - | - | - | - | - | 20A | 480W | 4.242 kV | Industrial, ITE (Commercial) | 92.9% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 7.05" L x 3.03" W x 6.73" H (179.0mm x 77.0mm x 171.0mm) | cURus, EAC, UL | 60950-1; UL 508 |
|
CP10.241-R2-C1AC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
Veri Sayfası |
DIMENSION CP (240W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, ITE (Commercial), Laboratory | 94.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61" L x 1.54" W x 4.88" H (117.0mm x 39.0mm x 124.0mm) | CB, CE, cULus, EAC, UL | ATEX; IECEx; 60950-1; 61010-1; 62368-1 |
|
787-2744AC/DC DIN RAIL SUPPLY 24V 960W |
1 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 325 ~ 575 VAC | 560V | 700V | 24V | - | - | - | - | - | 40A | 960W | 4.242 kV | ITE (Commercial) | 92.3% | -20°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 6.69" L x 5.51" W x 5.12" H (170.0mm x 140.0mm x 130.0mm) | CE, cURus, EAC, UL | 60950-1; 62368-1 |
|

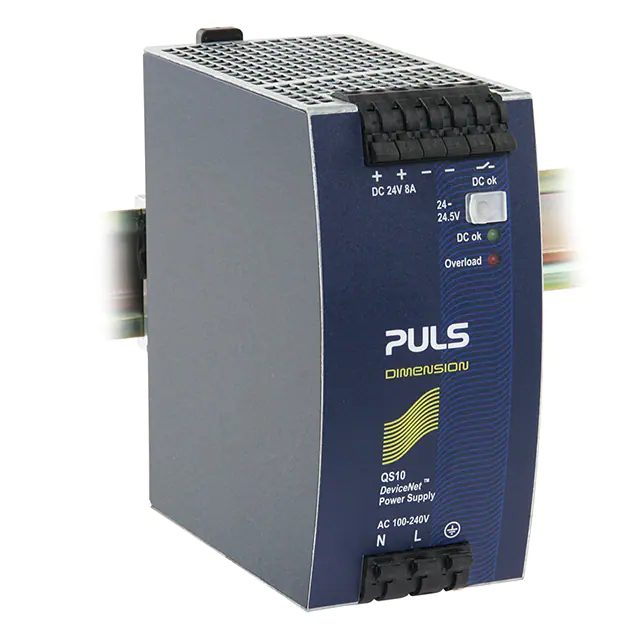

QS10.DNETAC/DC DIN RAIL SUPPLY 24V 192W |
1 |
|
Veri Sayfası |
DIMENSION Q (192W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 8A | 192W | 500 V | ITE (Commercial) | 92.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
