Voltaj Regülatörleri - Doğrusal, Düşük Düşüşlü (LDO) Regülatörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Çıkış Yapılandırması | Çıkış Türü | Regülatör Sayısı | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış (Minimum/Sabit) | Voltaj - Çıkış (Maksimum) | Voltaj Düşüşü (Maksimum) | Akım - Çıkış | Akım - Dinlenme (Iq) | Akım - Besleme (Maksimum) | PSRR (Besleme Voltajı Reddi Oranı) | Kontrol Özellikleri | Koruma Özellikleri | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC78M15ABDTRKGIC REG LINEAR 15V 500MA DPAK |
2,753 |
|
Veri Sayfası |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 15V | - | - | 500mA | - | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
TPS72118DBVRIC REG LINEAR 1.8V 150MA SOT23-5 |
2,447 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.24V @ 150mA | 150mA | 120 µA | 850 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LM317MABDTGIC REG LINEAR POS ADJ 500MA DPAK |
1,806 |
|
Veri Sayfası |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 500mA | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | DPAK |
|
TPS7A0218DBVR200-MA, NANOPOWER-IQ (25 NA), LO |
1,559 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.56V @ 200mA | 200mA | 60 nA | - | 55dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS7A0220PDBVRIC REG LINEAR 2V 200MA SOT23-5 |
979 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 0.45V @ 200mA | 200mA | 60 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
TPS7A0233PDQNRIC REG LINEAR 3.3V 200MA 4X2SON |
567 |
|
Veri Sayfası |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.31V @ 200mA | 200mA | 60 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
__2.jpg)
|
KF50BDT-TRIC REG LINEAR 5V 500MA DPAK |
32,084 |
|
Veri Sayfası |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | 0.7V @ 500mA | 500mA | 1 mA | 12 mA | 76dB ~ 60dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
L4931ABD33-TRIC REG LINEAR 3.3V 250MA 8SO |
12,757 |
|
Veri Sayfası |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.8V @ 250mA | 250mA | 1 mA | 6 mA | 73dB ~ 55dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
L4931CD50-TRIC REG LINEAR 5V 250MA 8SO |
4,680 |
|
Veri Sayfası |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | 0.8V @ 250mA | 250mA | 1 mA | 6 mA | 70dB ~ 55dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
TPS73230DBVRIC REG LINEAR 3V 250MA SOT23-5 |
4,334 |
|
Veri Sayfası |
TPS732xx | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.15V @ 250mA | 250mA | 550 µA | 950 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MC7915CD2TR4GIC REG LINEAR -15V 1A D2PAK |
2,354 |
|
Veri Sayfası |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
LM2930T-5.0/NOPBIC REG LINEAR 5V 150MA TO220-3 |
292 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 150mA | 150mA | 7 mA | 40 mA | 56dB (120Hz) | - | Load Dump, Mirror-Image Insertion, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-220-3 |
|
|
NCV1117DT15RKGIC REG LINEAR 1.5V 1A DPAK |
14,068 |
|
Veri Sayfası |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
BD50GA5WEFJ-E2IC REG LINEAR 5V 500MA 8HTSOP |
9,590 |
|
Veri Sayfası |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 5V | - | 0.9V @ 500mA | 500mA | - | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|

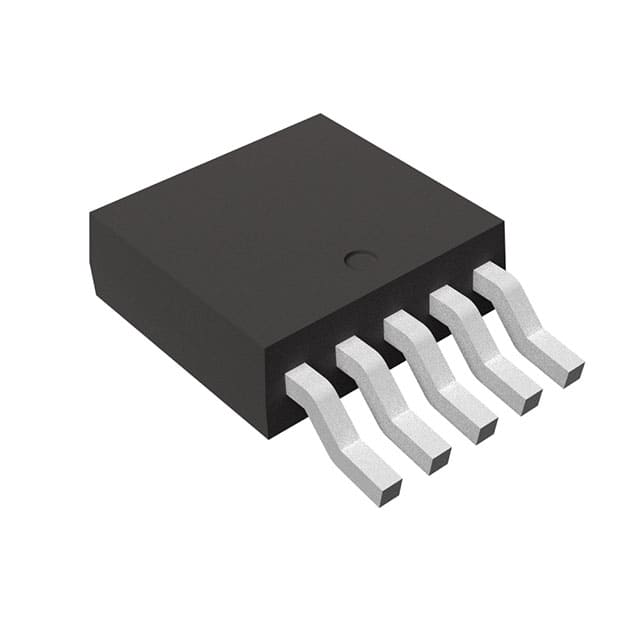

RP108J331D-T1-FEIC REG LINEAR 3.3V 3A TO252-5-P2 |
8,873 |
|
Veri Sayfası |
RP108J | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.56V @ 3A | 3A | 500 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-252-5-P2 |
|
NCV551SN33T1GIC REG LINEAR 3.3V 150MA 5TSOP |
4,407 |
|
Veri Sayfası |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.15V @ 10mA | 150mA | 8 µA | 8 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
NCV8189CMTWADJTAGLDO, 0.5A, LOW NOISE, FIXED AND |
3,671 |
|
Veri Sayfası |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5V | 0.21V @ 500mA | 500mA | 55 µA | - | 85dB ~ 40dB (1kHz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|
TPS71701DCKTIC REG LIN POS ADJ 150MA SC70-5 |
3,522 |
|
Veri Sayfası |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.9V | 6.2V | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
MCP1826ST-3302E/EBIC REG LINEAR 3.3V 1A 3DDPAK |
3,373 |
|
Veri Sayfası |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|
|
LP2992IM5-1.8/NOPBIC REG LINEAR 1.8V 250MA SOT23-5 |
3,193 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 1.8V | - | 0.85V @ 250mA | 250mA | 95 µA | 4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
