Voltaj Regülatörleri - Doğrusal, Düşük Düşüşlü (LDO) Regülatörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Çıkış Yapılandırması | Çıkış Türü | Regülatör Sayısı | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış (Minimum/Sabit) | Voltaj - Çıkış (Maksimum) | Voltaj Düşüşü (Maksimum) | Akım - Çıkış | Akım - Dinlenme (Iq) | Akım - Besleme (Maksimum) | PSRR (Besleme Voltajı Reddi Oranı) | Kontrol Özellikleri | Koruma Özellikleri | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV1117DT12RKGIC REG LINEAR 12V 1A DPAK |
2,602 |
|
Veri Sayfası |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 12V | - | 1.2V @ 800mA | 1A | 10 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
MC7915BTGIC REG LINEAR -15V 1A TO220AB |
1,488 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TPS71733DCKTIC REG LINEAR 3.3V 150MA SC70-5 |
1,287 |
|
Veri Sayfası |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
|
TPS71725DCKTIC REG LINEAR 2.5V 150MA SC70-5 |
1,272 |
|
Veri Sayfası |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
MCP1826T-ADJE/ETIC REG LINEAR POS ADJ 1A 5DDPAK |
1,199 |
|
Veri Sayfası |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5V | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
MC7818CD2TR4GIC REG LINEAR 18V 1A D2PAK |
1,179 |
|
Veri Sayfası |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 18V | - | 2V @ 1A (Typ) | 1A | 6.5 mA | - | 57dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC7912BTGIC REG LINEAR -12V 1A TO220AB |
1,127 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -12V | - | 1.3V @ 1A (Typ) | 1A | - | - | 61dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TPS71733DRVTIC REG LINEAR 3.3V 150MA 6WSON |
776 |
|
Veri Sayfası |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
MC7918CTGIC REG LINEAR -18V 1A TO220AB |
551 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -18V | - | 1.3V @ 1A (Typ) | 1A | - | - | 59dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
MCP1826-ADJE/ATIC REG LINEAR POS ADJ 1A TO220-5 |
511 |
|
Veri Sayfası |
- | TO-220-5 | Tube | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5V | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
MCP1826S-5002E/ABIC REG LINEAR 5V 1A TO220-3 |
327 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1826S-1202E/ABIC REG LINEAR 1.2V 1A TO220-3 |
298 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1826S-3302E/ABIC REG LINEAR 3.3V 1A TO220-3 |
293 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1826S-3002E/ABIC REG LINEAR 3V 1A TO220-3 |
159 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1826S-1802E/ABIC REG LINEAR 1.8V 1A TO220-3 |
137 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TPS73718DCQRIC REG LINEAR 1.8V 1A SOT223-6 |
3,935 |
|
Veri Sayfası |
- | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.5V @ 1A | 1A | 400 µA | 1.3 mA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|

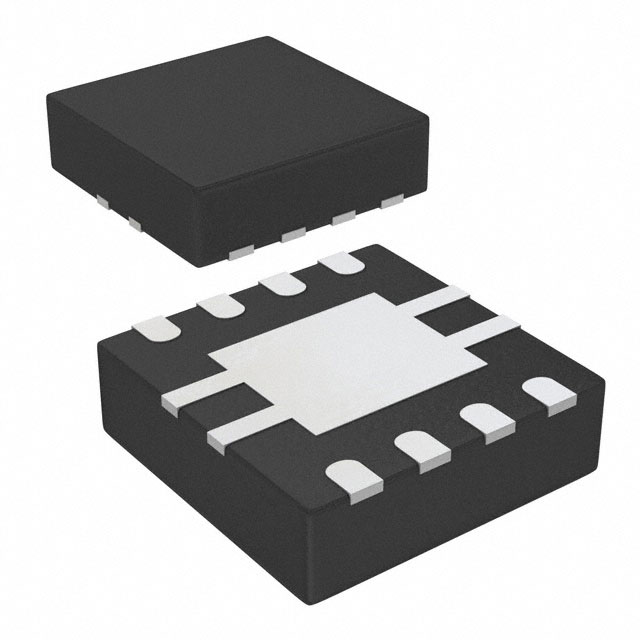

RT2519GQV(2)IC REG LINEAR POS ADJ 1A 8VDFN |
1,094 |
|
Veri Sayfası |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5.5V | 0.5V @ 1A | 1A | - | 350 µA | 63dB ~ 38dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VDFN (3x3) |
|
LP38691SD-2.5/NOPBIC REG LINEAR 2.5V 500MA 6WSON |
661 |
|
Veri Sayfası |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.5V | - | 0.73V @ 500mA | 500mA | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-WSON (3x3) |
|
|
LM317MBDTGIC REG LINEAR POS ADJ 500MA DPAK |
603 |
|
Veri Sayfası |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 500mA | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | DPAK |
|
TLF80511EJV33XUMA1IC REG LIN 3.3V 400MA 8DSO E-PAD |
9,899 |
|
Veri Sayfası |
OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.65V @ 250mA | 400mA | 46 µA | 80 µA | 55dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
