Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JVN1A-4.5V-FRELAY GEN PURPOSE SPST 16A 4.5V |
63 |
|
Veri Sayfası |
JV-N | Bulk | Active | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.38 VDC | 0.23 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
G5RL-1A4-E-TV8 DC24RELAY GEN PURPOSE SPST 16A 24V |
64 |
|
Veri Sayfası |
G5RL | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
RY211006RELAY GEN PURPOSE SPDT 8A 6V |
99 |
|
Veri Sayfası |
RY, SCHRACK | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 37 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
T9GV5L24-18RELAY GEN PURPOSE SPDT 20A 18V |
81 |
|
Veri Sayfası |
T9G | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 13.5 VDC | 1.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|

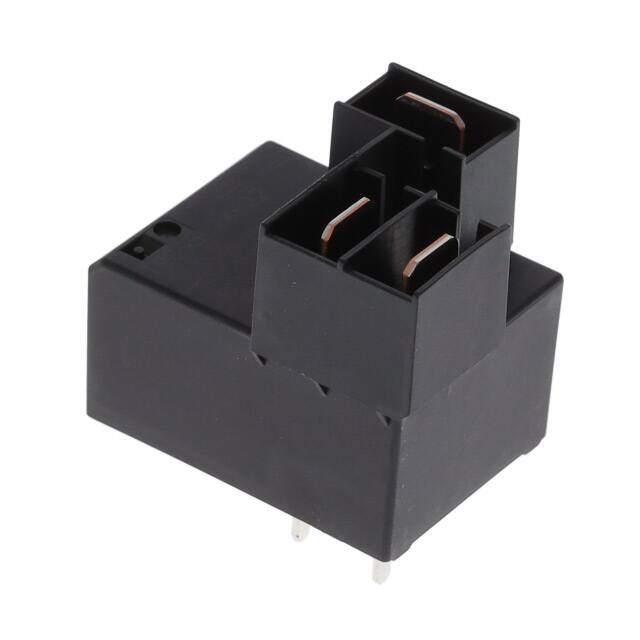

T9GS5L24-22RELAY GEN PURPOSE SPDT 20A 22V |
40 |
|
Veri Sayfası |
T9G | Bulk | Active | Through Hole | 22VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 41 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
ADW1124HTRELAY GEN PURPOSE SPST 16A 24V |
50 |
|
Veri Sayfası |
DW | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 8.3 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
ADW1112HTRELAY GEN PURPOSE SPST 16A 12V |
28 |
|
Veri Sayfası |
DW | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 16.7 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
ADW1209TWRELAY GEN PURPOSE SPST 8A 9V |
100 |
|
Veri Sayfası |
DW | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 44.4 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
ADW1124TWRELAY GEN PURPOSE SPST 8A 24V |
83 |
|
Veri Sayfası |
DW | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 8.3 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
G6C-2117P-US DC8RELAY GEN PURPOSE DPST 8A 8V |
100 |
|
Veri Sayfası |
G6C | Bulk | Active | Through Hole | 8VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 25 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 5.6 VDC | 0.8 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
T9GV2L24-48RELAY GEN PURPOSE SPST 20A 48V |
42 |
|
Veri Sayfası |
T9G | Bulk | Active | Through Hole | 48VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 36 VDC | 4.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
G6RL-1A DC48RELAY GEN PURPOSE SPST 10A 48V |
98 |
|
Veri Sayfası |
G6RL | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
ADW1206HTWRELAY GEN PURPOSE SPST 16A 6V |
89 |
|
Veri Sayfası |
DW | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 66.7 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|

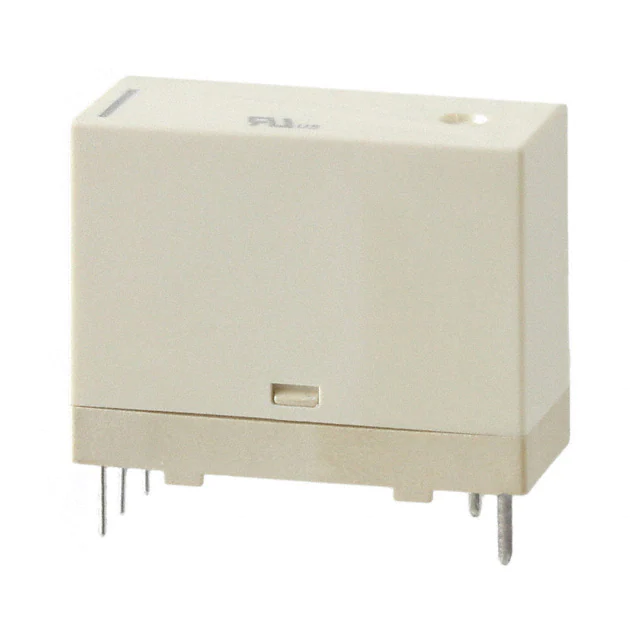

ADW1124WRELAY GEN PURPOSE SPST 8A 24V |
97 |
|
Veri Sayfası |
DW | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 8.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
T9GV5L24-48RELAY GEN PURPOSE SPDT 20A 48V |
83 |
|
Veri Sayfası |
T9G | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 36 VDC | 4.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
AZ2850-2A-24AERELAY GEN PURPOSE DPST 40A 24V |
100 |
|
Veri Sayfası |
AZ2850 | Tray | Active | Through Hole | 24VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 672.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 19.2 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
ADW1203HTRELAY GEN PURPOSE SPST 16A 3V |
71 |
|
Veri Sayfası |
DW | Tube | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 133 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 2.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
ADW1209HTRELAY GEN PURPOSE SPST 16A 9V |
41 |
|
Veri Sayfası |
DW | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 44.4 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
T9GS5L24-48RELAY GEN PURPOSE SPDT 20A 48V |
51 |
|
Veri Sayfası |
T9G | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
G6EU-134P-US DC6RELAY GEN PURPOSE SPDT 3A 6V |
40 |
|
Veri Sayfası |
G6E | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
