Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NC2EBD-JP-DC110VRELAY GEN PURPOSE DPDT 5A 110V |
20 |
|
Veri Sayfası |
NC | Box | Active | Through Hole | 110VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 88 VDC | 11 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|

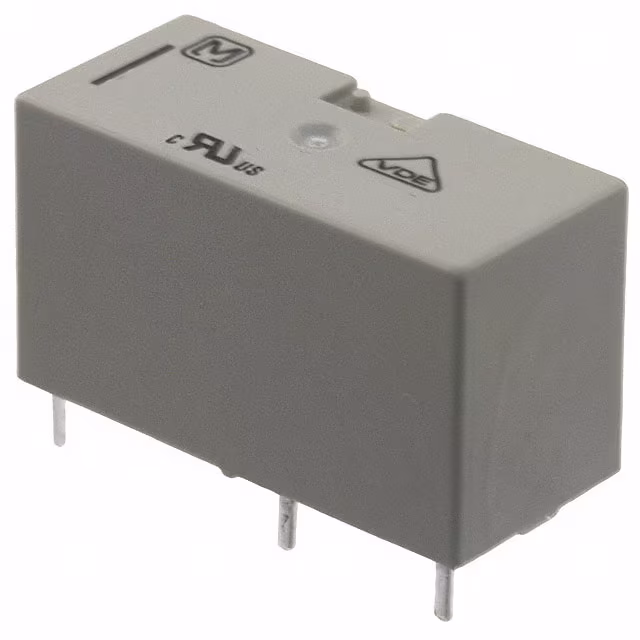

ADJ14005RELAY GEN PURPOSE SPDT 16A 5V |
32 |
|
Veri Sayfası |
ADJ | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
2906988RELAY GEN PURPOSE DPDT 8A 12V |
6 |
|
Veri Sayfası |
REL-MR | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cULus, EAC, UR | General Purpose | - | - |
|
RXG21P7HARMONY, INTERFACE PLUG-IN RELAY |
6 |
|
Veri Sayfası |
Harmony | Box | Active | Socketable | 230VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | Test Button | Plug In | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|
G7L-1A-T-J-CB AC200/240RELAY GEN PURPOSE SPST 30A 240V |
34 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 10.2 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-2A-T-J-CB AC24RELAY GEN PURPOSE DPST 25A 24V |
14 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 71 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VAC | 3.6 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
ADJ13105RELAY GEN PURPOSE SPDT 16A 5V |
92 |
|
Veri Sayfası |
ADJ | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 50 mA | Latching, Dual Coil | Test Button | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
RR2BA-ULDC48VRELAY GEN PURPOSE DPDT 10A 48V |
15 |
|
Veri Sayfası |
RR | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 30 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 38.4 VDC | 4.8 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|

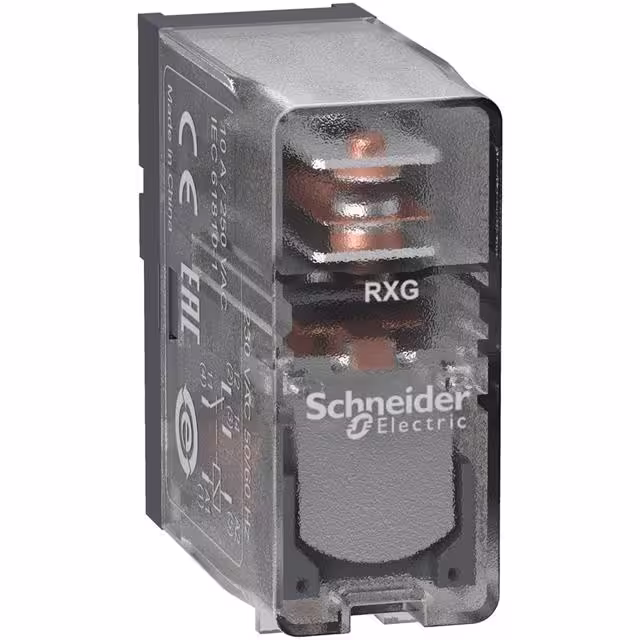

RXG15P7HARMONY, INTERFACE PLUG-IN RELAY |
10 |
|
Veri Sayfası |
Harmony | Box | Active | Socketable | 230VAC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | - | Non Latching | - | Plug In | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|

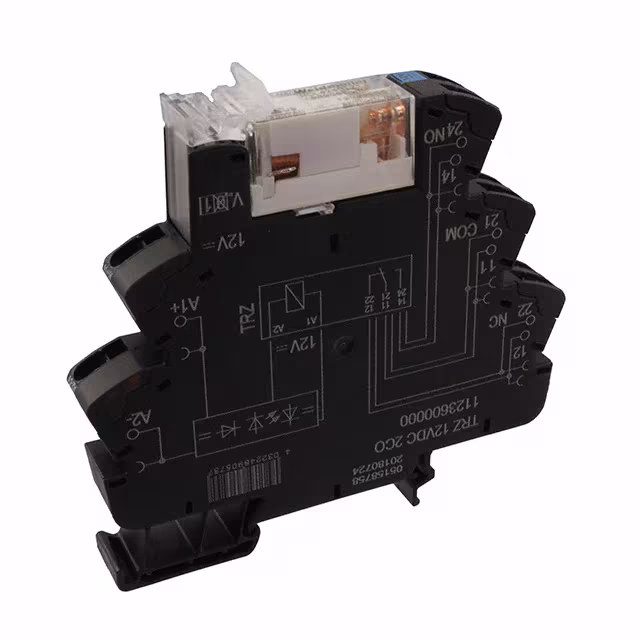

1123600000RELAY GEN PURPOSE DPDT 8A 12V |
10 |
|
Veri Sayfası |
TERMSERIES | Bulk | Active | DIN Rail | 12VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | 9 VDC | 2 VDC | 8 ms | 12 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
15525.2RELAY GEN PURPOSE SPDT 6A 12V |
22 |
|
Veri Sayfası |
ZPRCU | Box | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | - | Non Latching | - | Spring Terminal | - | - | 9.6 VDC | 0.6 VDC | 5 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CSA, UL | General Purpose | - | - |
|
RXG23B7HARMONY, INTERFACE PLUG-IN RELAY |
10 |
|
Veri Sayfası |
Harmony | Box | Active | Socketable | 24VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|

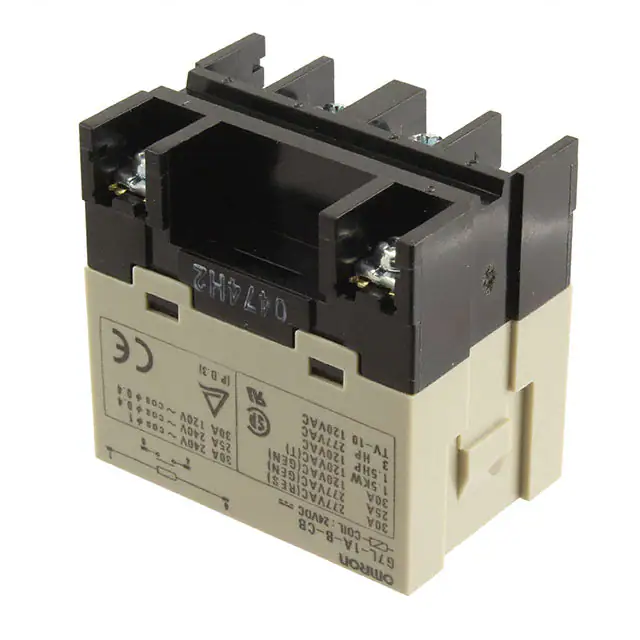

G7L-1A-B-CB AC12RELAY GEN PURPOSE SPST 30A 12V |
7 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 12VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 142 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VAC | 1.8 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-2A-TUBJ-80-CB DC12RELAY GEN PURPOSE DPST 25A 12V |
19 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 158 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|

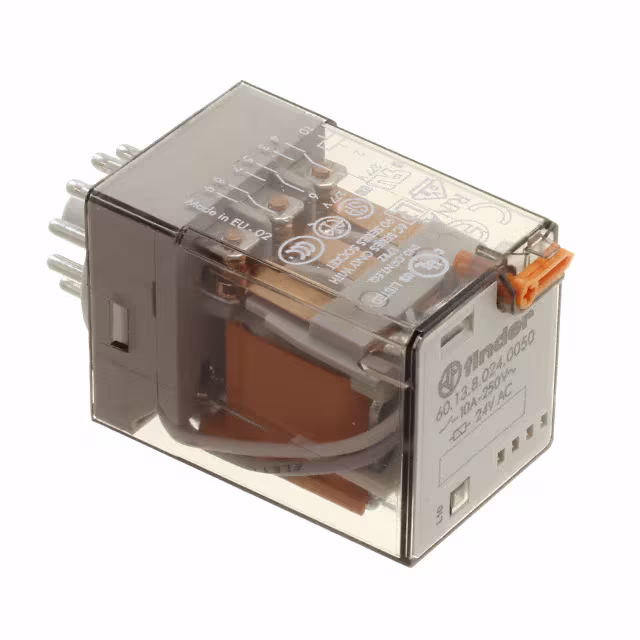

60.13.8.024.0050RELAY GEN PURPOSE 3PDT 10A 24V |
14 |
|
Veri Sayfası |
60 | Bulk | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 90 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 19.2 VAC | 4.8 VAC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|

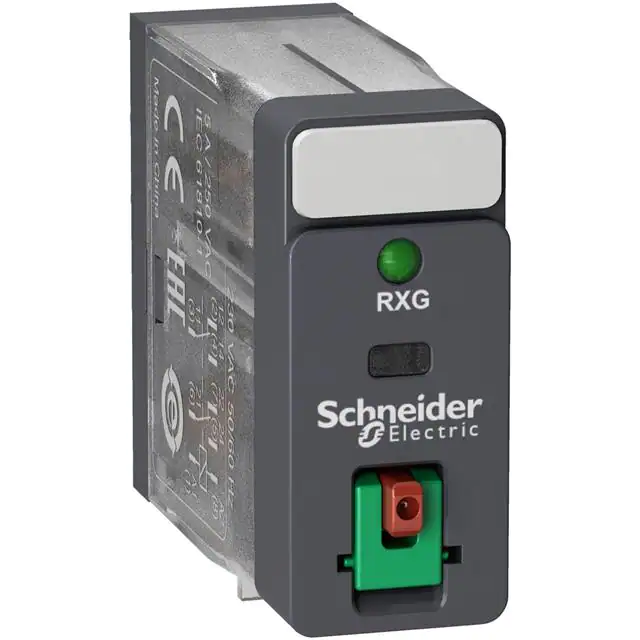

RXG22E7HARMONY, INTERFACE PLUG-IN RELAY |
10 |
|
Veri Sayfası |
Harmony | Box | Active | Socketable | 48VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 38.4 VAC | 14.4 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|
PT280024RELAY GEN PURPOSE DPDT 12A 24V |
11 |
|
Veri Sayfası |
PT, SCHRACK | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 30.8 mA | Non Latching | - | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
HE1AN-Q-AC24VRELAY GEN PURPOSE SPST 30A 24V |
13 |
|
Veri Sayfası |
HE | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 74 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 16.8 VAC | 3.6 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
HE1AN-AC12VRELAY GEN PURPOSE SPST 30A 12V |
8 |
|
Veri Sayfası |
HE | Bulk | Active | Chassis Mount | 12VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 138 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 8.4 VAC | 1.8 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
|
G7L-2A-T-CB DC24RELAY GEN PURPOSE DPST 25A 24V |
24 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
