Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE1AN-S-AC120VRELAY GEN PURPOSE SPST 30A 120V |
87 |
|
Veri Sayfası |
HE | Bulk | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 22.1 mA | Non Latching | - | Screw Terminal | - | - | 84 VAC | 18 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
G7L-1A-BUB-CB AC24RELAY GEN PURPOSE SPST 30A 24V |
16 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 71 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VAC | 3.6 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-2A-T-80-CB AC100/120RELAY GEN PURPOSE DPST 25A 120V |
13 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 20.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-2A-B-CB AC200/240RELAY GEN PURPOSE DPST 25A 240V |
7 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 10.2 mA | Non Latching | - | Screw Terminal | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
S3EB-L2-12VRELAY GEN PURPOSE 4PST 4A 12V |
34 |
|
Veri Sayfası |
S | Box | Active | Through Hole | 12VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 15 ms | 15 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|

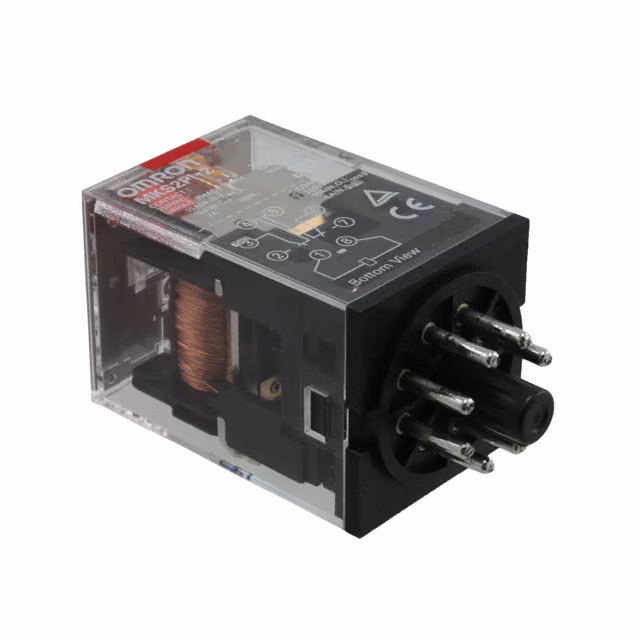

MKS2PI-2 AC24RELAY GEN PURPOSE DPDT 10A 24V |
38 |
|
Veri Sayfası |
MK-S | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 96.3 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | CSA, cURus, TUV | General Purpose | - | - |
|
MJN3C-IN-DC48RELAY GEN PURPOSE 3PDT 10A 48V |
10 |
|
Veri Sayfası |
MJN | Bulk | Active | Socketable | 48VDC | 3PDT (3 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 25 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 36 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
DE2A-L-12VRELAY GEN PURPOSE DPST 8A 12V |
40 |
|
Veri Sayfası |
DE | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 8.3 mA | Latching, Single Coil | - | PC Pin | - | - | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
2909744RELAY GEN PURPOSE 4PDT 6A 120V |
8 |
|
Veri Sayfası |
REL-IR | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 6 A | 250VAC, 250VDC - Max | - | 13 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In | - | - | - | - | 15 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
|
T92P11A24-240RELAY GEN PURPOSE DPDT 30A 240V |
0 |
|
- |
T92 | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 63.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 24 VAC | 25 ms | 25 ms | -55°C ~ 65°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | UR | General Purpose | - | - |
|
G7L-1A-B DC100RELAY GEN PURPOSE SPST 30A 100V |
33 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 100VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 19 mA | Non Latching | - | Screw Terminal | - | - | 75 VDC | 15 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
RXG21E7HARMONY, INTERFACE PLUG-IN RELAY |
10 |
|
Veri Sayfası |
Harmony | Box | Active | Socketable | 48VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | Test Button | Plug In | - | - | 38.4 VAC | 14.4 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|
RXG22P7HARMONY, INTERFACE PLUG-IN RELAY |
48 |
|
Veri Sayfası |
Harmony | Box | Active | Socketable | 230VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|

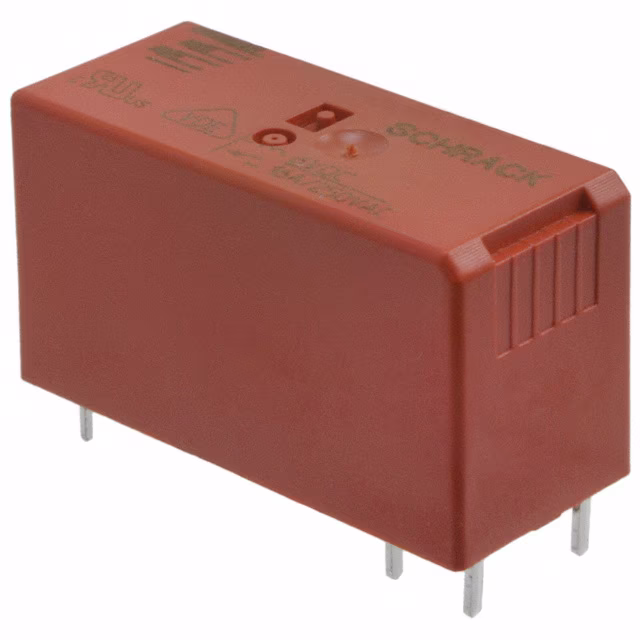

RTX3-1AT-B006RELAY GEN PURPOSE SPST 16A 6V |
78 |
|
Veri Sayfası |
RTX, SCHRACK | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 109 mA | Latching, Single Coil | - | PC Pin | - | Class F | 4.5 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | cURus, VDE | General Purpose | - | - |
|
|
RTX3-1AT-B009RELAY GEN PURPOSE SPST 16A 9V |
73 |
|
Veri Sayfası |
RTX, SCHRACK | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 74 mA | Latching, Single Coil | - | PC Pin | - | Class F | 6.8 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | cURus, VDE | General Purpose | - | - |
|
LY2ZN-D2 DC100/110RELAY GEN PURPOSE DPDT 5A 110V |
6 |
|
Veri Sayfası |
LY | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 10 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 88 VDC | 11 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-2A-P-CB AC100/120RELAY GEN PURPOSE DPST 20A 120V |
12 |
|
Veri Sayfası |
G7L | Bulk | Active | Through Hole | 120VAC | DPST-NO (2 Form A) | 20 A | 250VAC - Max | 5000VA | 20.4 mA | Non Latching | - | PC Pin | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-2A-BJ-CB AC200/240RELAY GEN PURPOSE DPST 25A 240V |
8 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 10.2 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
AHES3190RELAY GEN PURPOSE DPST 35A 6V |
80 |
|
Veri Sayfası |
HE-S | Tray | Active | Through Hole | 6VDC | DPST-NO (2 Form A) | 35 A | 277VAC - Nom | - | 313 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 4.5 VDC | 0.3 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
AHES3195RELAY GEN PURPOSE DPST 35A 9V |
49 |
|
Veri Sayfası |
HE-S | Tray | Active | Through Hole | 9VDC | DPST-NO (2 Form A) | 35 A | 277VAC - Nom | - | 209 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.45 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
