Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RTD14615RELAY GEN PURPOSE SPDT 16A 115V |
400 |
|
Veri Sayfası |
RT1, SCHRACK | Tube | Active | Through Hole | 115VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 86.3 VAC | 17.3 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G2R-1-T DC5RELAY GEN PURPOSE SPDT 10A 5V |
501 |
|
Veri Sayfası |
G2R | Tray | Active | Chassis Mount | 5VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 106 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DK1A-24V-FRELAY GEN PURPOSE SPST 10A 24V |
1,805 |
|
Veri Sayfası |
DK | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G2R-24 DC5RELAY GEN PURPOSE DPDT 4A 5V |
543 |
|
Veri Sayfası |
G2R | Tray | Active | Through Hole | 5VDC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
RT314F05RELAY GEN PURPOSE SPDT 16A 5V |
3,760 |
|
Veri Sayfası |
RT1 Bistable, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 119 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
40.62.7.012.0000RELAY GEN PURPOSE DPDT 10A 12V |
1,731 |
|
Veri Sayfası |
40 | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 42 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 1.2 VDC | 12 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA | General Purpose | - | - |
|
DE1A-24VRELAY GEN PURPOSE SPST 10A 24V |
153 |
|
Veri Sayfası |
DE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
G6C-1114P-US DC12RELAY GEN PURPOSE SPST 10A 12V |
1,830 |
|
Veri Sayfası |
G6C | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-1-T DC12RELAY GEN PURPOSE SPDT 10A 12V |
1,070 |
|
Veri Sayfası |
G2R | Tray | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 43.6 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DE1A-5VRELAY GEN PURPOSE SPST 10A 5V |
477 |
|
Veri Sayfası |
DE | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
G4A-1A-PE DC24RELAY GEN PURPOSE SPST 20A 24V |
12,493 |
|
Veri Sayfası |
G4A | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -20°C ~ 60°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|

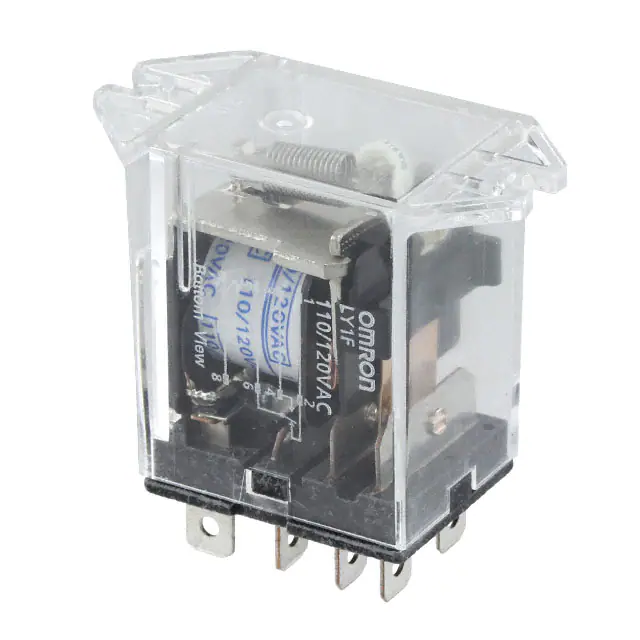

LY1F-AC110/120RELAY GEN PURPOSE SPDT 15A 120V |
170 |
|
Veri Sayfası |
LY | Bulk | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 9.2 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
DK1A1B-12VRELAY GEN PURPOSE DPST 8A 12V |
652 |
|
Veri Sayfası |
DK | Box | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
DK1A1B-5VRELAY GEN PURPOSE DPST 8A 5V |
488 |
|
Veri Sayfası |
DK | Box | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
40.62.7.024.0000RELAY GEN PURPOSE DPDT 10A 24V |
125 |
|
Veri Sayfası |
40 | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 21 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 2.4 VDC | 12 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA | General Purpose | - | - |
|
PT570024RELAY GEN PURPOSE 4PDT 6A 24V |
1,036 |
|
Veri Sayfası |
PT, SCHRACK | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 30.8 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
PT270024RELAY GEN PURPOSE DPDT 12A 24V |
1,132 |
|
Veri Sayfası |
PT, SCHRACK | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 30.8 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
G6C-1114P-US DC24RELAY GEN PURPOSE SPST 10A 24V |
1,554 |
|
Veri Sayfası |
G6C | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
T9CP1A52-120RELAY GEN PURPOSE SPST 30A 110V |
219 |
|
Veri Sayfası |
T9C, OEG | Bulk | Active | Chassis Mount | 110VAC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 13.3 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 88 VAC | 33 VAC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR, VDE | General Purpose | - | - |
|
G2R-1A-E-T130 DC12RELAY GEN PURPOSE SPST 16A 12V |
135 |
|
Veri Sayfası |
G2R | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
