DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBS400B03DC DC CONVERTER 3.3V 264W |
2 |
|
Veri Sayfası |
DBS (400W) | 21-DIP Module | Box | Obsolete | Isolated Module | 1 | 200V | 400V | 3.3V | - | - | - | 80A | 264 W | - | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|
UMHV1250NDC DC CONVERTER -5000V 500MW |
5 |
|
Veri Sayfası |
UMHV | 5-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 10.8V | 13.2V | -5000V | - | - | - | 100µA | 500 mW | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 55% | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | - |
|
V300C12C150BSDC DC CONVERTER 12V 150W |
4 |
|
Veri Sayfası |
MICRO (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 180V | 375V | 12V | - | - | - | 12.5A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 85.3% | - | - | Through Hole | 2.28" L x 1.45" W x 0.54" H (57.9mm x 36.8mm x 13.7mm) | - | - | - | - |
|
HAE200-110S24WDC DC CONVERTER 24V 240W |
4 |
|
Veri Sayfası |
HAE200W (240W) | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 10A | 240 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 60950-1 |
|

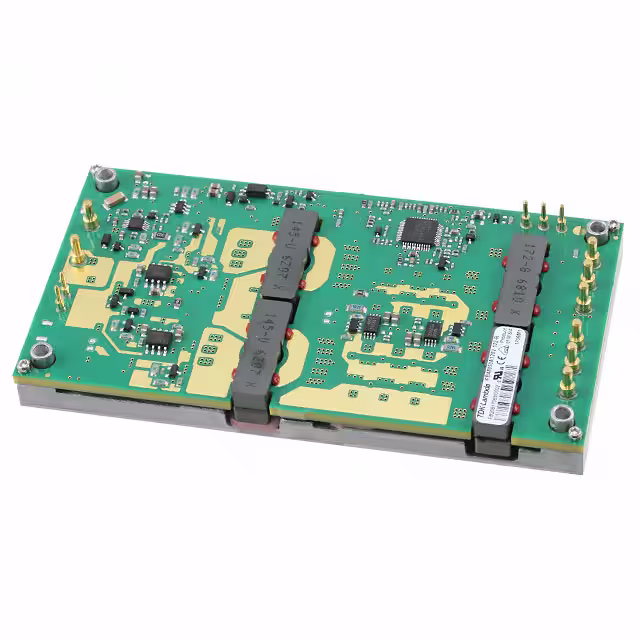

IFB48050A120V-122-RDC DC CONVERTER 12V 600W |
15 |
|
Veri Sayfası |
iFB (600W) | 18-DIP Module, 10 Leads | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 125°C | 94% | - | - | Through Hole | 4.60" L x 2.40" W x 0.44" H (116.8mm x 61.0mm x 11.3mm) | - | - | - | - |
|
CHVM2-12-1500NWDC DC CONVERTER -1500V 2W |
10 |
|
Veri Sayfası |
CHVM (3W) | 7-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 10.8V | 16.5V | -1500V | - | - | - | 1.3mA | 1.95 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | 4.33" L x 0.47" W x 0.78" H (110.0mm x 12.0mm x 19.8mm) | - | Enable, Active Low | CE, CSA, UL | 62368-1 |
|
|
V375C48T150BL2DC DC CONVERTER 48V 150W |
2 |
|
Veri Sayfası |
MICRO (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 250V | 425V | 48V | - | - | - | 3.13A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 86.3% | - | - | Through Hole | 2.28" L x 1.45" W x 0.65" H (57.9mm x 36.8mm x 16.5mm) | - | - | - | - |
|
1V12-N0.5DC DC CONVERTER 100V 500MW |
4 |
|
Veri Sayfası |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | 1.81" L x 0.47" W x 0.98" H (46.0mm x 12.0mm x 25.0mm) | - | Enable, Active Low | CE, cUL, cURus, UL | - |
|
|
VE-2NF-CW-SDC DC CONVERTER 72V 100W |
12 |
|
Veri Sayfası |
VE-200™ (100W) | Full Brick | Bulk | Active | Isolated Module | 1 | 36V | 76V | 72V | - | - | - | 1.39A | 100 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP | -25°C ~ 85°C | 90% | - | - | Through Hole | 4.60" L x 1.80" W x 0.52" H (116.8mm x 45.7mm x 13.2mm) | - | - | - | - |
|
|
HAE200-110S05WDC DC CONVERTER 5V 220W |
5 |
|
Veri Sayfası |
HAE200W (240W) | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 44A | 220 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 60950-1 |
|
|
1.25V15-N0.8DC DC CONVERTER 1250V 800MW |
12 |
|
Veri Sayfası |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 14V | 16V | 1250V | - | - | - | 640µA | 800 mW | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | 1.81" L x 0.47" W x 0.98" H (46.0mm x 12.0mm x 25.0mm) | - | Enable, Active Low | CE, cUL, cURus, UL | - |
|
|
PLD500-DHTA24-28DC/DC CONVERTER 28V 500W |
16 |
|
Veri Sayfası |
- | Half Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 9V | 36V | 28V | - | - | - | 18A | 504 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 100°C (With Derating) | 94.5% | - | - | Through Hole | 2.50" L x 2.40" W x 0.52" H (63.5mm x 61.0mm x 13.2mm) | Half Brick | Enable, Active High | - | - |
|
|
PLD500-DHTA24-24DC/DC CONVERTER 24V 500W |
15 |
|
Veri Sayfası |
- | Half Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 21A | 504 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 100°C (With Derating) | 93.5% | - | - | Through Hole | 2.50" L x 2.40" W x 0.52" H (63.5mm x 61.0mm x 13.2mm) | Half Brick | Enable, Active High | - | - |
|
|
1.25V24-N1DC DC CONVERTER 1250V 1W |
2 |
|
Veri Sayfası |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 22V | 26V | 1250V | - | - | - | 800µA | 1 W | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | 1.81" L x 0.47" W x 0.98" H (46.0mm x 12.0mm x 25.0mm) | - | Enable, Active Low | CE, cUL, cURus, UL | - |
|
CDS6004812DC DC CONVERTER 12.5V 700W |
20 |
|
Veri Sayfası |
CDS (600W) | 23-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 12.5V | - | - | - | - | 700 W | 500 V | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|
CDS6002428DC DC CONVERTER 28V 616W |
3 |
|
Veri Sayfası |
CDS (600W) | 23-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 22A | 616 W | 500 V | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|
|
2V5-N0.5DC DC CONVERTER 2000V 500MW |
4 |
|
Veri Sayfası |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 5.5V | 2000V | - | - | - | 250µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | 1.81" L x 0.47" W x 0.98" H (46.0mm x 12.0mm x 25.0mm) | - | Enable, Active Low | CE, cUL, cURus, UL | - |
|
ICF0719V1PCDC DC CONVERTER 53V 1.007KW |
4 |
|
Veri Sayfası |
iCF (1000W) | Full Brick | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 53V | - | - | - | 19A | 1.007 kW | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 105°C (With Derating) | 96.4% | - | - | Through Hole | 4.70" L x 2.50" W x 0.52" H (119.4mm x 63.5mm x 13.2mm) | Full Brick | - | - | - |
|
|
2.5V12-N0.8DC DC CONVERTER 2500V 800MW |
4 |
|
Veri Sayfası |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 2500V | - | - | - | 320µA | 800 mW | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | 1.81" L x 0.47" W x 0.98" H (46.0mm x 12.0mm x 25.0mm) | - | Enable, Active Low | CE, cUL, cURus, UL | - |
|
|
2V24-P1DC DC CONVERTER 2000V 1W |
4 |
|
Veri Sayfası |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 22V | 26V | 2000V | - | - | - | 500µA | 1 W | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | 1.81" L x 0.47" W x 0.98" H (46.0mm x 12.0mm x 25.0mm) | - | Enable, Active High | CE, cUL, cURus, UL | - |
