DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RQB-100Y48CDC-DC,14-160V INPUT, 48V/2.08A O |
16 |
|
Veri Sayfası |
RQB-100Y | Quarter Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 2.08A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm) | Quarter Brick | - | cCSAus, CE | 62368-1 |
|
|
RQB-100Y54FDC-DC,14-160V INPUT, 54V/1.85A O |
16 |
|
Veri Sayfası |
RQB-100Y | Quarter Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 1.85A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C | 90% | - | - | Through Hole | 2.44" L x 2.20" W x 0.57" H (62.0mm x 56.0mm x 14.5mm) | Quarter Brick | - | cCSAus, CE | 62368-1 |
|
RDQ100110S24DC DC CONVERTER 24V 100W |
8 |
|
Veri Sayfası |
RDQ (100W) | 8-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 66V | 160V | 24V | - | - | - | 4.2A | 100 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 91% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
QAE100-72S24U-KISOLATED / 100W/ VOUT:24 |
10 |
|
Veri Sayfası |
QAE100U (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 4.2A | 101 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
QAE100-72S24U-KPISOLATED / 100W/ VOUT:24 |
2 |
|
Veri Sayfası |
QAE100U (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 4.2A | 101 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
AM75QB-11012SA30JZ65W DC/DC CONVERTER |
5 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Box | Obsolete | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 6.25A | 75 W | 3 kV | Railway | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | - |
|

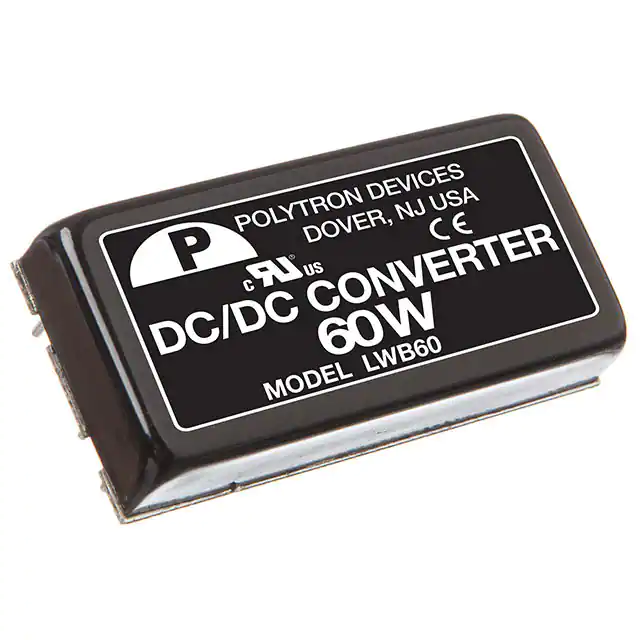

LWB60-24S5DC DC CONVERTER 5V 60W |
5 |
|
Veri Sayfası |
LWB60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
LWB60-48S5DC DC CONVERTER 5V 60W |
5 |
|
Veri Sayfası |
LWB60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
LWB60-48S12DC DC CONVERTER 12V 60W |
4 |
|
Veri Sayfası |
LWB60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
AM250HB-11005SA30JZ-K-BDC DC CONVERTER 5V 200W |
2 |
|
Veri Sayfası |
AM250HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 40V | 160V | 5V | - | - | - | 40A | 200 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.44" L x 2.00" W x 1.25" H (62.0mm x 58.0mm x 31.8mm) | Half Brick | - | - | - |
|
|
AM250HB-11012SA30JZ-K-BDC DC CONVERTER 12V 250W |
2 |
|
Veri Sayfası |
AM250HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 40V | 160V | 12V | - | - | - | 20.84A | 250 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 90% | - | - | Through Hole | 2.44" L x 2.00" W x 1.25" H (62.0mm x 58.0mm x 31.8mm) | Half Brick | - | - | - |
|
AE15-UW-S15DC DC CONVERTER 15V 15W |
0 |
|
Veri Sayfası |
AE15-UW (15W) | 5-DIP Module | Tray | Obsolete | Isolated Module | 1 | 200V | 1500V | 15V | - | - | - | 1A | 15 W | 4 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 70°C (With Derating) | 72% | - | - | Through Hole | 4.92" L x 2.95" W x 1.57" H (125.0mm x 75.0mm x 40.0mm) | - | - | CSA | C22.2 No. 107.1-01 |
|
CBS3502448DC DC CONVERTER 48V 302W |
4 |
|
Veri Sayfası |
CBS (350W) | Half Brick | Box | Obsolete | Isolated Module | 1 | 20V | 36V | 48V | - | - | - | 6.3A | 302 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | - | - | - |
|
|
LWB60-24S33DC DC CONVERTER 3.3V 40W |
5 |
|
Veri Sayfası |
LWB60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 12A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
LWB60-48S24DC DC CONVERTER 24V 60W |
4 |
|
Veri Sayfası |
LWB60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 2.5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
QAE100-72S05U-KISOLATED / 100W/ VOUT:5 |
3 |
|
Veri Sayfası |
QAE100U (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 20A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
QAE100-72S12U-KISOLATED / 100W/ VOUT:12 |
2 |
|
Veri Sayfası |
QAE100U (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 8.35A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 |
|
|
HAE100-24S05WDC DC CONVERTER 5V 100W |
10 |
|
Veri Sayfası |
HAE100W (100W) | Half Brick | Box | Active | Isolated Module | 1 | 8.5V | 36V | 5V | - | - | - | 20A | 100 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 93% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | - |
|
|
HAE100-110S28WDC DC CONVERTER 28V 101W |
5 |
|
Veri Sayfası |
HAE100W (100W) | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 28V | - | - | - | 3.6A | 101 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 60950-1 |
|
|
HAE100-110S24WDC DC CONVERTER 24V 101W |
4 |
|
Veri Sayfası |
HAE100W (100W) | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 4.2A | 101 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 60950-1 |
