DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

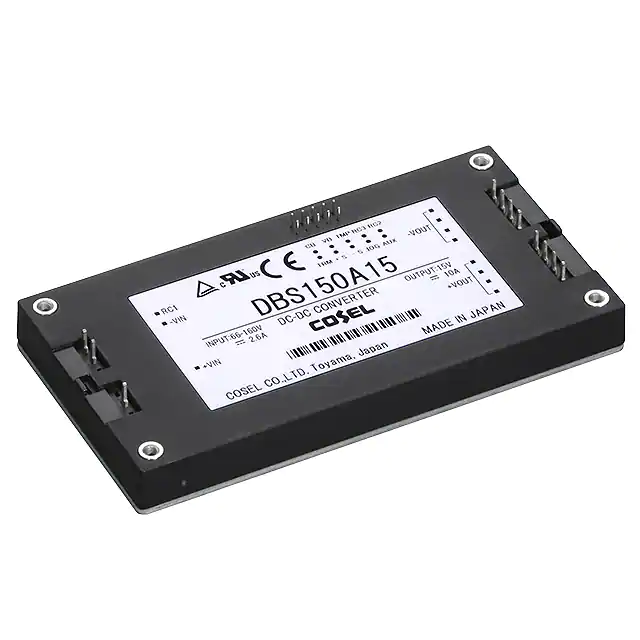

DBS150A15DC DC CONVERTER 15V 150W |
5 |
|
Veri Sayfası |
DBS (150W) | 21-DIP Module | Box | Obsolete | Isolated Module | 1 | 66V | 160V | 15V | - | - | - | 10A | 150 W | - | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|
PT4661ADC DC CONVERTER 5V 3.3V 99W |
2 |
|
Veri Sayfası |
Excalibur™ PT4660 | 26-SIP Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 5V | 3.3V | - | - | 10A, 15A | 99 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
CHB150-110S12DC DC CONVERTER 12V 150W |
15 |
|
Veri Sayfası |
CHB150-110S (150W) | Half Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 12.5A | 150 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 92.5% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 50155; 62368-1 |
|
|
QAE60-72S05U-PISOLATED / 60W/ VOUT:5 |
10 |
|
Veri Sayfası |
QAE60U (60W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 12A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
QAE150-24S24WDC DC CONVERTER 24V 120W |
10 |
|
Veri Sayfası |
QAE150W (132W) | Quarter Brick | Box | Active | Isolated Module | 1 | 8.5V | 36V | 24V | - | - | - | 5A | 120 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Standby Output | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus | 62368-1 |
|
|
MPQ60-48S24WISOLATED / 60W / VOUT: 24 |
4 |
|
Veri Sayfası |
MPQ60W (60W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 2.5A | 60 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, CE, cURus, UKCA | 60601-1; 62368-1 |
|
|
AM150HB-11024SA30JZ-K-BDC DC CONVERTER 24V 150W |
4 |
|
Veri Sayfası |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 6.25A | 150 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 91% | - | - | Through Hole | 2.44" L x 2.00" W x 1.25" H (62.0mm x 58.0mm x 31.8mm) | Half Brick | - | - | - |
|
|
AM150HB-11012SA30JZ-K-BDC DC CONVERTER 12V 150W |
3 |
|
Veri Sayfası |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 12.5A | 150 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.44" L x 2.00" W x 1.25" H (62.0mm x 58.0mm x 31.8mm) | Half Brick | - | - | - |
|
|
AM150HB-11015SA30JZ-K-BDC DC CONVERTER 15V 150W |
3 |
|
Veri Sayfası |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 10A | 150 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.44" L x 2.00" W x 1.25" H (62.0mm x 58.0mm x 31.8mm) | Half Brick | - | - | - |
|
|
AM150HB-11005SA30JZ-K-BDC DC CONVERTER 5V 120W |
3 |
|
Veri Sayfası |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 24A | 120 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.44" L x 2.00" W x 1.25" H (62.0mm x 58.0mm x 31.8mm) | Half Brick | - | - | - |
|
|
QAE150-48S24WDC DC CONVERTER 24V 120W |
4 |
|
Veri Sayfası |
QAE150W (132W) | Quarter Brick | Box | Active | Isolated Module | 1 | 16.5V | 75V | 24V | - | - | - | 5A | 120 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus | - |
|

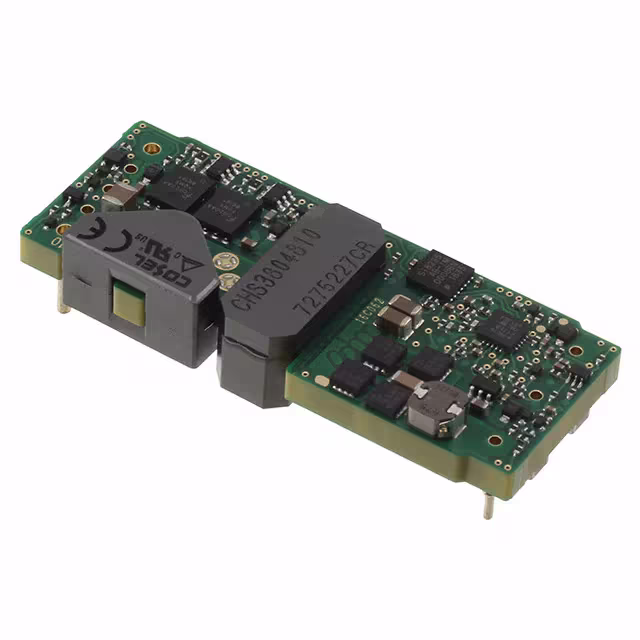

CHS3804810DC DC CONVERTER 10V 380W |
8 |
|
Veri Sayfası |
CHS (380W) | 8-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 10V | - | - | - | 38A | 380 W | 2.25 kV | ITE (Commercial) | OCP, OVP | -40°C ~ 85°C | 94% | - | - | Through Hole | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm) | - | - | - | - |
|
|
CHS3804812DC DC CONVERTER 12V 384W |
3 |
|
Veri Sayfası |
CHS (380W) | 8-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 32A | 384 W | 2.25 kV | ITE (Commercial) | OCP, OVP | -40°C ~ 85°C | 94.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm) | - | - | - | - |
|
UWTH1D48QB-100WHR3ISOLATED MODULE DC DC CONVERTER |
20 |
|
Veri Sayfası |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 2.08A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D15QB-100WHR3ISOLATED MODULE DC DC CONVERTER |
20 |
|
Veri Sayfası |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 6.67A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D54QB-100WHR3ISOLATED MODULE DC DC CONVERTER |
20 |
|
Veri Sayfası |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 1.85A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D12QB-100WHR3ISOLATED MODULE DC DC CONVERTER |
15 |
|
Veri Sayfası |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D28QB-100WHR3ISOLATED MODULE DC DC CONVERTER |
13 |
|
Veri Sayfası |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 28V | - | - | - | 3.57A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D24QB-100WHR3ISOLATED MODULE DC DC CONVERTER |
12 |
|
Veri Sayfası |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 4.16A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
UWTH1D24QB-100WFR3ISOLATED MODULE DC DC CONVERTER |
16 |
|
Veri Sayfası |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 4.16A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
