DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASD15H-48S5Isolated and Regulated 15 WATT O |
12 |
|
Veri Sayfası |
ASD15H (15W) | 8-DIP Module, 6 Leads | Tape & Box (TB) | Active | Isolated Module | 1 | 20V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -25°C ~ 71°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.50" W x 0.45" H (50.8mm x 38.1mm x 11.5mm) | - | Enable, Active High | CSA, UL | - |
|
|
ODC40-48SC36-WPOWER SUPPLY, DC/DC, 8:1 Input, |
5 |
|
Veri Sayfası |
ODC40-SC (40W) | 6-DIP Module | Retail Package | Active | Isolated Module | 1 | 9V | 75V | 48V | - | - | - | 830mA | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 65°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | CE, FCC, UR | 62368-1 |
|
|
ODC40-23WC36-WPOWER SUPPLY, DC/DC, 8:1 Input, |
5 |
|
Veri Sayfası |
ODC40-SC (40W) | 6-DIP Module | Retail Package | Active | Isolated Module | 2 | 9V | 75V | 15V | -15V | - | - | 1.33A, 1.33A | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 65°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | CE, FCC, UR | 62368-1 |
|
|
ODC40-24SC36-WPOWER SUPPLY, DC/DC, 8:1 Input, |
5 |
|
Veri Sayfası |
ODC40-SC (40W) | 6-DIP Module | Retail Package | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 1.67A | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 65°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | CE, FCC, UR | 62368-1 |
|
|
ODC40-22WC36-WPOWER SUPPLY, DC/DC, 8:1 Input, |
3 |
|
Veri Sayfası |
ODC40-SC (40W) | 6-DIP Module | Retail Package | Active | Isolated Module | 2 | 9V | 75V | 12V | -12V | - | - | 1.67A, 1.67A | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 65°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | CE, FCC, UR | 62368-1 |
|
|
GMR10D00415W Dual Ouput Isolated Module |
8 |
|
Veri Sayfası |
GMR10D (15W) | 4-DIP Module | Bulk | Active | Isolated Module, Conformal Coated | 2 | 100V | 360V | 6V | 22V | - | - | 500mA | 15 W | 1.5 kV | Industrial, Railway | OCP, OTP, OVP | -20°C ~ 70°C | 85.5% | - | - | Through Hole, Vertical | 0.94" L x 0.87" W x 0.89" H (24.0mm x 22.0mm x 22.5mm) | 16-DIP | - | - | - |
|
UEI30-050-Q48P-CDC DC CONVERTER 5V 30W |
5 |
|
- |
UEI (60W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 6A | 30 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.92" L x 0.92" W x 0.35" H (48.8mm x 23.4mm x 8.9mm) | - | Enable, Active High | CE, cURus | 60950-1 |
|

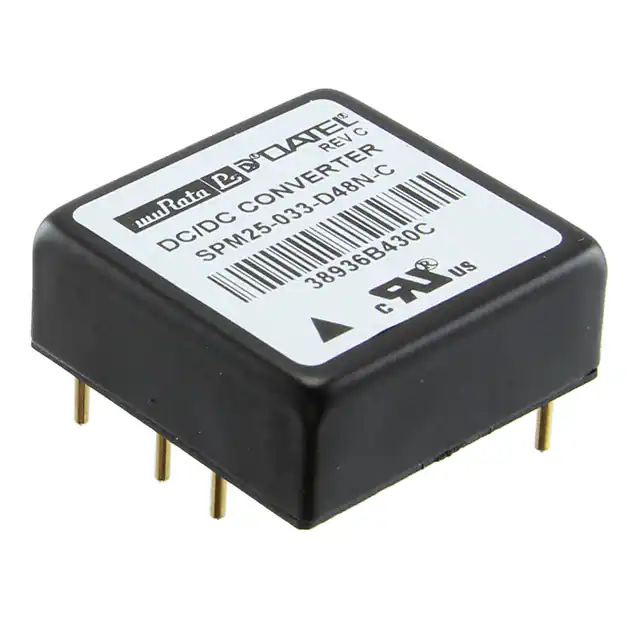

SPM25-033-D48N-CDC DC CONVERTER 3.3V 25W |
6 |
|
- |
SPM25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 7.575A | 25 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89.5% | - | - | Through Hole | 1.00" L x 1.00" W x 0.41" H (25.4mm x 25.4mm x 10.4mm) | - | Enable, Active Low | - | 60950-1 |
|
SPM25-050-D48P-CDC DC CONVERTER 5V 25W |
20 |
|
- |
SPM25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 5A | 25 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.41" H (25.4mm x 25.4mm x 10.4mm) | - | Enable, Active High | - | 60950-1 |
|
NPH15S4803ICDC DC CONVERTER 3.4V 15W |
10 |
|
- |
NPH15S (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.4V | - | - | - | 4.4A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 110°C (With Derating) | 83% | - | - | Through Hole | 1.97" L x 0.98" W x 0.39" H (50.0mm x 24.9mm x 9.9mm) | - | Enable, Active Low | cURus | - |
|
|
ASD15-12S12Isolated and Regulated 15 WATT M |
17 |
|
Veri Sayfası |
ASD15 (15W) | 8-DIP Module, 6 Leads | Tape & Box (TB) | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 3A | 15 W | 500 V | ITE (Commercial) | - | -25°C ~ 71°C | - | - | - | Through Hole | 2.00" L x 1.60" W x 0.38" H (50.8mm x 40.6mm x 9.5mm) | - | - | UL | - |
|
|
ATMV24V250V32MA18W Isolated DC-DC Power Module |
3 |
|
Veri Sayfası |
- | 5-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 18V | 36V | 250V | - | - | - | 32mA | 8 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
|
|
NPH25S2403ICDC DC CONVERTER 3.4V 25W |
10 |
|
- |
NPH25S (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.4V | - | - | - | 7.3A | 25 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 110°C (With Derating) | 81% | - | - | Through Hole | 1.97" L x 1.38" W x 0.39" H (50.0mm x 35.1mm x 9.9mm) | - | Enable, Active Low | cURus | - |
|
|
AM50QB-11015SA30JZ-BDC DC CONVERTER 15V 50W |
3 |
|
Veri Sayfası |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 3.33A | 50 W | 3 kV | Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | 50155 |
|
|
AM50QB-11003SA30JZ-BDC DC CONVERTER 3.3V 38W |
3 |
|
Veri Sayfası |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 11.3A | 37.5 W | 3 kV | Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 86% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | 50155 |
|
|
AM50QB-11048SA30JZ-BDC DC CONVERTER 48V 50W |
2 |
|
Veri Sayfası |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 48V | - | - | - | 1.04A | 50 W | 3 kV | Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 87% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | 50155 |
|
|
AM75QB-11012SA30JZ-BDC DC CONVERTER 12V 75W |
3 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 6.25A | 75 W | 3 kV | Industrial, Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | 50155 |
|
|
AM75QB-11024SA30JZ-BDC DC CONVERTER 24V 75W |
3 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 3.12A | 75 W | 3 kV | Industrial, Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 91% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | 50155 |
|
LWA15-24-15DC DC CONVERTER +/-15V 15W |
5 |
|
Veri Sayfası |
LWA15 (15W) | 5-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE, cURus, UL | - |
|
|
ATMV12VPN100V40MA28W Isolated DC-DC Power Module |
3 |
|
Veri Sayfası |
- | 5-DIP Module | Tape & Box (TB) | Active | Isolated Module | 2 | 10V | 18V | 100V | -100V | - | - | 40mA, 40mA | 8 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
