DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM75QB-11005SA30JZ-K65W DC/DC CONVERTER |
3 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 15A | 75 W | 3 kV | Railway | Adjustable Output, Heat Sink, Remote Sense | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.39" L x 1.54" W x 1.09" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
AM75QB-11003SA30JZ30W DC/DC CONVERTER |
3 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 17A | 56 W | 3 kV | Railway | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
AM75QB-11015SA30JZ65W DC/DC CONVERTER |
3 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 5A | 75 W | 3 kV | Railway | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
AM75QB-11012SA30JZ-K65W DC/DC CONVERTER |
3 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 6.25A | 75 W | 3 kV | Railway | Adjustable Output, Heat Sink, Remote Sense | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.39" L x 1.54" W x 1.09" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
AM75QB-11003SA30JZ-K33W DC/DC CONVERTER |
3 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 17A | 56 W | 3 kV | Railway | Adjustable Output, Heat Sink, Remote Sense | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 2.39" L x 1.54" W x 1.09" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
AM75QB-11024SA30JZ499.2W DC/DC CONVERTER |
3 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 3.12A | 75 W | 3 kV | Railway | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 91% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
AM75QB-11005SA30JZ50W DC/DC CONVERTER |
2 |
|
Veri Sayfası |
AM75QB-JZ | Quarter Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 15A | 75 W | 3 kV | Railway | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
TWA8-24S5DC DC CONVERTER 5V 7.5W |
5 |
|
Veri Sayfası |
TWA8 (8W) | 24-DIP Module, 9 Leads | Bulk | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.5A | 7.5 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -25°C ~ 71°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
TWA5-24S15DC DC CONVERTER 15V 6W |
5 |
|
- |
TWA5 (5W) | 24-DIP Module, 10 Leads | Bulk | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -25°C ~ 71°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|

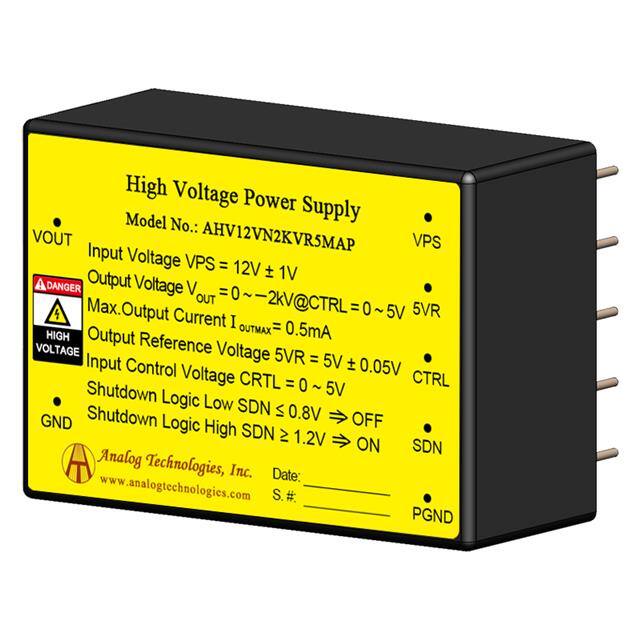

AHV12VN2KVR5MAPHigh Voltage -2kW Non-Isolated |
2 |
|
Veri Sayfası |
* | - | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AHV12V2KVR5MAPDIP High Voltage - Non-Isolated |
2 |
|
Veri Sayfası |
* | - | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AM100QB-11024SA30JZ100W DC/DC Converter |
5 |
|
Veri Sayfası |
AM100QB-JZ (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 4.1A | 100 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C | 91% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
AM100QB-11015SA30JZ100W DC/DC Converter |
3 |
|
Veri Sayfası |
AM100QB-JZ (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 6.6A | 100 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
AM100QB-11003SA30JZ75W DC/DC Converter |
2 |
|
Veri Sayfası |
AM100QB-JZ (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 22.7A | 75 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C | 86% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
AM100QB-11012SA30JZ-K100W DC/DC Converter |
4 |
|
Veri Sayfası |
AM100QB-JZ (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 8.3A | 100 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.39" L x 1.54" W x 1.09" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
AM100QB-11048SA30JZ-K100W DC/DC Converter |
3 |
|
Veri Sayfası |
AM100QB-JZ (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 48V | - | - | - | 2.08A | 100 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.39" L x 1.54" W x 1.09" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
AM100QB-11003SA30JZ-K75W DC/DC Converter |
3 |
|
Veri Sayfası |
AM100QB-JZ (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 22.7A | 75 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 86% | - | - | Through Hole | 2.39" L x 1.54" W x 1.09" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
AM100QB-11005SA30JZ-K100W DC/DC Converter |
2 |
|
Veri Sayfası |
AM100QB-JZ (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 20A | 100 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.39" L x 1.54" W x 1.09" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
ODC150-24SC48-WUltra wide input VDC 8:1 |
4 |
|
Veri Sayfası |
ODC150-SC (150W) | Half Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | - | - | 62368-1 |
|
|
ODC150-28SC48-WULTRA WIDE INPUT VDC 8:1 |
2 |
|
Veri Sayfası |
ODC150-SC (150W) | Half Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 28V | - | - | - | 5.357A | 150 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | - | - | 62368-1 |
