DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

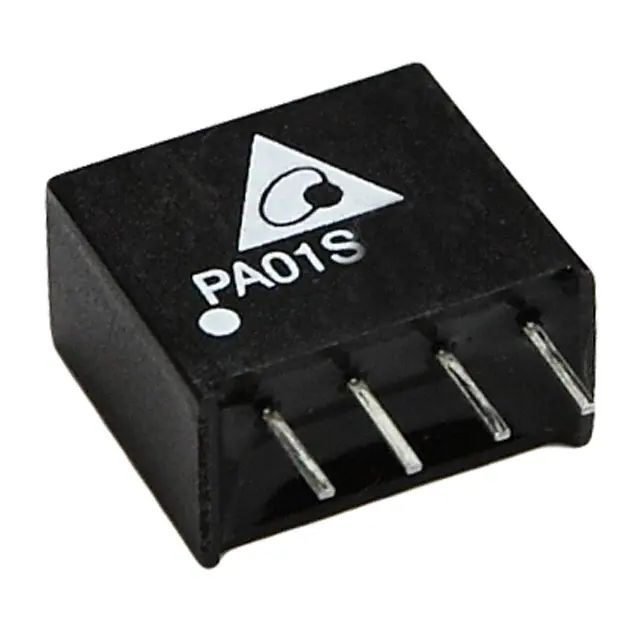

PA01S0505ADC DC CONVERTER 5V 1W |
0 |
|
Veri Sayfası |
PA01S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
1T8A1_0503S3UPDC-DC |
21 |
|
Veri Sayfası |
1T8A1_3UP (1W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 74% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | cURus | 62368-1 |
|
PDSE1-S12-D24-MDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
20 |
|
Veri Sayfası |
PDSE1-M (1W) | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 21mA, 21mA | 1.008 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
PDSE2-S15-S5-M-TRDC-DC 1.5KV ISOLATED, 2 W, 13.5~ |
0 |
|
Veri Sayfası |
PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE | 62368-1 |
|
PQME1-S15-S5-SDC-DC ISOLATED 1.5KV, 1 W, 14.25 |
25 |
|
Veri Sayfası |
PQME1-S (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 14.25V | 15.75V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE | 62368-1 |
|
|
PQME1-S12-S15-SDC-DC ISOLATED 1.5KV, 1 W, 11.4~ |
25 |
|
Veri Sayfası |
PQME1-S (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE | 62368-1 |
|
|
PQME1-S12-S9-SDC-DC ISOLATED 1.5KV, 1 W, 11.4~ |
10 |
|
Veri Sayfası |
PQME1-S (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE | 62368-1 |
|
AM2S-1205SZDC DC CONVERTER 5V 2W |
2 |
|
Veri Sayfası |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AM2S-1212SZDC DC CONVERTER 12V 2W |
0 |
|
Veri Sayfası |
AM2S-Z (2W) | 4-SIP Module | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - | |
|
AM2S-1209SZDC DC CONVERTER 9V 2W |
0 |
|
Veri Sayfası |
AM2S-Z (2W) | 4-SIP Module | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - | |
|
|
PQME1-S12-S5-SDC-DC ISOLATED 1.5KV, 1 W, 11.4~ |
0 |
|
Veri Sayfası |
PQME1-S (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE | 62368-1 |
|
|
1769205141WPME-FISM FIXED ISOLATED SIP/SMT |
0 |
|
Veri Sayfası |
MagI³C, FISM | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Discontinued | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 90.5% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | 8-SMT (13.2x8.5) | - | - | 62368-1 |
|
PESE1-S12-D12-M-TRDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
0 |
|
Veri Sayfası |
PESE1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1.008 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S15-S15-M-TRDC-DC ISOLATED 3KV, 1 W, 13.5~16 |
0 |
|
Veri Sayfası |
PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1.005 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S12-D15-M-TRDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
0 |
|
Veri Sayfası |
PESE1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 34mA, 34mA | 1.02 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S12-D24-M-TRDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
0 |
|
Veri Sayfası |
PESE1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 21mA, 21mA | 1.008 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S12-D5-M-TRDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
0 |
|
Veri Sayfası |
PESE1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S24-S15-M-TRDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
0 |
|
Veri Sayfası |
PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1.005 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S15-S5-M-TRDC-DC ISOLATED 3KV, 1 W, 13.5~16 |
0 |
|
Veri Sayfası |
PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S12-D9-M-TRDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
0 |
|
Veri Sayfası |
PESE1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 56mA, 56mA | 1.008 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus | 62368-1 |
