DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A0312XT-1WR3-TRDC DC CONVERTER +/-12V 1W |
200 |
|
Veri Sayfası |
A0312XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | - | - |
|
|
F2405D-2WR3ISOLATED MODULE DC DC CONVERTER |
148 |
|
Veri Sayfası |
F_D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | 62368-1 |
|
|
F2424D-2WR3ISOLATED MODULE DC DC CONVERTER |
140 |
|
Veri Sayfası |
F_D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83mA | 1.99 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | 62368-1 |
|
B0305XT-1WR3DC DC CONVERTER 5V 1W |
2,757 |
|
Veri Sayfası |
B0305XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tray | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | - | - |
|
B0303XT-1WR3DC DC CONVERTER 3.3V 1W |
1,416 |
|
Veri Sayfası |
B0303XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 77% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | - | - |
|

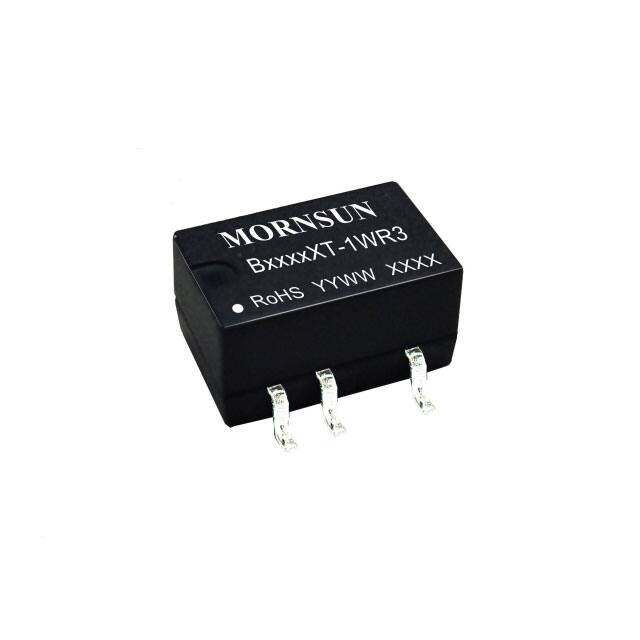

B0324XT-1WR3DC DC CONVERTER 24V 1W |
1,331 |
|
Veri Sayfası |
B0324XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tray | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | - | - |
|
F1203XT-1WR3DC DC CONVERTER 3.3V 1W |
329 |
|
Veri Sayfası |
F1203XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 303mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 76% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UKCA, UL | 62368-1 |
|
|
CF0505XT-1WR3ISOLATED MODULE DC DC CONVERTER |
260 |
|
Veri Sayfası |
CF0505XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, EN, UKCA | 62368-1 |
|

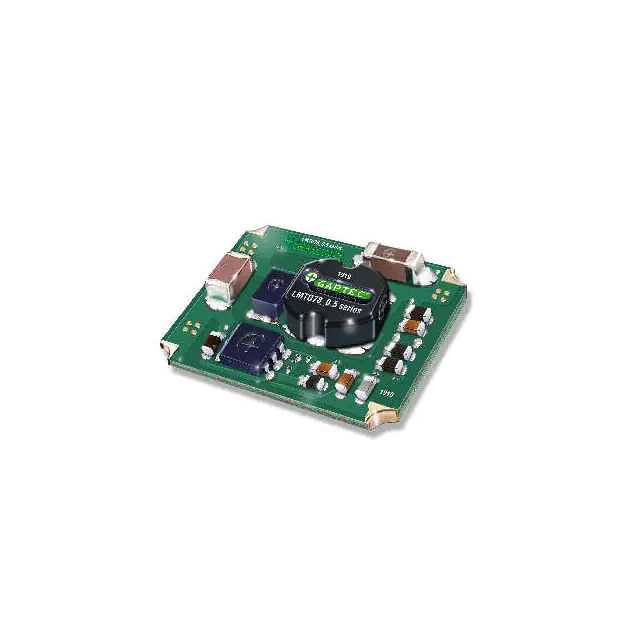

LMTO78_09-0.5DC-DC POL |
395 |
|
Veri Sayfası |
LMTO78_0.5 | 4-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 12V | 36V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 90% | - | - | Surface Mount | 0.53" L x 0.49" W x 0.14" H (13.5mm x 12.5mm x 3.5mm) | - | - | CE | 60950-1; 62368-1 |
|
PDSE1-S12-S5-SDC-DC 1.5KV ISOLATED, 1 W, 10.8~ |
131 |
|
Veri Sayfası |
PDSE1-S (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | CE, cURus | 62368-1 |
|
S05HID09-1WH2DC DC CONVERTER 1W |
19,500 |
|
Veri Sayfası |
1WH2 | 7-SIP Module, 5 Leads | Case | Active | Isolated Module | 2 | 4.75V | 5.25V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 3 kV | Industrial | - | -40°C ~ 85°C (With Derating) | 80 ~ 88% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
B1205LS-1WR3DC DC CONVERTER 5V 1W |
1,679 |
|
Veri Sayfası |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
VXO78015-500-M-TRDC DC CONVERTER 15V 7.5W |
775 |
|
Veri Sayfası |
VXO78-500-M | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 19V | 36V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Surface Mount | 0.53" L x 0.49" W x 0.14" H (13.5mm x 12.5mm x 3.5mm) | - | - | EN | 55024; 55032 Class A |
|
|
IF0515XT-1WR3-TRDC-DC ISOLATED 1 W 4.75~5.25V |
481 |
|
Veri Sayfası |
IF05 XT-1WR3-TR | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | - | 62368-1 |
|
|
IF0512XT-1WR3-TRDC-DC ISOLATED 1 W 4.75~5.25V |
477 |
|
Veri Sayfası |
IF05 XT-1WR3-TR | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | - | 62368-1 |
|
|
IF0515XT-1WR3DC-DC ISOLATED 1 W 4.75~5.25V |
435 |
|
Veri Sayfası |
IB05 XT-1WR3 | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE, UKCA | 62368-1 |
|
|
IF0512XT-1WR3DC-DC ISOLATED 1 W 4.75~5.25V |
415 |
|
Veri Sayfası |
IB05 XT-1WR3 | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE, UKCA | 62368-1 |
|
|
IF0509XT-1WR3-TRDC-DC ISOLATED 1 W 4.75~5.25V |
394 |
|
Veri Sayfası |
IF05 XT-1WR3-TR | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 70% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | - | 62368-1 |
|
F1209S-2WR3DC DC CONVERTER 9V 2W |
340 |
|
Veri Sayfası |
F1209S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
F1524S-2WR3DC DC CONVERTER 24V 2W |
180 |
|
Veri Sayfası |
F1524S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 24V | - | - | - | 83mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
