Güç Transformörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Voltaj - Birincil | Voltaj - İkincil (Tam Yük) | Akım - Çıkış (Maksimum) | Birincil Sarım(lar) | İkincil Sarım(lar) | Orta Çıkış (Center Tap) | Güç - Maksimum | Montaj Türü | Sonlandırma Stili | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Voltaj - Yalıtım | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DP-241-8-10PWR XFMR LAMINATED 100VA CHAS MT |
211 |
|
Veri Sayfası |
Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 10V | 10A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
AHR75314FMQ2PWR XFMR 75VA CHAS MT |
169 |
|
Veri Sayfası |
AHR | Box | Active | - | 480V | 24V | - | Single | Single | No | 75VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|

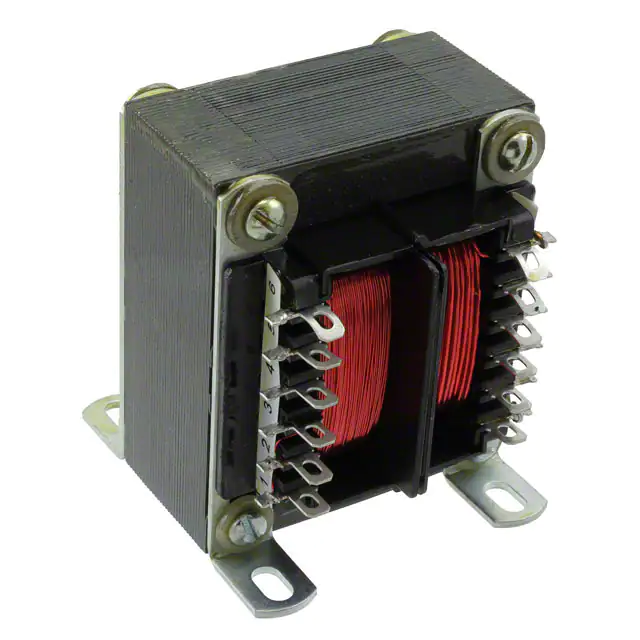

CL2-80-24PWR XFMR LAMINATED 80VA CHAS MT |
521 |
|
Veri Sayfası |
CL2 | Bulk | Active | Laminated Core | 115V, 230V | 24V | 3.33A | Dual | Single | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
LP-40-1200PWR XFMR SEMI-TORO 48VA TH |
302 |
|
Veri Sayfası |
LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms | 1.4 lbs (635 g) |
|
MPC-Y-15PWR XFMR LAMINATED 24VA TH |
106 |
|
Veri Sayfası |
MPC | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 15V | Parallel 360mA, Series 130mA | Single | Dual | Yes | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.90mm | 1500Vrms | 0.75 lb (340.19 g) |
|
A41-43-512PWR XFMR LAMINATED 43VA CHAS MT |
115 |
|
Veri Sayfası |
All-4-One™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 12V | Parallel 2A, Series 300mA | Dual | Dual | Yes | 43VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 54.40mm W | 68.20mm | 4000Vrms | 1.6 lbs (725.7 g) |
|

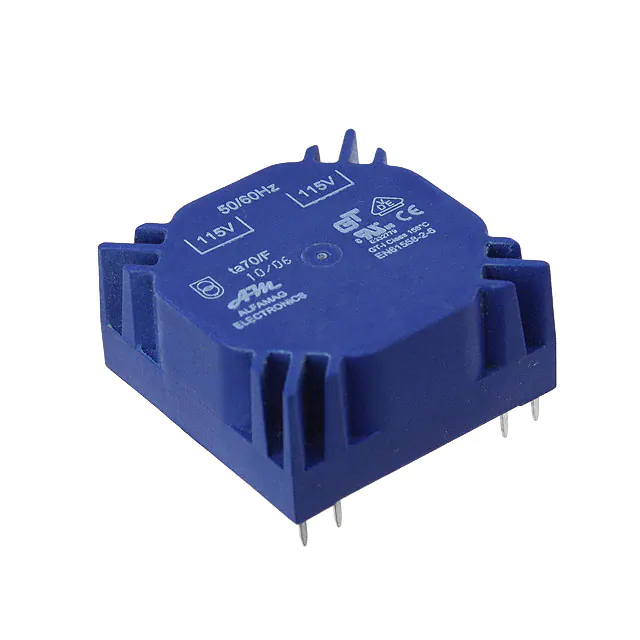

L01-6362PWR XFMR TOROIDAL 25VA TH |
277 |
|
Veri Sayfası |
L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.082A, Series 1.041A | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.959 lb (435 g) |
|

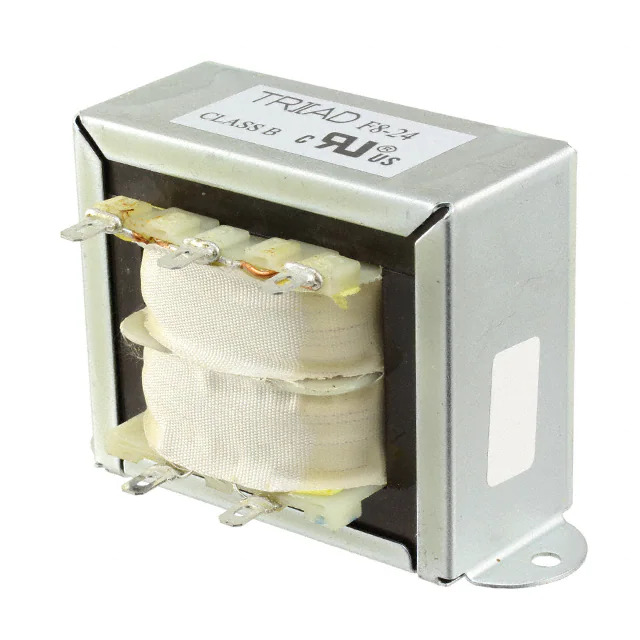

F8-24PWR XFMR LAMINATED 100VA CHAS MT |
161 |
|
Veri Sayfası |
Quick Pack | Box | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|
183K24PWR XFMR LAMINATED 56VA TH |
171 |
|
Veri Sayfası |
183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.66A, Series 2.33A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
IF-18-34PWR XFMR SEMI-TORO 18VA TH |
480 |
|
Veri Sayfası |
IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 1.06A, Series 530mA | Dual | Dual | No | 18VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 27.60mm | 4000Vrms | 0.882 lb (400.07 g) |
|
|
241-8-28PWR XFMR LAMINATED 100VA CHAS MT |
410 |
|
Veri Sayfası |
Two-4-One™ | Box | Active | Laminated Core | 115V | 28V | 3.6A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
185D24PWR XFMR LAMINATED 43VA CHAS MT |
345 |
|
Veri Sayfası |
185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 56.39mm W | 68.07mm | 4000Vrms | 1.8 lbs (816.5 g) |
|
|
DP-241-8-120PWR XFMR LAMINATED 100VA CHAS MT |
143 |
|
Veri Sayfası |
Two-4-One™ | Bulk | Active | Laminated Core | 115V, 230V | 120V | 850mA | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
A41-130-230PWR XFMR LAMINATED 130VA CHAS MT |
573 |
|
Veri Sayfası |
All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.14A, Series 570mA | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms | 4.1 lbs (1.9 kg) |
|

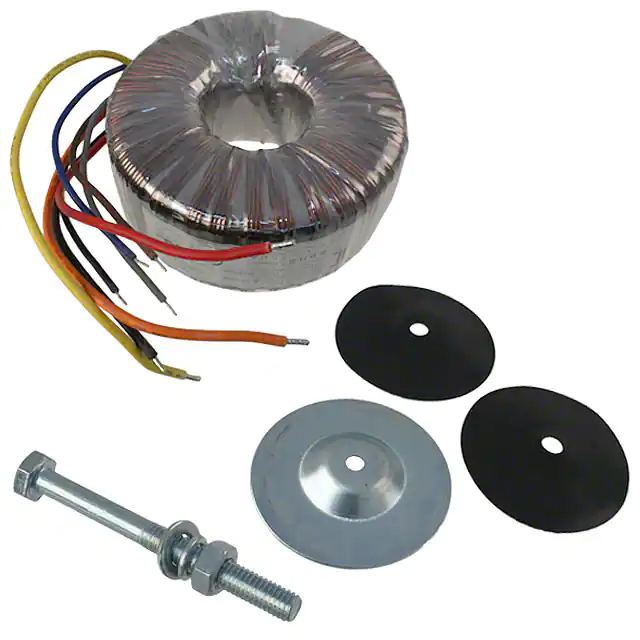

VPT30-1670PWR XFMR TOROIDAL 50VA CHAS MT |
308 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 3.34A, Series 1.67A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|

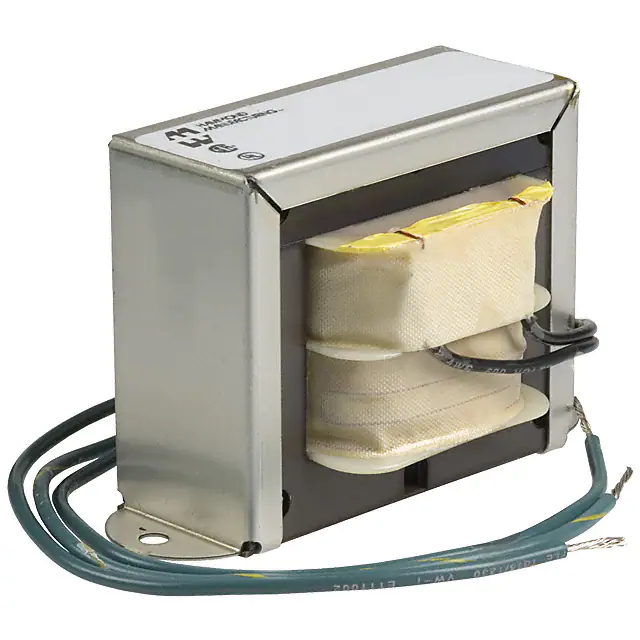

166L24PWR XFMR LAMINATED 48VA CHAS MT |
170 |
|
Veri Sayfası |
166 | Bulk | Active | Laminated Core | 115V | 24V | 2A | Single | Single | Yes | 48VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 1.9 lbs (861.8 g) |
|

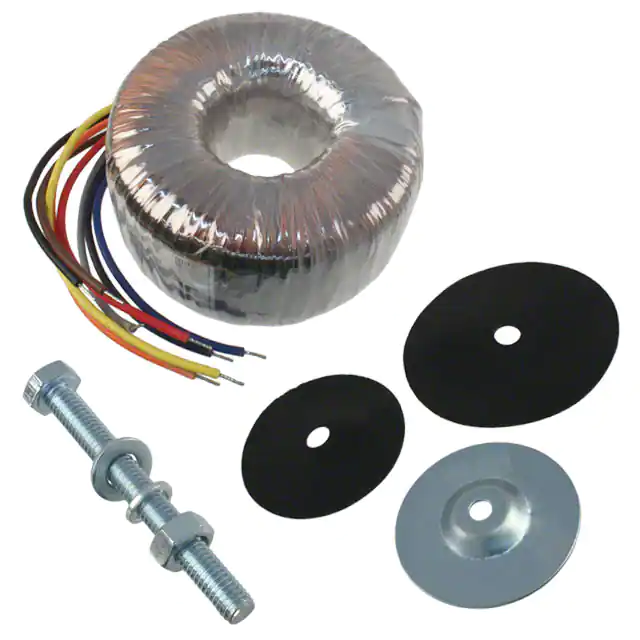

VPT230-430PWR XFMR TOROIDAL 100VA CHAS MT |
565 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 860mA, Series 430mA | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|
VPT36-2780PWR XFMR TOROIDAL 100VA CHAS MT |
127 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 5.56A, Series 2.78A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|

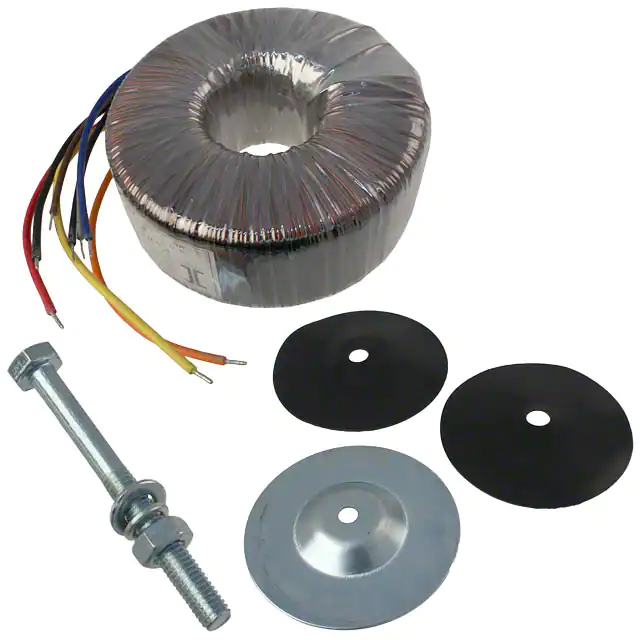

VPT48-3300PWR XFMR TOROIDAL 160VA CHAS MT |
1,331 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 6.66A, Series 3.33A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
VPS28-6250PWR XFMR LAMINATED 175VA CHAS MT |
103 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 12.5A, Series 6.25A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
