Güç Transformörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Voltaj - Birincil | Voltaj - İkincil (Tam Yük) | Akım - Çıkış (Maksimum) | Birincil Sarım(lar) | İkincil Sarım(lar) | Orta Çıkış (Center Tap) | Güç - Maksimum | Montaj Türü | Sonlandırma Stili | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Voltaj - Yalıtım | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

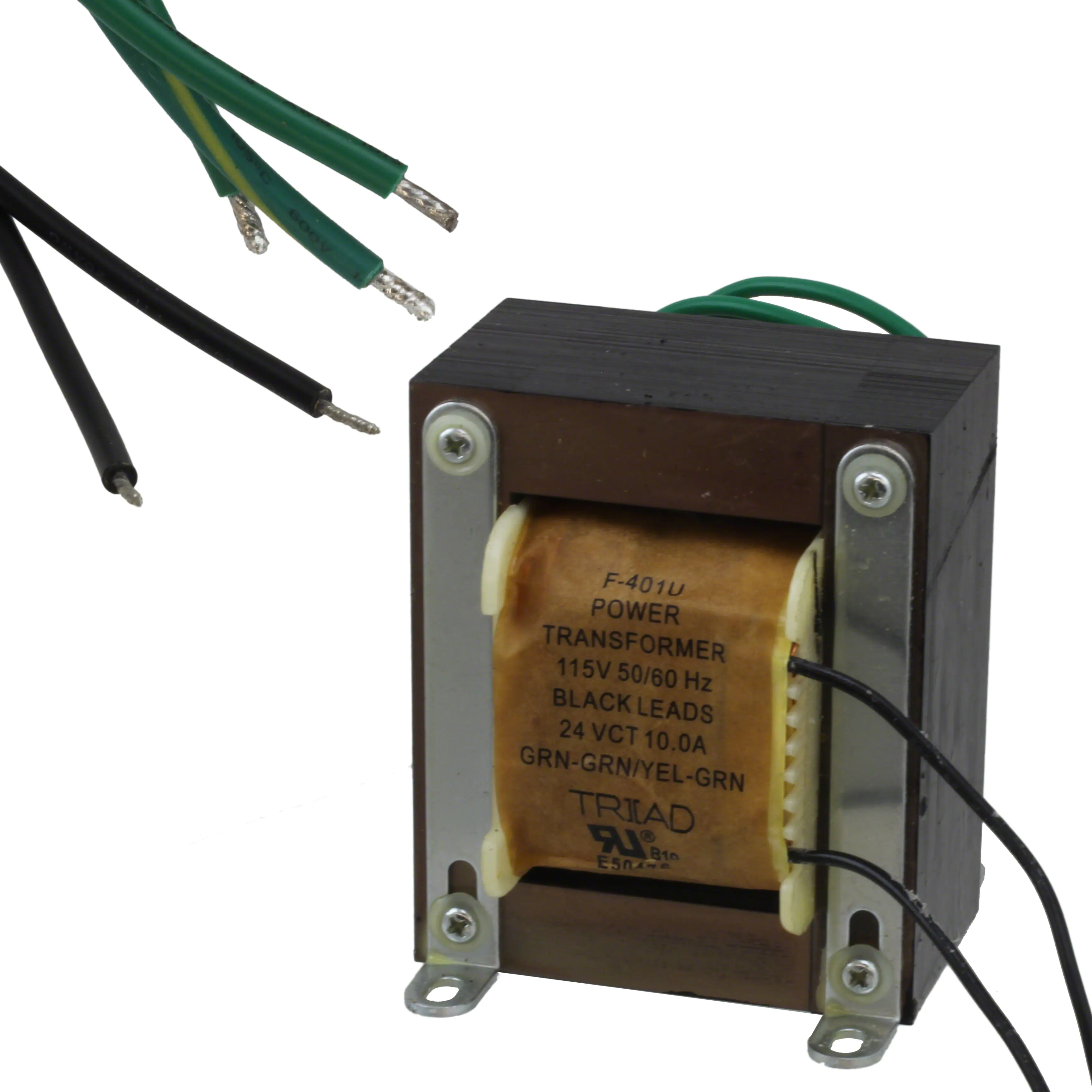

F-401UPWR XFMR LAMINATED 240VA CHAS MT |
41 |
|
Veri Sayfası |
Single Secondary | Box | Active | Laminated Core | 115V | 24V | 10A | Single | Single | Yes | 240VA | Chassis Mount | Wire Leads | 87.30mm L x 95.25mm W | 104.77mm | 1500Vrms | 8 lbs (3.6 kg) |
|

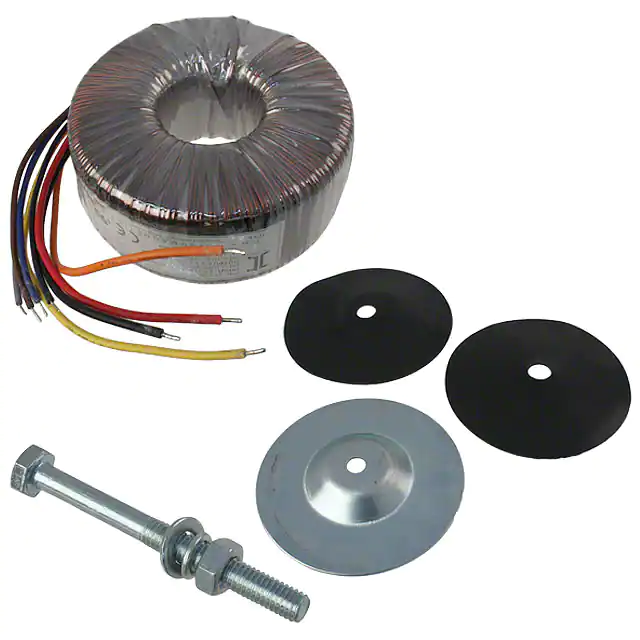

VPT36-4440PWR XFMR TOROIDAL 160VA CHAS MT |
34 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 8.88A, Series 4.44A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
185G230PWR XFMR LAMINATED 175VA CHAS MT |
55 |
|
Veri Sayfası |
185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 81.28mm W | 95.25mm | 4000Vrms | 5 lbs (2.3 kg) |
|

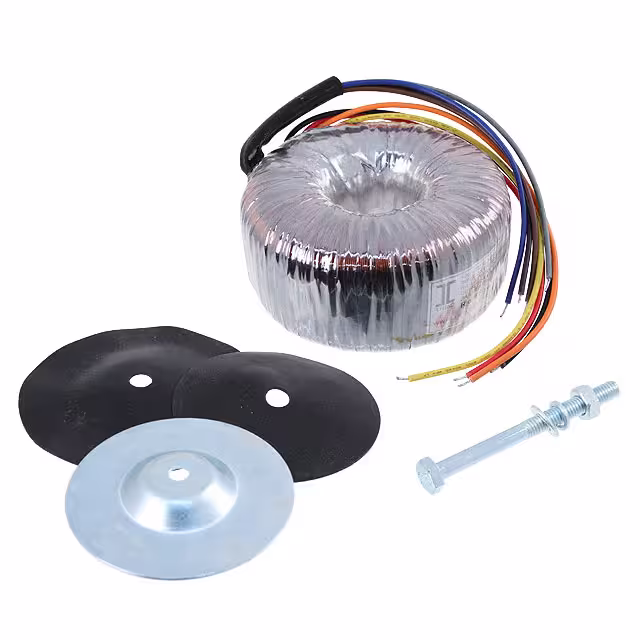

VPT230-1090PWR XFMR TOROIDAL 250VA CHAS MT |
296 |
|
Veri Sayfası |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 2.18A, Series 1.09A | Dual | Dual | No | 250VA | Chassis Mount | Wire Leads | 112.00mm Dia x 54.00mm W | 58.0mm | 4000Vrms | 4.9 lbs (2.2 kg) |
|
12.8-12PWR XFMR LAMINATED 153.6VA CHAS |
29 |
|
Veri Sayfası |
- | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 6.4V, Series 12.8V | Parallel 24A, Series 12A | Single, Multiple Taps | Single, Multiple Taps | Yes | 153.6VA | Chassis Mount | Solder, Quick Connect | 104.80mm L x 82.60mm W | 87.30mm | 1500Vrms | 6 lbs (2.7 kg) |
|
VPM240-2080PWR XFMR TOROIDAL 500VA CHAS MT |
100 |
|
Veri Sayfası |
Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 120V, Series 240V | Parallel 4.16A, Series 2.08A | Dual, Multiple Taps | Dual | No | 500VA | Chassis Mount | Wire Leads | 147.00mm Dia | 64.00mm | 4000Vrms | 11 lbs (5 kg) |
|
1500MD-1-003PWR XFMR TOROIDAL 1500VA CHAS MT |
44 |
|
Veri Sayfası |
MD | Box | Active | Toroidal | 100V, 120V, 200V, 240V | Parallel 120V, Series 240V | Parallel 12.5A, Series 6.25A | Dual, Multiple Taps | Single, Multiple Taps | No | 1500VA | Chassis Mount | Wire Leads | 200.00mm Dia x 90.00mm W | - | 5000Vrms | 26 lbs (11.8 kg) |
|
3FS-328PWR XFMR LAMINATED 2.4VA TH |
672 |
|
Veri Sayfası |
3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|
F12-090-C2PWR XFMR LAMINATED 1.1VA TH |
1,867 |
|
Veri Sayfası |
Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 4200Vrms | 0.17 lb (77.11 g) |
|
|
3FS-310PWR XFMR LAMINATED 2.4VA TH |
691 |
|
Veri Sayfası |
3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|
|
F28-085-C2PWR XFMR LAMINATED 2.4VA TH |
2,120 |
|
Veri Sayfası |
Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms | 0.25 lb (113.4 g) |
|
3FD-328PWR XFMR LAMINATED 2.4VA TH |
992 |
|
Veri Sayfası |
3FD-3xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|

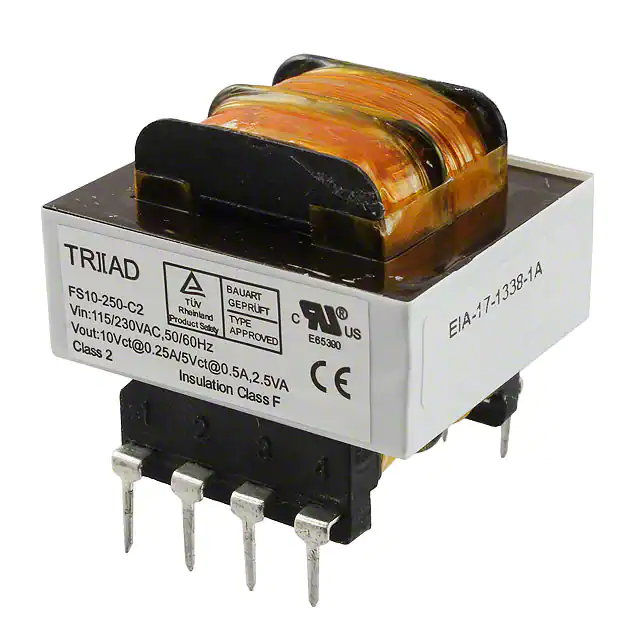

FS10-250-C2PWR XFMR LAMINATED 2.4VA TH |
152 |
|
Veri Sayfası |
Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms | 0.25 lb (113.4 g) |
|
|
F16-070-C2PWR XFMR LAMINATED 1.1VA TH |
324 |
|
Veri Sayfası |
Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
FS28-040-C2PWR XFMR LAMINATED 1.1VA TH |
261 |
|
Veri Sayfası |
Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 4200Vrms | 0.17 lb (77.11 g) |
|

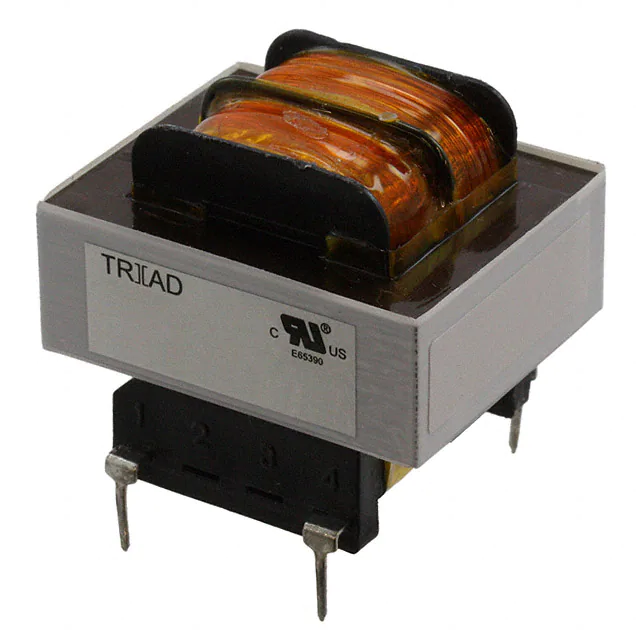

F10-250-C2PWR XFMR LAMINATED 2.5VA TH |
1,188 |
|
Veri Sayfası |
Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
3FS-220PWR XFMR LAMINATED 1.1VA TH |
180 |
|
Veri Sayfası |
3FS-2xx | Tube | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 25.40mm | 2500Vrms | - |
|
3FD-216PWR XFMR LAMINATED 1.1VA TH |
5,315 |
|
Veri Sayfası |
3FD-2xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 38.00mm | 2500Vrms | - |
|
3FD-210PWR XFMR LAMINATED 1.1VA TH |
2,692 |
|
Veri Sayfası |
3FD-2xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 25.40mm | 2500Vrms | - |
|
PL5.0-20-130BPWR XFMR LAMINATED 5VA TH |
516 |
|
Veri Sayfası |
PL5.0-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 500mA, Series 250mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms | - |
