Hoparlörler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Teknoloji | Tür | Frekans Aralığı | Frekans - Kendi Rezonansı | Empedans | Verimlilik - dBA | Verimlilik - Test | Verimlilik - Türü | Güç - Nominal | Güç - Maksimum | Port Konumu | Şekil | Malzeme - Konik | Malzeme - Mıknatıs | Giriş Koruma | Dereceler | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RC-1506SPEAKR 32OHM 20MW TOP PORT 110DB |
384 |
|
Veri Sayfası |
RC | Tray | Active | Magnetic | Receiver | 200 Hz ~ 3.4 kHz | - | 32 Ohms | 110.00 | - | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.091" (2.30mm) |
|
SM400608-2SPEAKER 8OHM 500MW TOP PORT 92DB |
723 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 6 kHz | 600Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.575" Dia (40.00mm) | 0.201" (5.10mm) |
|
SP-1511S-5SPEAKER 8OHM 500MW TOP PORT 82DB |
413 |
|
Veri Sayfası |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | - | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.157" (4.00mm) |
|
SM150508-7SPEAKER 8OHM 750MW TOP PORT 92DB |
620 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 10 kHz | 550Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 750 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
CMS-15113-076SSPEAKER 6OHM 700MW TOP PORT 92DB |
460 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
CMS-15113-076SPSPEAKER 6OHM 700MW TOP PORT 92DB |
0 |
|
Veri Sayfası |
CMS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
AS01316MR-RSPEAKR 16OHM 200MW TOP PORT 85DB |
202 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 1.1 kHz ~ 5 kHz | 1.1kHz | 16 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) | 0.110" (2.80mm) |
|
AS01304MR-RSPEAKER 4OHM 200MW TOP PORT 85DB |
200 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 5 kHz | 1.2kHz | 4 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) | 0.110" (2.80mm) |
|

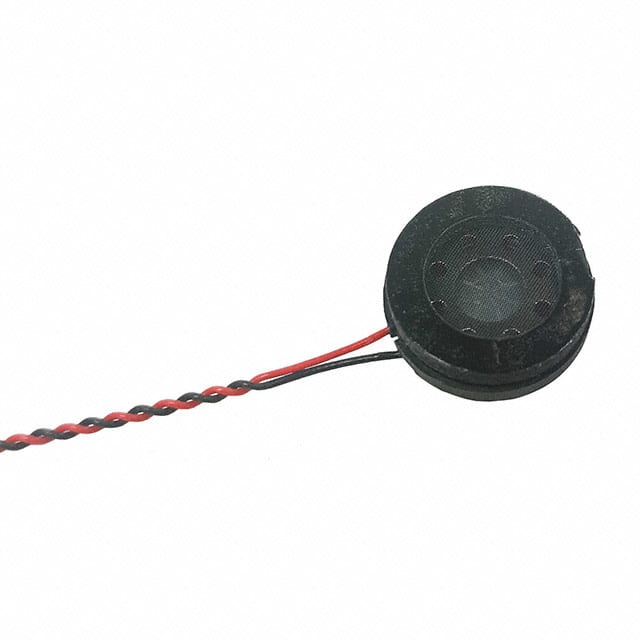

SP-1504-5SPEAKER 8OHM 500MW TOP PORT 92DB |
171 |
|
Veri Sayfası |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1kHz | 8 Ohms | 92.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.591" Dia (15.00mm) | 0.252" (6.40mm) |
|
CMS-181325-078SSPEAKER 8OHM 700MW TOP PORT 93DB |
0 |
|
Veri Sayfası |
CMS | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.098" (2.50mm) |
|

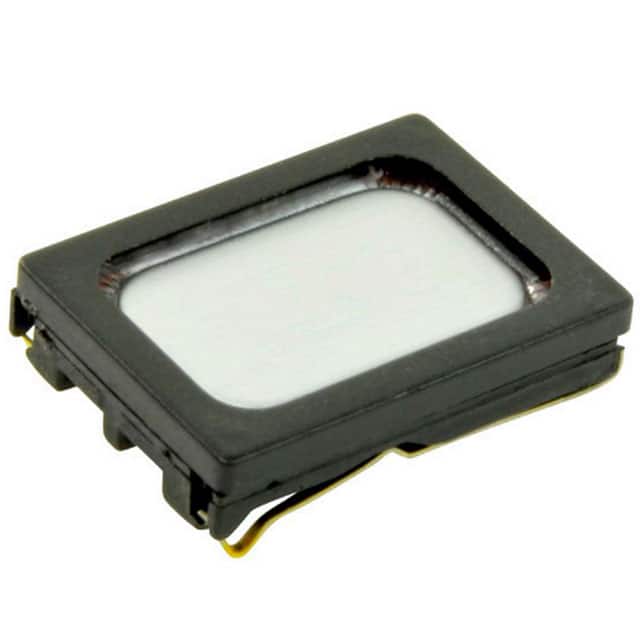

CMS-15113-076L100SPEAKER 6OHM 700MW TOP PORT 92DB |
825 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
CMS-151135-076L100SPEAKER 6OHM 700MW TOP PORT 92DB |
677 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|
CMS-15113-076SP-67SPEAKER 6OHM 700MW TOP PORT 92DB |
661 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
CMS-160925-078L100BSPEAKER 8OHM 700MW TOP PORT 90DB |
1,724 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.098" (2.50mm) |
|
CMS-15113-076L100BSPEAKER 6OHM 700MW TOP PORT 92DB |
500 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
|
CMS-151135-076L100BSPEAKER 6OHM 700MW TOP PORT 92DB |
500 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|
|
CMS-151135-076L100ASPEAKER 6OHM 700MW TOP PORT 92DB |
491 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|
|
CMS-15113-076L100ASPEAKER 6OHM 700MW TOP PORT 92DB |
491 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
|
CMS-160925-078L100ASPEAKER 8OHM 700MW TOP PORT 90DB |
490 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.098" (2.50mm) |
|
|
CMS-151125-078L100BSPEAKER 8OHM 700MW TOP PORT 91DB |
487 |
|
- |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
