Hoparlörler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Teknoloji | Tür | Frekans Aralığı | Frekans - Kendi Rezonansı | Empedans | Verimlilik - dBA | Verimlilik - Test | Verimlilik - Türü | Güç - Nominal | Güç - Maksimum | Port Konumu | Şekil | Malzeme - Konik | Malzeme - Mıknatıs | Giriş Koruma | Dereceler | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS04304PR-F-WP-RSPEAKER 4OHM 3W TOP PORT 85DB |
236 |
|
Veri Sayfası |
AS | Tray | Active | Magnetic | General Purpose | 180 Hz ~ 20 kHz | 180Hz | 4 Ohms | 85.00 | 3W/1M | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | Paper, Polyurethane (PU) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | - | 1.673" Dia (42.50mm) | 0.795" (20.20mm) |
|

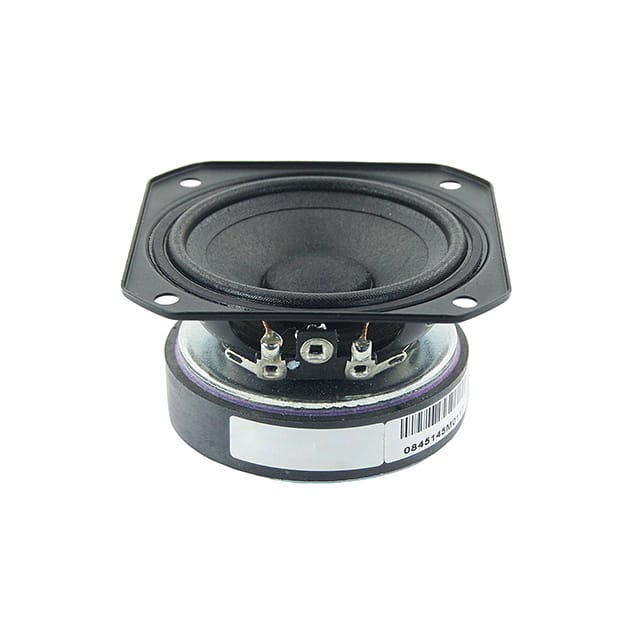

TC7FD04-04SPEAKR 4.41OHM 20W TOP PORT 88DB |
1,672 |
|
Veri Sayfası |
TC | Bulk | Active | Magnetic | Full Range | 200 Hz ~ 10 kHz | 201.81Hz | 4.41 Ohms | 88.00 | 1W/1M | Half Space Sensitivity | 20 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.756" L x 2.756" W (70.00mm x 70.00mm) | 1.646" (41.80mm) |
|
TC8FD00-04SPEAKR 4.19OHM 25W TOP PT 82.9DB |
195 |
|
Veri Sayfası |
TC | Bulk | Active | Magnetic | Full Range | 130 Hz ~ 20 kHz | 124.74Hz | 4.19 Ohms | 82.90 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.201" L x 3.201" W (81.30mm x 81.30mm) | 1.673" (42.50mm) |
|
CMS0461KLXSPEAKER 8OHM 2W TOP PORT 88DB |
270 |
|
Veri Sayfası |
CMS | Tray | Active | Magnetic | General Purpose | 160 Hz ~ 18 kHz | 160Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Square | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | - | 0.898" (22.80mm) |
|
TA6FD00-08SPEAKR 7.19OHM 10W TOP PT 80.9DB |
3,265 |
|
Veri Sayfası |
TA | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 150.1Hz | 7.19 Ohms | 80.90 | 1W/1M | Half Space Sensitivity | 10 W | - | Top | Round, Square Frame | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 2.323" L x 2.323" W (59.00mm x 59.00mm) | 1.403" (35.63mm) |
|

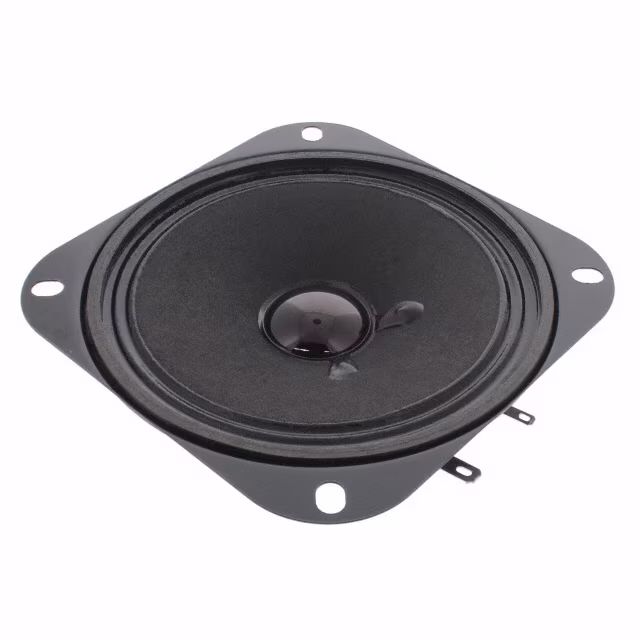

R 10 S TE - 4 OHMSPEAKER 4OHM 20W TOP PORT 90DB |
149 |
|
Veri Sayfası |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 13 kHz | 160Hz | 4 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 4.016" L x 4.016" W (102.00mm x 102.00mm) | 1.417" (36.00mm) |
|
2040N1625AL01-04SPEAKER 4.19OHM 1W TOP PT 81.1DB |
2,682 |
|
Veri Sayfası |
PMT | Bulk | Active | Magnetic | Full Range | 200 Hz ~ 20 kHz | 339.07Hz | 4.19 Ohms | 81.10 | 1W/1M | Half Space Sensitivity | 1 W | - | Top | Rectangular | Aluminum (AI) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.673" L x 1.083" W (42.50mm x 27.50mm) | 0.374" (9.50mm) |
|
|
SMS-2030MSSPEAKR 30OHM 500MW TOP PORT 91DB |
361 |
|
Veri Sayfası |
SMS | Tape & Reel (TR) | Active | - | General Purpose | 760 Hz ~ 10 kHz | 760Hz | 30 Ohms | 91.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Square | Polyimide (PI) | - | - | - | Solder Pads | 0.787" L x 0.787" W (20.00mm x 20.00mm) | 0.185" (4.70mm) |
|

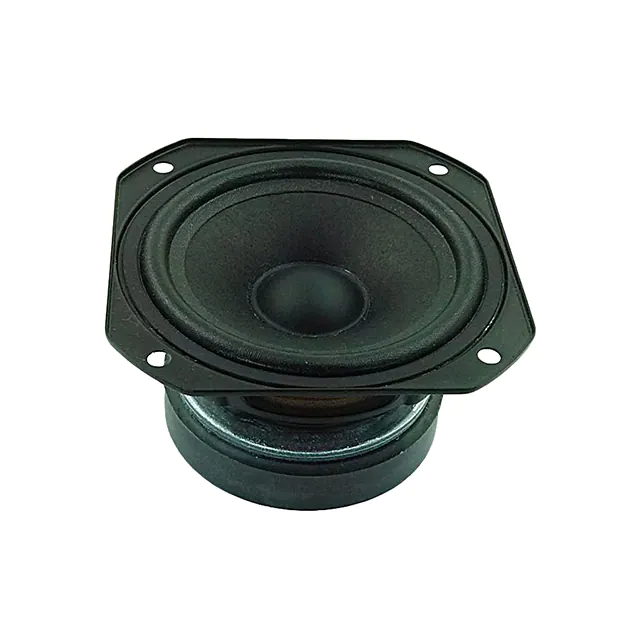

TC9FD00-04SPEAKR 3.84OHM 25W TOP PT 87.1DB |
969 |
|
Veri Sayfası |
TC | Bulk | Active | Magnetic | Full Range | 175 Hz ~ 10 kHz | 174.64Hz | 3.84 Ohms | 87.10 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.307" L x 3.307" W (84.00mm x 84.00mm) | 1.996" (50.70mm) |
|

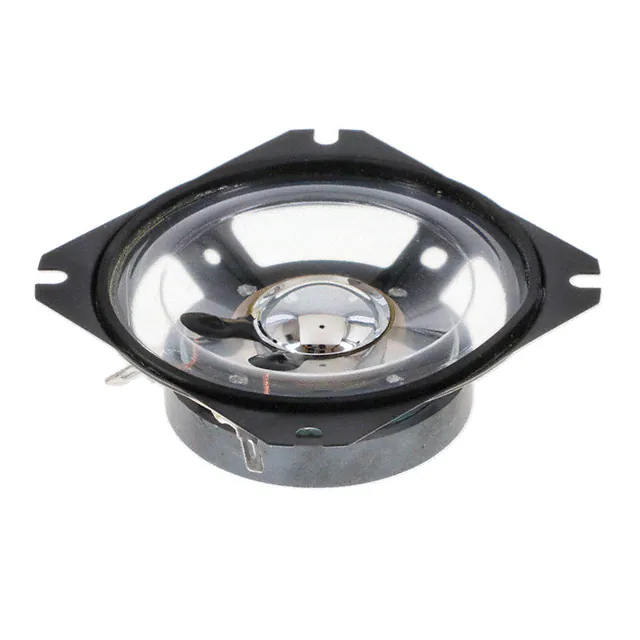

SW870508-1SPEAKER 8OHM 10W TOP PORT 96DB |
405 |
|
Veri Sayfası |
SW | Tray | Active | Magnetic | General Purpose | 390 Hz ~ 7 kHz | 390Hz | 8 Ohms | 96.00 | 1W/100mm | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round, Square Frame | Polyethylenimine (PEI) | - | Waterproof | - | Quick Connect | 3.425" L x 3.425" W (87.00mm x 87.00mm) | 1.260" (32.00mm) |
|
BF 45 - 8 OHMSPEAKER 8OHM 4W TOP PORT 79DB |
111 |
|
Veri Sayfası |
Miniature Speaker | Bulk | Active | - | General Purpose | 90 Hz ~ 20 kHz | 160Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round | Aluminum (AI) | - | - | - | Quick Connect | 2.402" Dia (61.00mm) | 1.024" (26.00mm) |
|
AS06004PS-RSPEAKER 4OHM 10W TOP PORT 99DB |
231 |
|
Veri Sayfası |
AS | Bulk | Active | Magnetic | General Purpose | 160 Hz ~ 18 kHz | 160Hz | 4 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | IEC 60601-1-8 | Solder Eyelet(s) | 2.630" L x 2.630" W (66.80mm x 66.80mm) | 1.043" (26.50mm) |
|

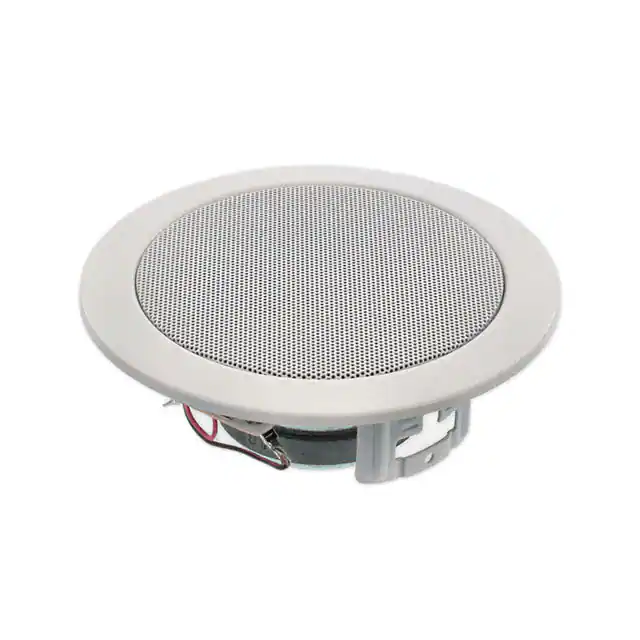

DL 10 - 8 OHMSPEAKER 8OHM 20W TOP PORT 90DB |
196 |
|
Veri Sayfası |
- | Bulk | Active | Magnetic | General Purpose | 75 Hz ~ 20 kHz | 140Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round | - | - | IP54 | - | Wire Leads | 5.315" Dia (135.00mm) | 1.693" (43.00mm) |
|

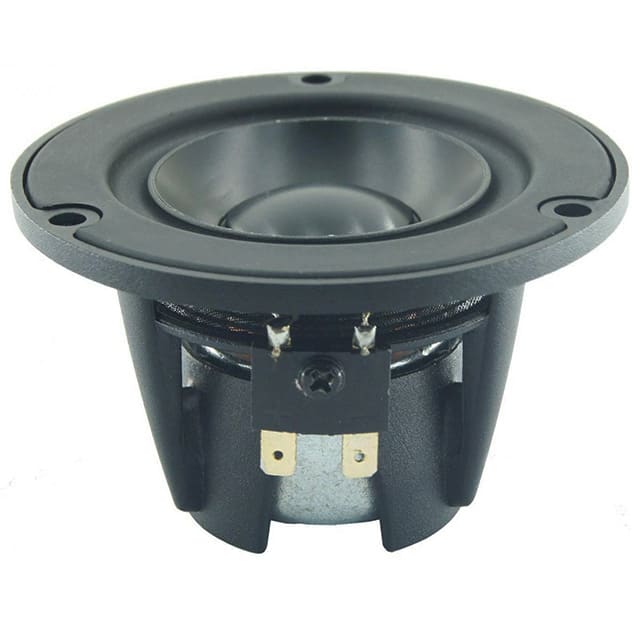

NE85W-04SPEAKR 4.13OHM 25W TOP PT 81.9DB |
690 |
|
Veri Sayfası |
NE | Bulk | Active | Magnetic | Tweeter | 100 Hz ~ 20 kHz | 104.94Hz | 4.13 Ohms | 81.90 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round | Aluminum (AI) | Nd-Fe-B | - | - | Solder Eyelet(s) | 3.347" Dia (85.01mm) | 2.032" (51.60mm) |
|
EX 60 S - 4 OHMSPEAKER 4OHM TOP PORT |
83 |
|
Veri Sayfası |
- | Bulk | Active | - | Exciter | - | - | 4 Ohms | - | - | - | - | 25 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 2.283" L x 2.283" W (58.00mm x 58.00mm) | 0.827" (21.00mm) |
|
SM131108-1SPEAKER 8OHM 200MW TOP PORT 85DB |
1,178 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 5 kHz | 1.1kHz | 8 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.512" Dia (13.00mm) | 0.110" (2.80mm) |
|
SM150908-2SPEAKER 8OHM 500MW TOP PORT 85DB |
1,126 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 920 Hz ~ 5 kHz | - | 8 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.591" Dia (15.00mm) | 0.110" (2.80mm) |
|
SM171008-1SPEAKER 8OHM 500MW TOP PORT 88DB |
987 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 1 kHz ~ 5 kHz | 1kHz | 8 Ohms | 88.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.669" Dia (17.00mm) | 0.146" (3.70mm) |
|

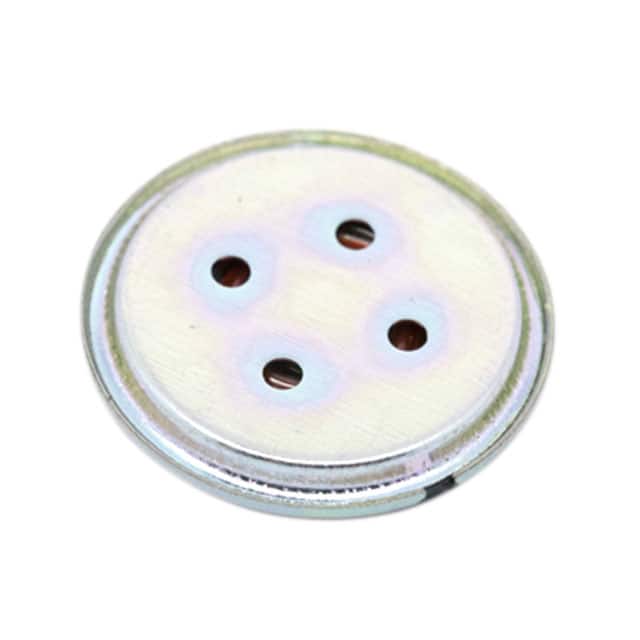

SM200707-1SPEAKER 7OHM 200MW TOP PORT 87DB |
994 |
|
Veri Sayfası |
- | Tray | Active | Magnetic | General Purpose | 780 Hz ~ 5 kHz | 780Hz | 7 Ohms | 87.00 | 100mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyethylenimine (PEI) | - | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.150" (3.80mm) |
|

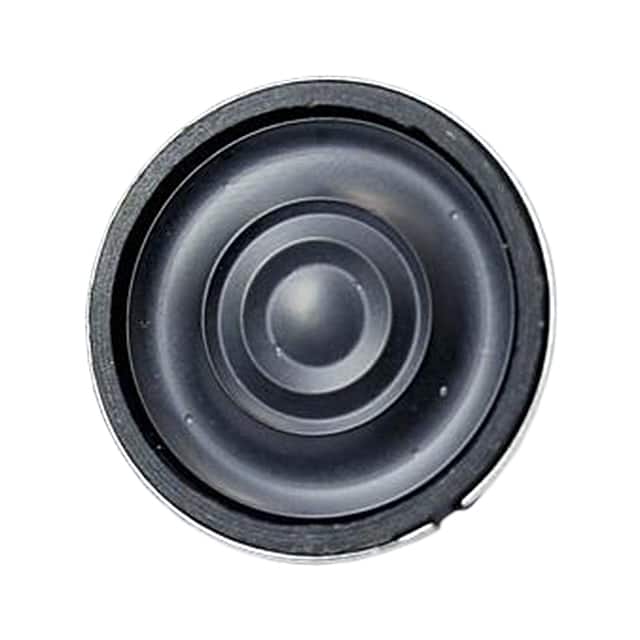

SP-2003-7SPEAKER 8OHM 800MW TOP PORT 86DB |
174 |
|
Veri Sayfası |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1.1kHz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.130" (3.30mm) |
