Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS-551QBUZZER PIEZO 12V 54.3MM BRACKET |
25 |
|
Veri Sayfası |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.8kHz | Piezo | Pulse, Slow | 1.2 PPS | 105dB @ 12V, 100cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.138" Dia (54.30mm) | 1.622" (41.02mm) |
|

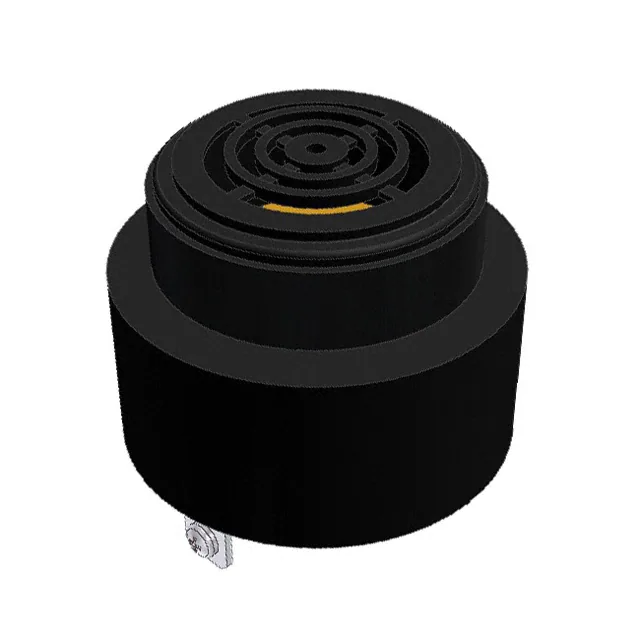

AI-4219-P-C28-RBUZZER PIEZO 12V 42.5MM PNL MNT |
14 |
|
Veri Sayfası |
AI | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 1.9kHz | Piezo | Single Tone | - | 81dB @ 12V, 10cm | 8mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.299" (33.00mm) |
|
AT-5030-TF-2-LW100-RBUZZER PIEZO 24V 30MM FLANGE |
38 |
|
Veri Sayfası |
AT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 24 V | - | 3kHz | Piezo | Single Tone | - | 106dB @ 24V, 30cm | 12mA | Top | -20°C ~ 80°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) | 0.728" (18.50mm) |
|
MSS5GLBUZZER MAGN 5V 23X23MM TH |
23 |
|
Veri Sayfası |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 150Hz ~ 4kHz | Magnetic | - | Repeating every 30 Sec | 85dB @ 5V, 10cm | 200mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.539" (13.70mm) |
|
PB-32N10W-12KBUZZER MAGNETIC 31.7MM FLANGE |
11 |
|
Veri Sayfası |
PB | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 18V | 1.12kHz | Magnetic | Ding Dong | - | 75dB @ 6V, 30cm | 90 ~ 155mA | Top | -20°C ~ 55°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.248" Dia (31.70mm) | 0.988" (25.10mm) |
|

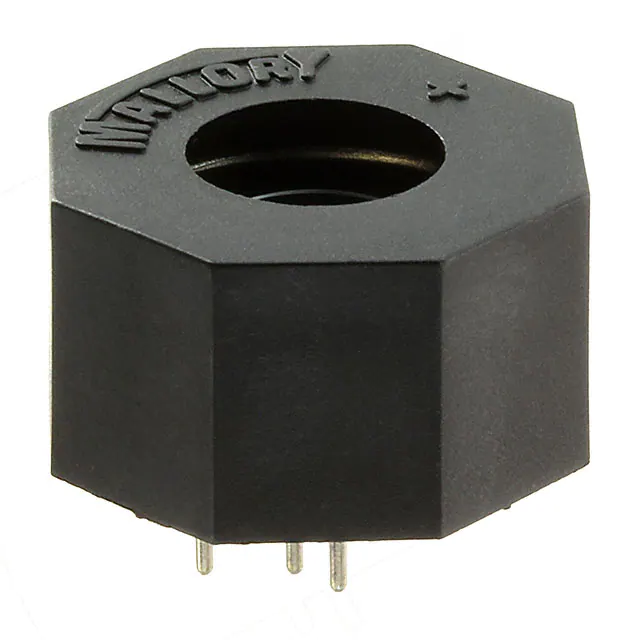

MSS5MMPBUZZER MAGN 5V 23X23MM TH |
69 |
|
Veri Sayfası |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 46 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | - |
|
SBT12M1PCBUZZER PIEZO 44.5MM TH |
21 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) | 0.551" (14.00mm) |
|
SNP428BUZZER PIEZO 41.66MM PNL MNT |
39 |
|
Veri Sayfası |
SNP | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 64dB @ 4V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.125" (3.20mm) | 1.640" Dia (41.66mm) | 0.907" (23.03mm) |
|
MSS5MMEBUZZER MAGN 5V 23X23MM TH |
67 |
|
Veri Sayfası |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | - |
|

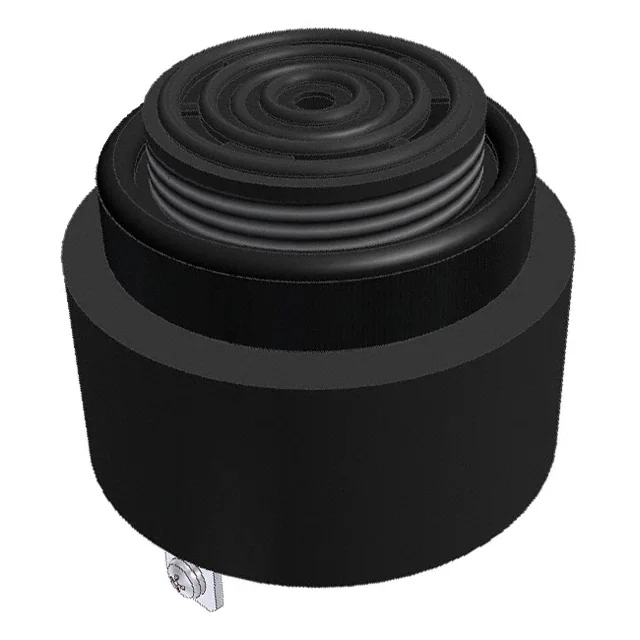

AI-4328-P-FP250-RBUZZER PIEZO 220V 42.5MM PNL MNT |
19 |
|
Veri Sayfası |
AI | Bulk | Active | Indicator, Internally Driven | AC, DC | 220 V | 60 ~ 250V | 2.8kHz | Piezo | Pulse, Fast | 3 PPS | 91dB @ 220V, 10cm | 16mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.319" (33.50mm) |
|
|
SC628-BTRBUZZER PIEZO 42.98MM PNL MNT |
39 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 3 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
SC416RBUZZER PIEZO 42.85MM PNL MNT |
6 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 4V, 61cm | 4 ~ 14mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|
|
SC105RBUZZER PIEZO 42.85MM PNL MNT |
17 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 60dB @ 1V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
|
MSS5MMCBUZZER MAGN 5V 23X23MM TH |
10 |
|
Veri Sayfası |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | - |
|
SCE028MD3CTBBUZZER PIEZO 42.85MM PNL MNT |
93 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|

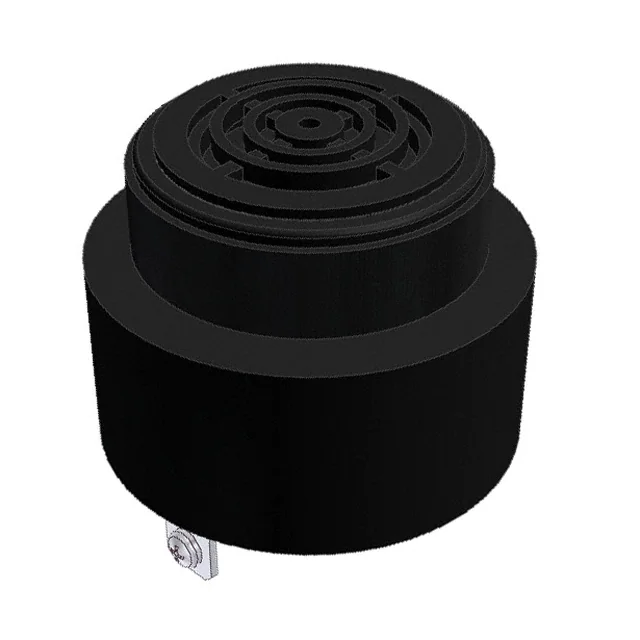

AI-4228-P-SP120-RBUZZER PIEZO 110V 42.5MM PNL MNT |
27 |
|
Veri Sayfası |
AI | Bulk | Active | Indicator, Internally Driven | AC, DC | 110 V | 30 ~ 120V | 2.8kHz | Piezo | Pulse, Slow | 1 PPS | 92dB @ 110V, 10cm | 20mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.299" (33.00mm) |
|
AI-4228-P-FP28D-RBUZZER PIEZO 12V 42.5MM PNL MNT |
8 |
|
Veri Sayfası |
AI | Bulk | Active | Indicator, Internally Driven | AC, DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Pulse, Fast | 3 PPS | 90dB @ 12V, 10cm | 10mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.299" (33.00mm) |
|
|
SC616NPRBUZZER PIEZO 42.85MM PNL MNT |
46 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SC628LRBUZZER PIEZO 42.98MM PNL MNT |
78 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 4 ~ 18mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Wire Leads | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
MSS5GMHCTBUZZER MAGN 5V 23X23MM TH |
11 |
|
Veri Sayfası |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 150Hz ~ 4kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 20 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.539" (13.70mm) |
