Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSC250NBUZZER PIEZO 42.85MM PNL MNT |
3 |
|
Veri Sayfası |
LSC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 82dB @ 60V, 61cm | 42 ~ 61mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|

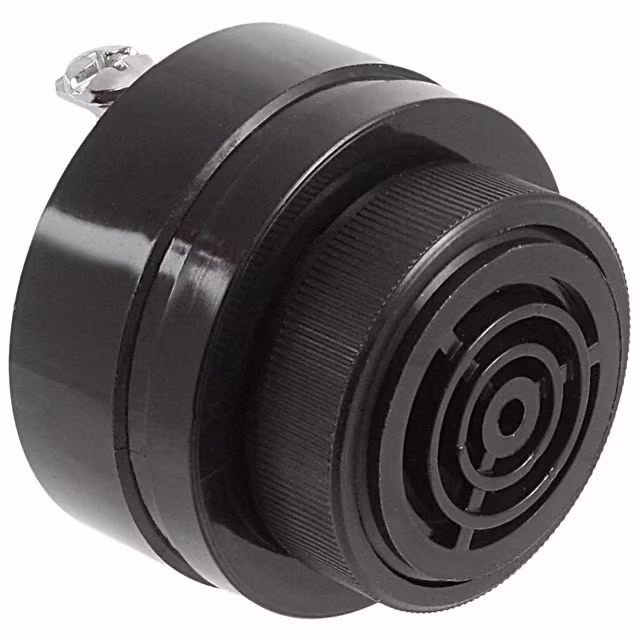

SC628CPNRBUZZER PIEZO 42.98MM PNL MNT |
21 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Chime | - | 84dB @ 6V, 61cm | 6 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
M2BJ-B24-DBUZZER PIEZO 0.9X 0.7 PNL MNT |
11 |
|
Veri Sayfası |
M2BJ | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 2kHz | Piezo | Pulse | 190 BPM | 80dB @ 12V, 100cm | 7mA | Top | -10°C ~ 55°C | - | - | - | Panel Mount | Connector | 0.945" L x 0.709" W (24.00mm x 18.00mm) | 1.496" (38.00mm) |
|
|
M2BJ-BH24EBUZZER PIEZO 26X20MM PNL MNT |
12 |
|
Veri Sayfası |
M2BJ | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 12 ~ 24V | 3kHz | Piezo | Pin Selectable | Variable | 70dB @ 12V, 100cm | 50 ~ 100mA | Top | -10°C ~ 55°C | - | - | - | Panel Mount | Connector | 1.024" L x 0.787" W (26.00mm x 20.00mm) | 1.752" (44.50mm) |
|
SC110MBUZZER PIEZO 42.85MM PNL MNT |
2 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 71dB @ 30V, 61cm | 4 ~ 18mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
SC628MPBUZZER PIEZO 42.98MM PNL MNT |
10 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 70dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
|
14095050BUZZER MULTI SOUNDER 9-28V |
2 |
|
Veri Sayfası |
- | Box | Active | - | - | - | 9 ~ 28V | - | - | Multiple Tone | - | - | - | - | -40°C ~ 70°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
ZT028LAIC3RBUZZER PIEZO 24V 30.74MM PNL MNT |
2 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Red | Pulse, Slow, Visual Indicator | 1 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
3SU12006KB101AA0BUZZER 24V 40X30MM PNL MNT |
4 |
|
Veri Sayfası |
3SU1 | Bulk | Active | - | AC, DC | 24 V | - | 2.4kHz | - | Single Tone | - | 80dB @ 24V, 10cm | 28mA | Side | -25°C ~ 70°C | - | - | IP20, IP40 | Panel Mount | Screw Terminals | 1.575" L x 1.181" W (40.00mm x 30.00mm) | 2.461" (62.50mm) |
|

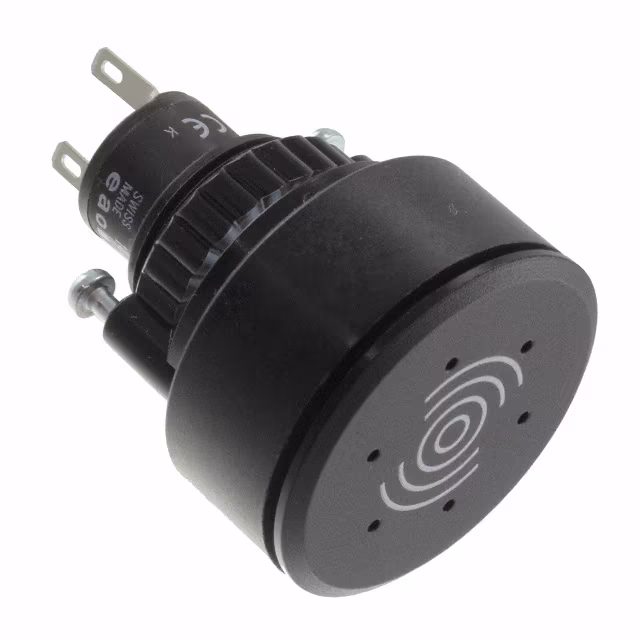

14-810.910BUZZER PIEZO 24V 35MM TH |
7 |
|
Veri Sayfası |
14 | Bulk | Active | Indicator, Internally Driven | DC | - | - | - | - | - | - | - | - | Top | - | CE | - | IP40 | Through Hole | Solder Tabs | 1.378" Dia (35.00mm) | - |
|
|
ZT028LAIC1RBUZZER PIEZO 24V 30.74MM PNL MNT |
2 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
M2BJ-BH24D-DBUZZER PIEZO 26X20MM PNL MNT |
2 |
|
Veri Sayfası |
M2BJ | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 3kHz | Piezo | Pin Selectable | Variable | 70dB @ 12V, 100cm | 50mA | Top | -10°C ~ 55°C | - | - | - | Panel Mount | Connector | 1.024" L x 0.787" W (26.00mm x 20.00mm) | 1.752" (44.50mm) |
|
16170070BUZZER MIDI SOUNDER 12-24V |
4 |
|
Veri Sayfası |
- | Box | Active | - | - | - | 12 ~ 24V | - | - | Siren, Multiple Tone | - | - | - | - | -30°C ~ 60°C | - | - | IP66 - Dust Tight, Water Resistant | - | Spring Terminal | - | - |
|
SCH628NRBUZZER PIEZO 42.85MM PNL MNT |
20 |
|
Veri Sayfası |
SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 86dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
19000055BUZZER 24V |
11 |
|
Veri Sayfası |
- | Box | Active | - | - | 24 V | - | - | - | Multiple Tone | - | - | - | - | -30°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
13900055BUZZER MULTI SOUNDER 9-60V |
3 |
|
Veri Sayfası |
- | Box | Active | - | - | - | 9 ~ 60V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 70°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
SCH628ANPRBUZZER PIEZO 42.85MM PNL MNT |
3 |
|
Veri Sayfası |
SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 88dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
GT-0901ABUZZER MAGNETIC 1.5V 9MM TH |
227 |
|
Veri Sayfası |
GT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.73kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 80mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.189" (4.80mm) |
|
PT-1403-3BUZZER PIEZO 9V 14MM CUSTOM |
93 |
|
Veri Sayfası |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 2 ~ 30V | 5.2kHz | Piezo | Single Tone | - | 80dB @ 9V, 10cm | 3mA | Top | -20°C ~ 60°C | - | - | - | Custom | Wire Leads | 0.551" Dia (14.00mm) | 0.132" (3.35mm) |
|
WT-1614TBUZZER MAGNETIC 12V 15.8MM TH |
77 |
|
Veri Sayfası |
WT | Tray | Active | Transducer, Externally Driven | - | 12 V | 8 ~ 15V | 2.048kHz | Magnetic | - | - | - | 40mA | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.622" Dia (15.80mm) | 0.551" (14.00mm) |
