Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

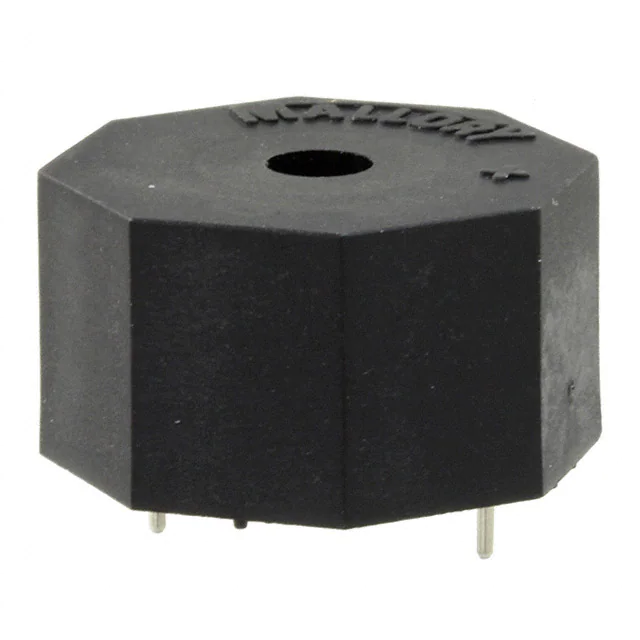

MSE14LSN3BUZZER PIEZO 23X23MM TH |
22 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 4kHz | Piezo | Siren, Fast | 7 SPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.535" (13.60mm) |
|
SBT5LMMXPCBUZZER PIEZO 44.5MM TH |
76 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) | 0.551" (14.00mm) |
|
|
PS-520QBUZZER PIEZO 12V 57.5X44.5 BRKT |
93 |
|
Veri Sayfası |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 3kHz | Piezo | Single Tone | - | 105dB @ 12V, 100cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.263" L x 1.752" W (57.50mm x 44.50mm) | 1.594" (40.50mm) |
|
IP521512-1BUZZER PIEZO 12V 52MM FLANGE |
35 |
|
Veri Sayfası |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 15V | 4kHz | Piezo | Siren | - | 125dB @ 12V, 10cm | 280mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 2.047" Dia (52.00mm) | 1.969" (50.00mm) |
|

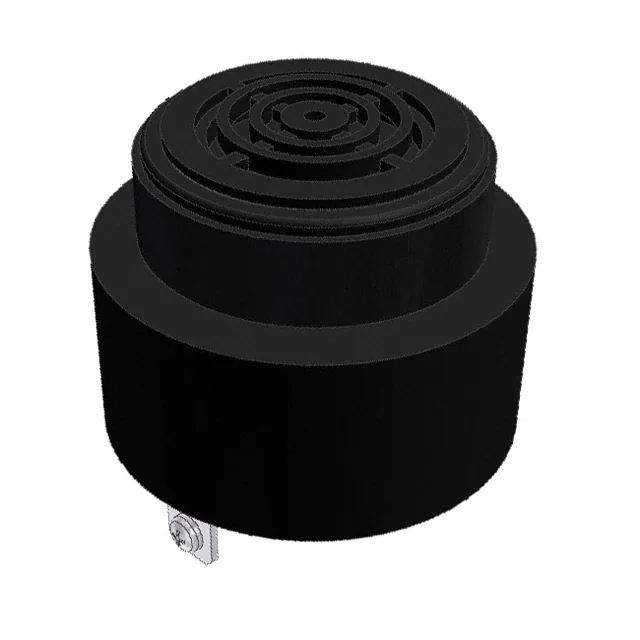

AI-4228-P-C120-RBUZZER PIEZO 110V 42.5MM PNL MNT |
40 |
|
Veri Sayfası |
AI | Bulk | Active | Indicator, Internally Driven | AC, DC | 110 V | 30 ~ 120V | 2.8kHz | Piezo | Single Tone | - | 92dB @ 110V, 10cm | 20mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.299" (33.00mm) |
|
|
SCE016XD3DB2SBUZZER PIEZO 42.85MM PNL MNT |
10 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
SC616PRBUZZER PIEZO 42.85MM PNL MNT |
27 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 6V, 61cm | 2 ~ 9mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SBT12M0FLBUZZER PIEZO 44.5MM FLANGE |
41 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Single Tone | - | 85dB @ 9V, 10cm | 25mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.752" Dia (44.50mm) | 0.551" (14.00mm) |
|

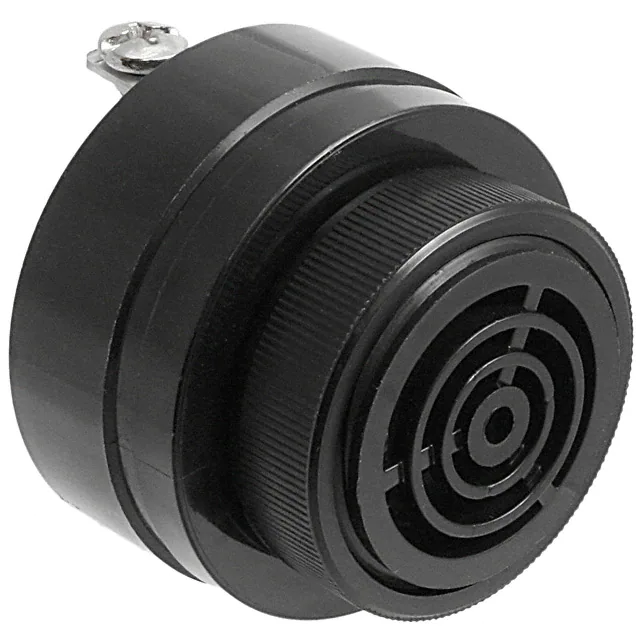

SC628DJRBUZZER PIEZO 42.98MM PNL MNT |
14 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 60dB @ 6V, 61cm | 5 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
SC628AJRBUZZER PIEZO 42.98MM PNL MNT |
30 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
SBT5LM0FLBUZZER PIEZO 44.5MM FLANGE |
24 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Single Tone | - | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.752" Dia (44.50mm) | 0.551" (14.00mm) |
|
SBT5LMMEPCBUZZER PIEZO 44.5MM TH |
10 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) | 0.551" (14.00mm) |
|
SC648AJRBUZZER PIEZO 42.98MM PNL MNT |
22 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 10V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
SC628APRBUZZER PIEZO 42.98MM PNL MNT |
11 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 7.5V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
1.30.249.001/0000BUZZER PIEZO 24V 22.3MM CUSTOM |
4 |
|
Veri Sayfası |
RAFIX 22 QR | Bulk | Active | Indicator, Internally Driven | DC | 24 V | - | 2.75kHz | Piezo | Pulse | - | 70dB @ 24V, 100cm | 25mA | Top | - | - | - | IP65 - Dust Tight, Water Resistant | Custom | Connector | 0.878" Dia (22.30mm) | 0.386" (9.80mm) |
|
ZT028LACTRBUZZER PIEZO 30.74MM PNL MNT |
5 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
ZT028LDCTR30BUZZER PIEZO 30.74MM PNL MNT |
9 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | 30 Sec On-Time | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
SC628ANPRBUZZER PIEZO 42.98MM PNL MNT |
14 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 9 PPS | 80dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
XVS10MMWBUZZER 230V153.2MMX114MMBLACK |
2 |
|
Veri Sayfası |
Harmony XVS | Box | Active | - | AC | 230 V | - | - | - | Siren | - | - | 40mA | User Defined | -30°C ~ 50°C | CE | - | IP53 | Bracket Mount | - | 6.031" L x 4.488" W (153.20mm x 114.00mm) | 4.488" (114.00mm) |
|
19000067BUZZER 115V |
4 |
|
Veri Sayfası |
- | Box | Active | - | - | 115 V | - | - | - | Multiple Tone | - | - | - | - | -30°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
