Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

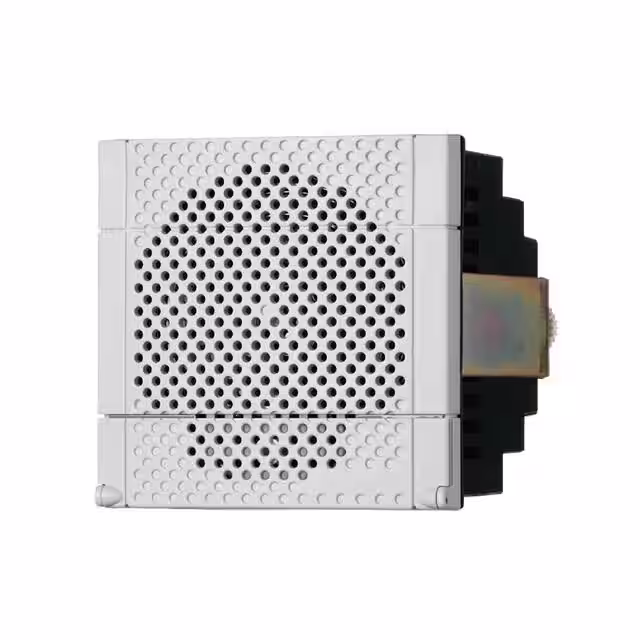

XVS72BMWNBUZZER 24V 69.3MMX72MM DIN RAIL |
2 |
|
Veri Sayfası |
Harmony XVS | Box | Active | - | DC | 24 V | - | - | - | - | - | - | 125mA | User Defined | -10°C ~ 50°C | CE, UR | - | IP54 - Dust Protected, Water Resistant | DIN Rail | - | 2.728" L x 2.835" W (69.30mm x 72.00mm) | 2.835" (72.00mm) |
|
XVS14MMWBUZZER 240V 223MMX140MM WBLACK |
2 |
|
Veri Sayfası |
Harmony XVS | Box | Active | - | DC | 240 V | - | - | - | Siren | - | - | 50mA | User Defined | -10°C ~ 50°C | CE, UL | - | IP53 | Bracket Mount | - | 8.780" L x 5.512" W (223.00mm x 140.00mm) | 4.488" (114.00mm) |
|
12905268BUZZER 230V |
2 |
|
Veri Sayfası |
- | Box | Active | - | - | 230 V | - | - | - | Siren, Multiple Tone | - | - | - | - | -40°C ~ 55°C | - | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Screw Terminal | - | - |
|
RDT-4.000-2272-NS27.2mm Piezo Transducer |
957 |
|
Veri Sayfası |
RDT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 25V | 4kHz | Piezo | - | - | 90dB @ 12V, 10cm | 12mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.870" Dia (22.10mm) | 0.295" (7.50mm) |
|
|
RDT-4.000-2272-NS122mm OD x 7.2mm Piezo Transducer |
833 |
|
Veri Sayfası |
RDT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 30V | 4kHz | Piezo | - | - | 80dB @ 3V, 10cm | 3mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.870" Dia (22.10mm) | 0.295" (7.50mm) |
|
|
RDT-4.000-1206-NS112.6 OD x 6mm Piezo Transducer |
961 |
|
Veri Sayfası |
RDT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 25V | 4kHz | Piezo | - | - | 75dB @ 3V, 10cm | 3mA | Top | -20°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.496" Dia (12.60mm) | 0.295" (7.50mm) |
|
AT-1224-TWT-5V-RBUZZER MAGNETIC 5V 12MM TH |
194 |
|
Veri Sayfası |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 3 ~ 7V | 2.4kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 50mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.386" (9.80mm) |
|
|
CMI-0955-05TH9MMX5.5MM 5 V, 85 DB, THROUGH H |
910 |
|
Veri Sayfası |
CMI | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.7kHz | Magnetic | Single Tone | - | 80dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.362" Dia (9.20mm) | 0.224" (5.70mm) |
|
|
CMI-1295-03TH12MMX9.5MM 3 V, 85 DB, THROUGH |
994 |
|
Veri Sayfası |
CMI | Tray | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 5V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 110mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.394" (10.00mm) |
|
|
CMI-1275-05TH12MMX7.5MM 5 V, 85 DB, THROUGH |
990 |
|
Veri Sayfası |
CMI | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 110mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.315" (8.00mm) |
|
|
CMI-0955-03TH9MMX5.5MM 3 V, 80 DB, THROUGH H |
980 |
|
Veri Sayfası |
CMI | Tray | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 5V | 2.7kHz | Magnetic | Single Tone | - | 80dB @ 3V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.362" Dia (9.20mm) | 0.224" (5.70mm) |
|
|
CMI-1275-03TH12MMX7.5MM 3 V, 85 DB, THROUGH |
830 |
|
Veri Sayfası |
CMI | Tray | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 5V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.315" (8.00mm) |
|
|
CMI-1295-05TH12MMX9.5MM 5 V, 85 DB, THROUGH |
775 |
|
Veri Sayfası |
CMI | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.394" (10.00mm) |
|
|
RDT-4.000-1616-NS1BUZZER PIEZO 3V16X16MM SMD |
800 |
|
Veri Sayfası |
RDT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 25V | 4kHz | Piezo | - | - | 75dB @ 3V, 10cm | 3mA | Side | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.110" (2.80mm) |
|
|
RDTE-2.700-8585-NS3BUZZER MAGNETIC 3.6V 0.3X0.3 SMD |
1,000 |
|
Veri Sayfası |
RDTE | Tape & Reel (TR) | Active | Transducer, Externally Driven | DC | 3.6 V | 2 ~ 5V | 2.7kHz | Magnetic | - | - | 85dB @ 3.6V, 10cm | 100mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.177" (4.50mm) |
|
|
RDTE-2.700-8080-NS1BUZZER MAGN 3.6V 0.315X 0.315SMD |
1,000 |
|
Veri Sayfası |
RDTE | Tape & Reel (TR) | Active | Transducer, Externally Driven | DC | 3.6 V | 2 ~ 5V | 2.7kHz | Magnetic | - | - | 75dB @ 3.6V, 10cm | 100mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.106" (2.70mm) |
|
|
RDTE-4.000-5050-NS1BUZZER MAGN 3V 5MMX5MMSMD |
1,000 |
|
Veri Sayfası |
RDTE | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Magnetic | - | - | 75dB @ 3V, 10cm | 110mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
SMT-1324-TW-5V-RBUZZER MAGNETIC 5V 12.5X12.5 SMD |
50 |
|
Veri Sayfası |
SMT | Tube | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 4 ~ 8V | 2.4kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 40mA | Top | -20°C ~ 85°C | - | Washable | - | Surface Mount | Solder Pads | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.283" (7.20mm) |
|
|
AI-3331-TF-LW100-RPIEZO INDICATOR 33MM 12VDC 3100H |
98 |
|
Veri Sayfası |
AI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 3.1kHz | Piezo | Single Tone | - | 100dB @ 12V, 10cm | 20mA | Top | -20°C ~ 85°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.299" Dia (33.00mm) | 0.783" (19.90mm) |
|
|
PK-27H35WQ3-20DC 90-110DB 3500HZ CONT 30X1 |
26 |
|
Veri Sayfası |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 3.5kHz | Piezo | Single Tone | - | 100dB @ 12V, 30cm | 20mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | Wire Leads | 1.181" Dia (30.00mm) | 0.638" (16.20mm) |
