Reed Röleleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

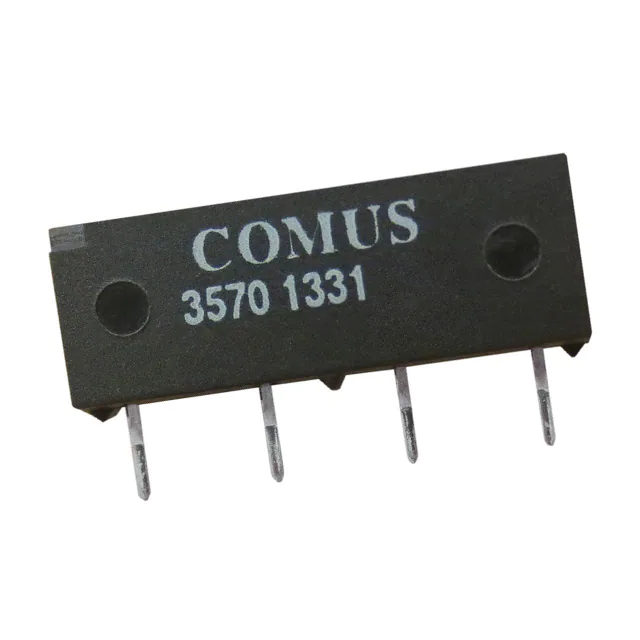

3570-1331-051RELAY REED SIP SPST .5A 5V |
12,923 |
|
Veri Sayfası |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
3570-1331-053RELAY REED SIP SPST .5A 5V W/DIO |
9,201 |
|
Veri Sayfası |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
3570-1331-121RELAY REED SIP SPST .5A 12V |
6,058 |
|
Veri Sayfası |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.5 ms | -40°C ~ 85°C | - |
|

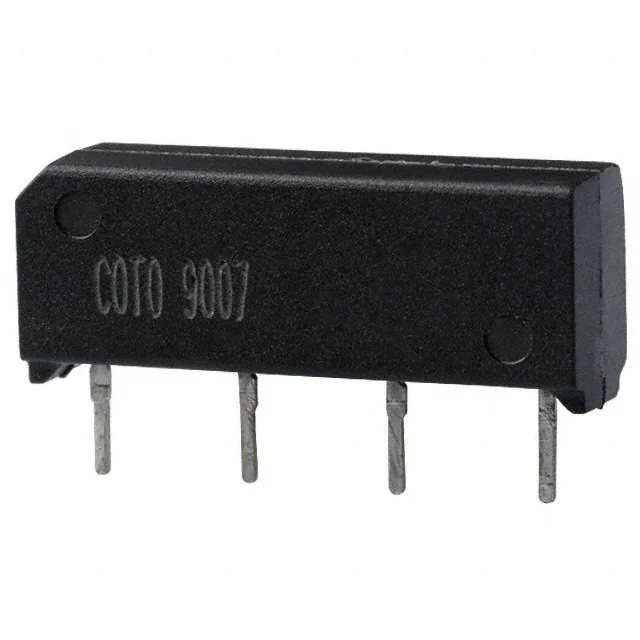

9007-12-00RELAY REED SPST 500MA 12V |
46,024 |
|
Veri Sayfası |
9007, Spartan | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
3570-1331-123RELAY REED SIP SPST .5A 12V W/DI |
2,154 |
|
Veri Sayfası |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.5 ms | -40°C ~ 85°C | - |
|
9007-05-01RELAY REED SPST 500MA 5V |
19,943 |
|
Veri Sayfası |
9007, Spartan | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9007-05-00RELAY REED SPST 500MA 5V |
46,657 |
|
Veri Sayfası |
9007, Spartan | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|

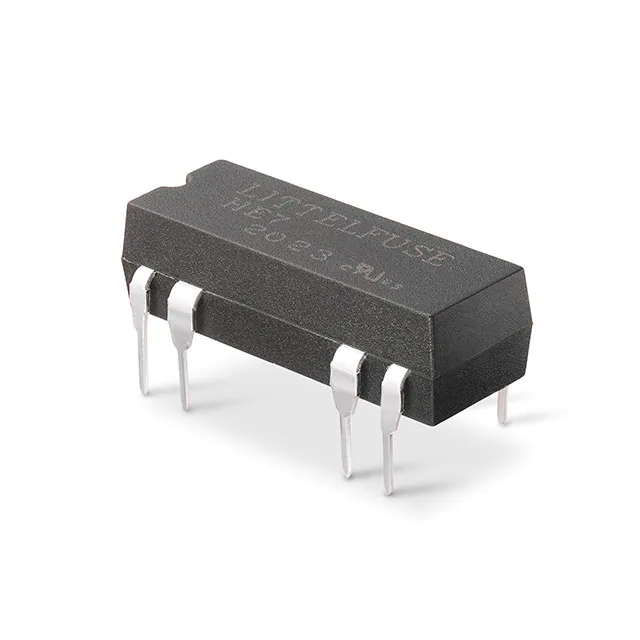

HE721A1200RELAY REED SPST 500MA 12V |
8,481 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|

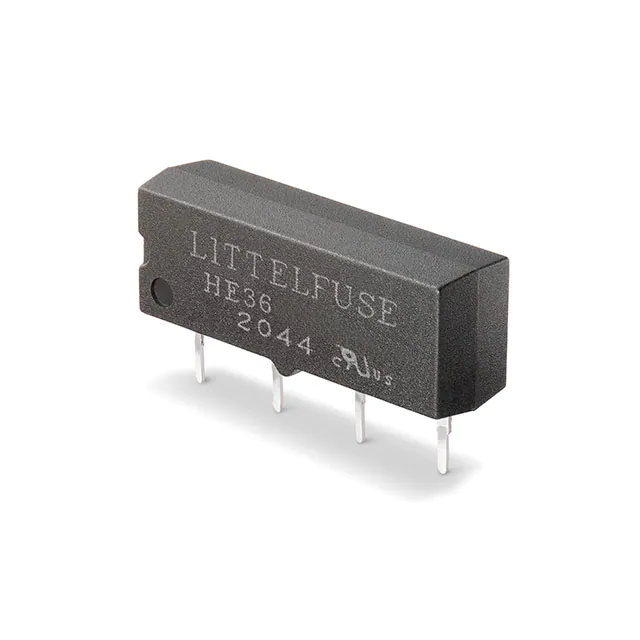

HE3621A0500RELAY REED SPST 500MA 5V |
20,050 |
|
Veri Sayfası |
HE3600 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE751A0510RELAY REED SPST 500MA 5V |
6,465 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 300VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
HE721A0510RELAY REED SPST 500MA 5V |
10,960 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|

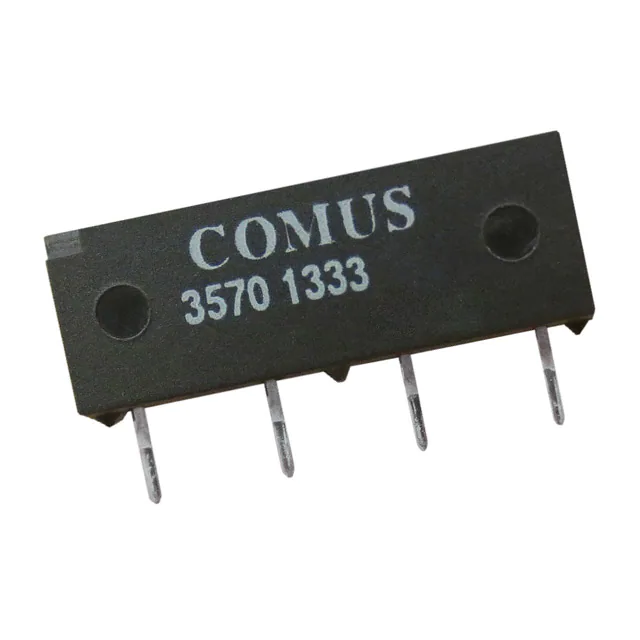

3570-1333-051RELAY REED SIP SPST .5A 5V |
3,073 |
|
Veri Sayfası |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
|
HE3621A1210RELAY REED SPST 500MA 12V |
7,901 |
|
Veri Sayfası |
HE3600 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE751A1210RELAY REED SPST 500MA 12V |
7,211 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 300VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|

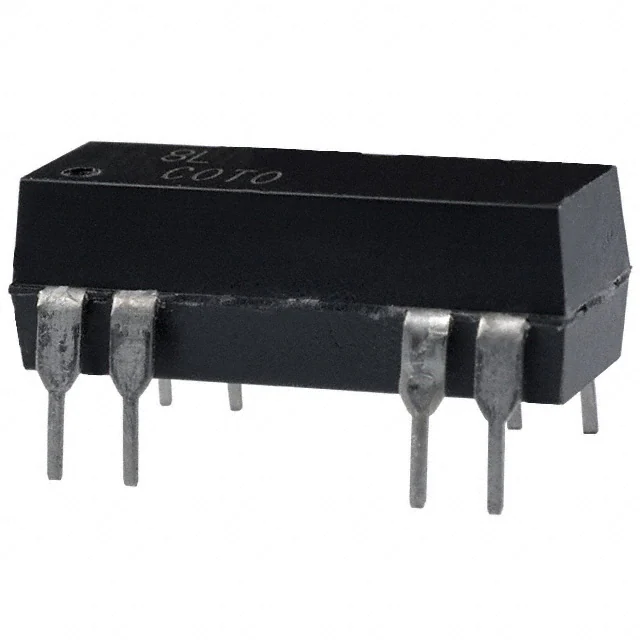

8L01-05-001RELAY REED SPST 500MA 5V |
2,722 |
|
Veri Sayfası |
8L | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
HE3621A0510RELAY REED SPST 500MA 5V |
6,471 |
|
Veri Sayfası |
HE3600 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|

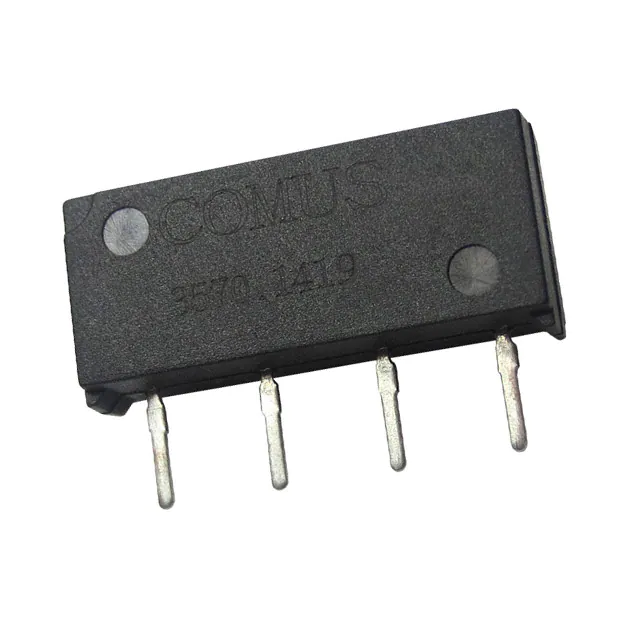

3570-1419-054RELAY REED SIP SPST 1A 5V W/EMI |
70,592 |
|
Veri Sayfası |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
|
3570-1419-051RELAY REED SIP SPST 1A 5V |
1,522 |
|
Veri Sayfası |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|

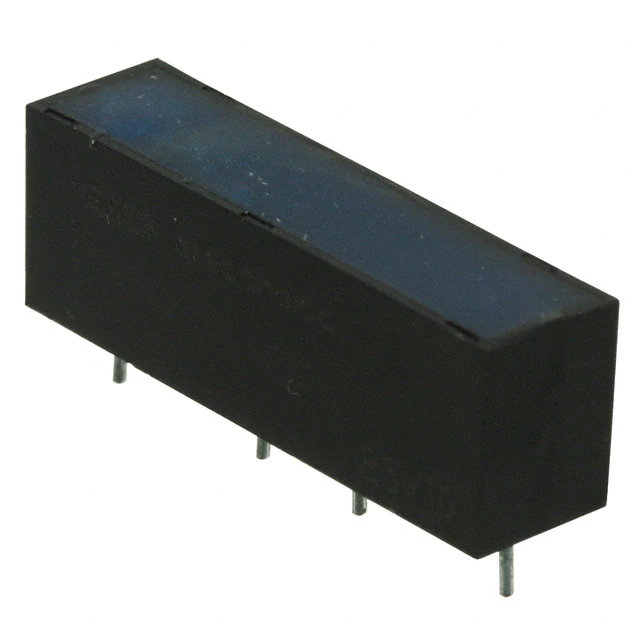

SIL05-1A72-71LRELAY REED SPST 0.5A 5V |
1,292 |
|
Veri Sayfası |
SIL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
HE722A2410RELAY REED DPST 500MA 24V |
9,392 |
|
Veri Sayfası |
HE700 | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
